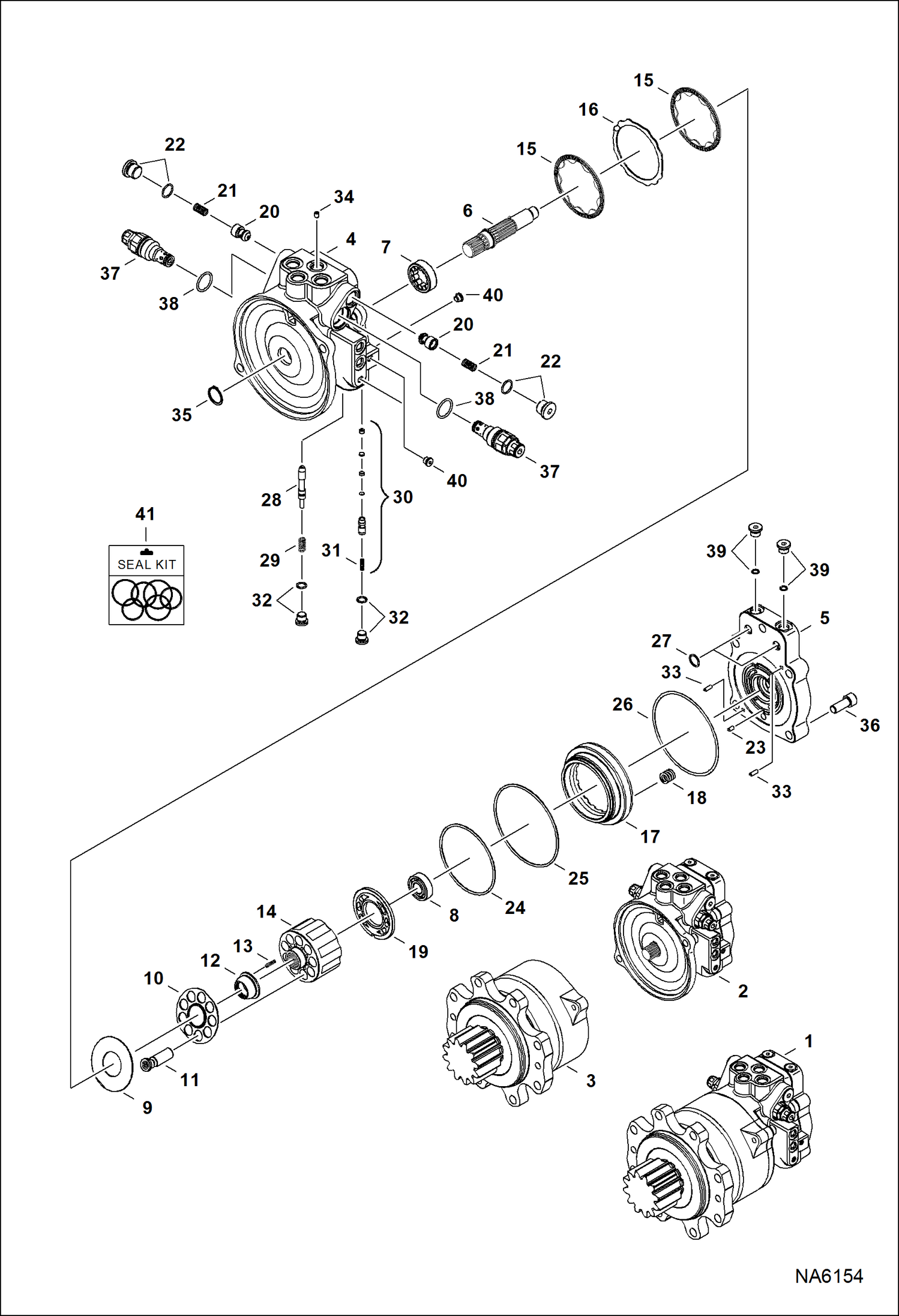

Запчасти Bobcat E55 SLEW MOTOR (Motor) HYDRAULIC SYSTEM

1

7020242

MOTOR, SLEW Ref. 2-40

2

MOTOR, HYD SLEW NSS - Order Ref. 1

3

CARRIER See Illustration SLEW MOTOR/ NA2723 - NSS - Order Ref. 1

4

HOUSING NSS - Order Ref. 1

5

7022119

HOUSING, VALVE Was 7019215 - A

6

7019216

SHAFT, DRIVE

7

7019217

BEARING, ROLLER

8

7019218

BEARING, BALL

9

7019219

PLATE, SHOE

10

7019220

PLATE, RETAINER

11

7019214

PISTON, ASSY

12

7019221

BUSHING

13

7019222

SPRING

14

7019223

BLOCK, CYL

15

7019224

PLATE, FRICTION

16

7019225

PLATE

17

7019226

PISTON, BRAKE

18

7019227

SPRING

19

7019228

PLATE, VALVE

20

7019229

PLUNGER

21

7019230

SPRING, CHECK VALVE

22

7019231

PLUG

23

7019232

PIN, SPRING

24

7019233

O-RING

25

7019234

O-RING

26

7019235

O-RING

27

7009881

ORING

28

7019237

SPOOL, VALVE

29

7019238

SPRING

30

7019239

PLUNGER

31

7019240

SPRING

32

7019241

PLUG

33

7022121

PIN, STRAIGHT

34

7019243

ORIFICE

35

7019244

RING, SNAP

36

7019245

BOLT

37

7019246

VALVE, RELIEF

38

7019247

O-RING

39

7019242

PLUG

40

7022120

PLUG

41

7019213

KIT, SEAL Ref. 24-27 & 38 on this page and Ref. 2 & 9 on NA2723
