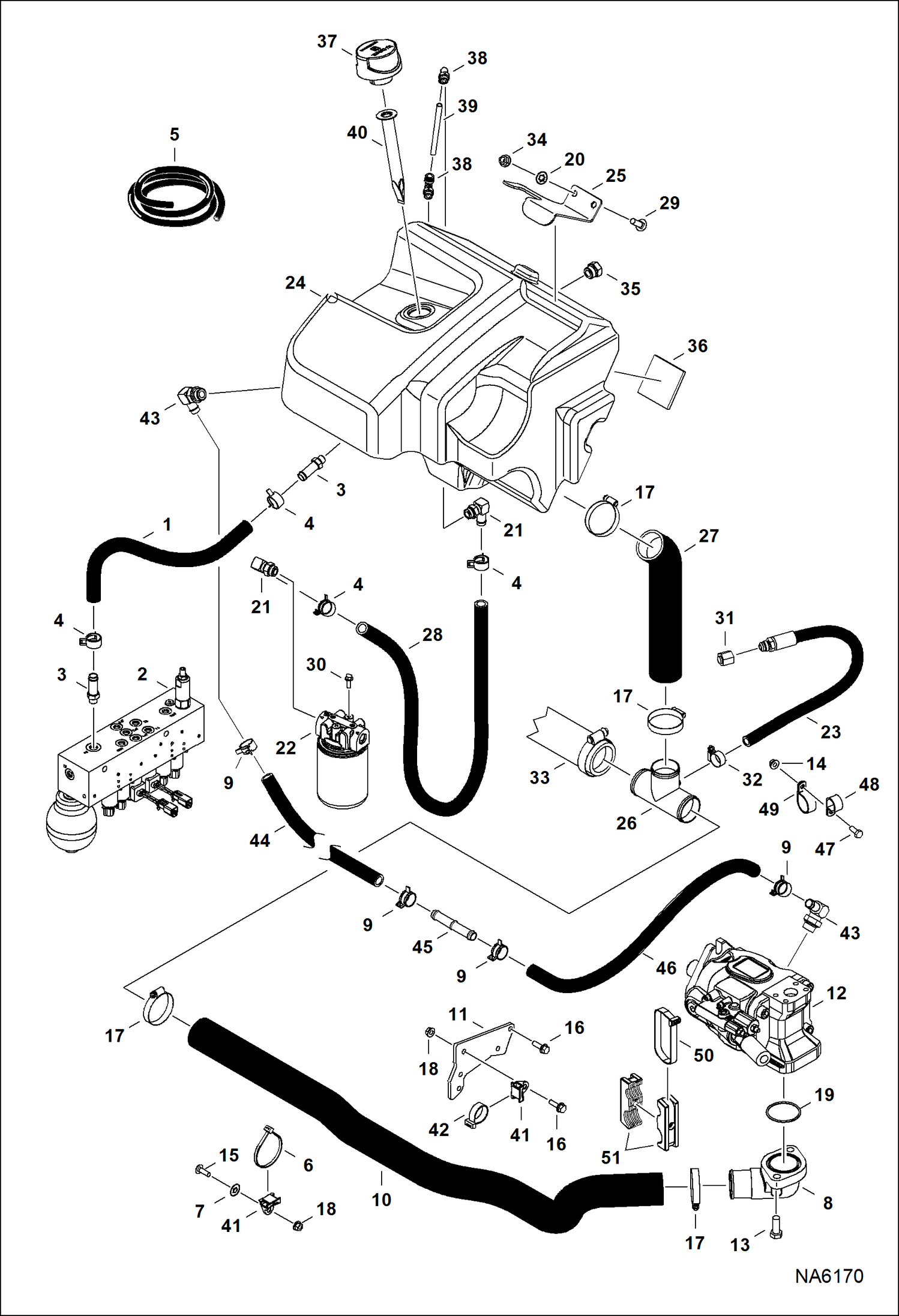

Запчасти Bobcat E55 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

HOSE, DRAIN NLA - 533 mm (21'') long - Order Ref. 5

2

7023282

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA1976 W/O angle blade - Was 7176761 - A

2

7023283

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA1975 W/ angle blade - Was 7176625 - A

3

7178858

FITTING, ADAPTER

3

79K6

O RING 10

4

5HM23

CLAMP

5

6578172

HOSE bulk - sold per foot

6

6624289

STRAP, TIE

7

6675859

RETAINER

8

7175275

INLET, PUMP

9

5HM23

CLAMP

10

7178103

HOSE, HYD FORMED

11

7178153

MOUNT

12

7179600

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ NA5010

13

17C820

BOLT

14

51DM8

NUT

15

28CM825

BOLT

16

29CM825

BOLT

17

42HL250

CLAMP

18

51DM8

NUT

19

58K228

O RING 10

20

6674264

RETAINER NUT

21

6680952

FITTING 90 DEG BARB

21

79K8

O RING 10

22

6686217

FILTER ASSY See Illustration HYDRAULIC CIRCUITRY/ NA6168

22

6516722

FILTER

23

6713504

HOSE

24

TANK, HYD NLA - W/Port for Ref. 35 - Was 7172644 - A

24

7172644

TANK, HYD

25

7173137

BRACKET

26

7175632

FITTING, HYD TEE

27

7176170

HOSE, HYD FORMED

28

HOSE, DRAIN NLA - 1130 mm (44.5'') long - Order Ref. 5

29

28CM1030

BOLT

30

35C412

BOLT

31

36K6

CAP

32

5HM20

CLAMP Was 42HL100 - B

33

HOSE See Illustration HYDRAULIC CIRCUITRY/ NA2686

34

43DM10

NUT

35

24K7

PLUG Use W/Ref. 24 NLA tank

35

79K10

O RING 10

36

6578278

PAD

37

6692836

CAP, HYDRAULIC TANK

38

7013179

FITTING

38

79K6

O RING 10

39

7013180

TUBE

40

7128723

SCREEN

41

6678818

MOUNT

42

6678669

STRAP

43

7195417

FITTING, HYD ELBOW

44

HOSE, HYD NLA - 922 mm (36.3'') long - Order Ref. 5

45

7195825

UNION

46

7215096

HOSE, HYD FORMED Was 7195879 - A

47

1CM820

BOLT

48

30H49

CLAMP

49

30H110

CLIP

50

6685156

RETAINER

51

7198913

CLAMP, HALF
