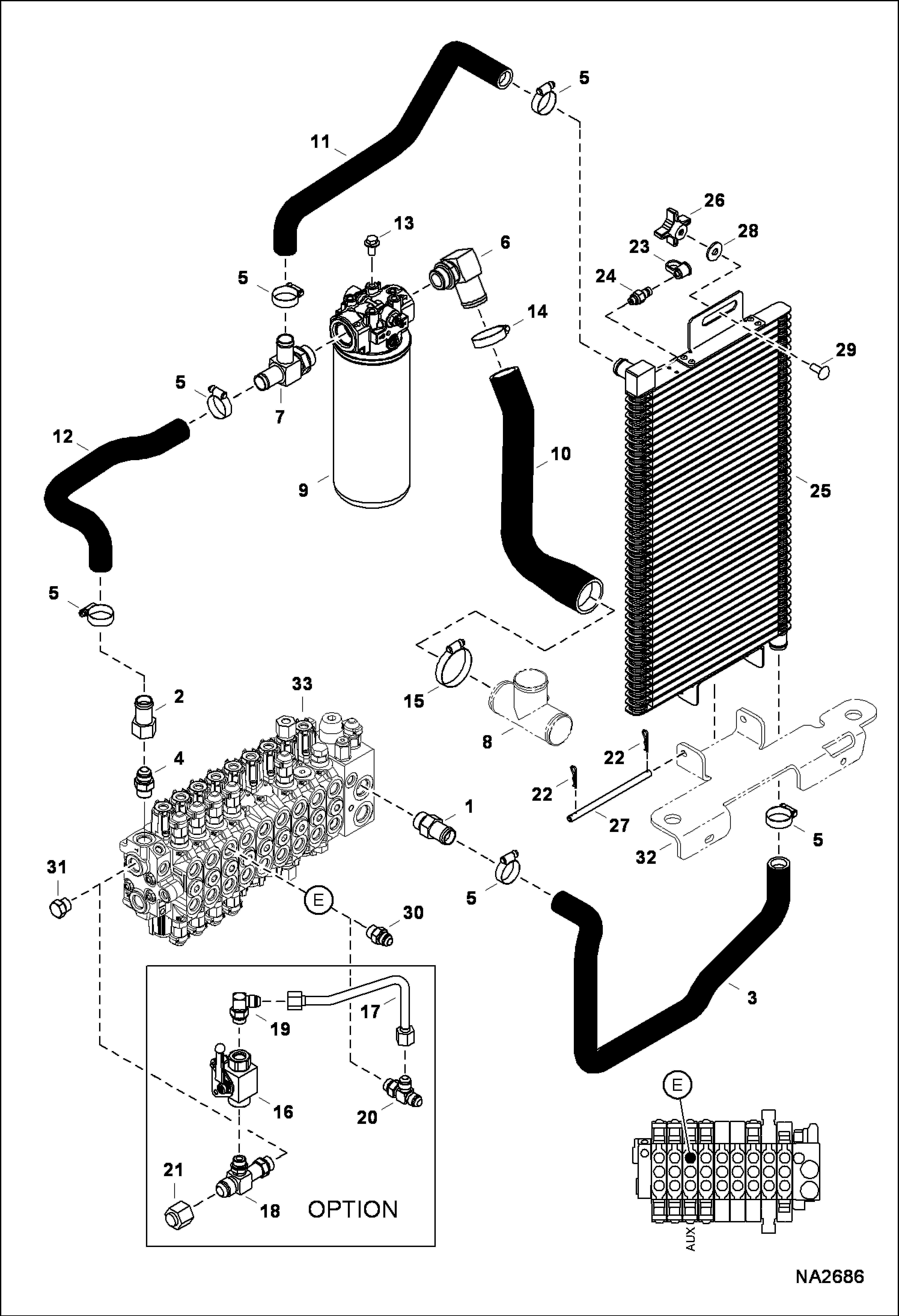

Запчасти Bobcat E55 HYDRAULIC CIRCUITRY (Cooler/Filter & Direct to Tank) HYDRAULIC SYSTEM

1

7012352

VALVE, BUILDUP

1

79K12

O RING 10

2

7012353

VALVE, BUILDUP

3

7211374

HOSE, HYD FORMED Was 7176765 - C

4

15KB1010

FITTING, HYD CONNECTOR

4

79K10

O RING 10

5

42HL150

CLAMP, HOSE

6

7166248

FITTING

6

79K16

O RING 10

7

7166249

FITTING

7

79K16

O RING 10

8

TEE See Illustration HYDRAULIC CIRCUITRY/ NA6170

9

7177011

FILTER, OIL HYD ASSY See Illustration HYDRAULIC OIL FILTER/ NA2672

10

7185144

HOSE, HYD FORMED

11

7211375

HOSE, HYD FORMED Was 7185145 - C

12

7211376

HOSE, HYD FORMED Was 7185146 - C

13

29CM1020

BOLT

14

42HL200

CLAMP, HOSE

15

42HL250

CLAMP

16

6693507

VALVE, BALL See Illustration SELECTOR VALVE ASSY/ NA2306

17

7176915

TUBELINE, HYD

18

7178217

FITTING, HYD TEE

18

79K8

O RING 10

18

79K10

O RING 10

19

17KB0808

FITTING, HYD ELBOW

19

79K8

O RING 10

20

21KB0808

FTG HYD STRAIGHT TEE

20

79K8

O RING 10

21

36K8

CAP

22

1306637

CLIP

23

6630367

CAP

24

6658103

COUPLER

25

7003679

EXCHANGER, OIL COOLER

26

7167576

NUT, WING

27

7174835

PIN

28

17EM100

WASHER

29

28CM1025

BOLT

30

15KB0808

FITTING, HYD CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA6169

30

79K8

O RING 10

31

24K7

PLUG

31

79K10

O RING 10

32

SUPPORT, RADIATOR See Illustration ENGINE & ATTACHING PARTS/ NA2658

33

7009975

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2670 - 9 section - W/O angle blade

33

7001661

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2671 - 10 section - W/ angle blade
