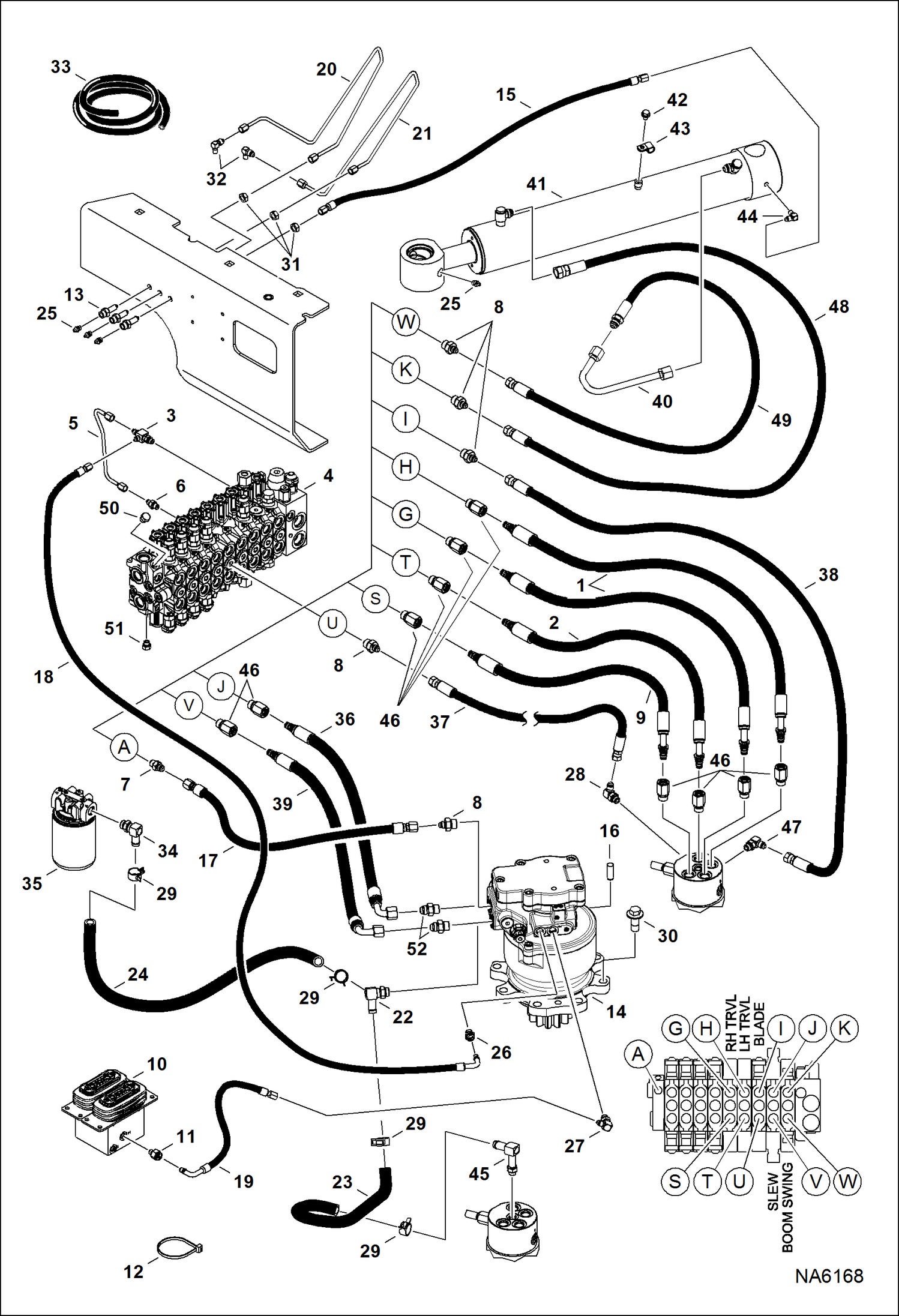

Запчасти Bobcat E55 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

7189785

HOSE, HYD 724 mm (28.5'') long - Also Order Ref. 46

1

7189787

HOSE, HYD 711 mm (28'') long - Also Order Ref. 46

2

7189786

HOSE, HYD 680 mm (26.75'') long - Also Order Ref. 46

2

7202961

HOSE, HYD 663 mm (26.10'') long - Also Order Ref. 46

3

7023611

VALVE, SHUTTLE Was 6697919 - A

3

79K4

O RING 10

4

7009975

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2670 9 section - W/O angle blade

4

7001661

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2671 10 section - W/ angle blade

5

7176766

TUBELINE, HYD

6

15KB0404

FTG HYD S Connector

6

79K4

O RING 10

7

15KB0606

FITTING, HYD CONNECTOR

7

79K6

O RING 10

8

15KB0608

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

7189787

HOSE, HYD 711 mm (28'') long - Also Order Ref. 46

9

7199532

HOSE, HYD 702 mm (27.63'') long - Also Order Ref. 46

10

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

11

10L0604

FITTING, HYD CONNECTOR

11

78K4

O'RING

11

7011053

CLIP

12

6624289

STRAP, TIE

13

6807184

FITTING

14

7013210

SLEW MOTOR See Illustration SLEW MOTOR/ NA6154

15

7145016

HOSE ASSY if equipped

16

7171260

PIN, PARALLEL

17

7199531

HOSE, HYD

18

7192037

HOSE, HYD

19

7192039

HOSE, HYD

20

7192031

TUBELINE, HYD

21

7192032

TUBELINE, HYD

22

7201924

FITTING, HYD TEE

22

79K8

O RING 10

23

7192046

HOSE, HYD FORMED

24

HOSE, HYD NLA - 1030 mm (40.55'') long - Order Ref. 33

25

10H25

FITTING, GREASE 5

26

10L0606

FITTING, HYD CONNECTOR

26

78K6

O'RING

26

7011053

CLIP

27

17KB0406

FITTING, HYD ELBOW

27

79K6

O RING 10

28

17KB0606

FITTING Was 18KB0606 - B

28

79K6

O RING 10

29

5HM23

CLAMP

30

60CM1640

SCREW

31

86F3

LOCKNUT

32

83F3

ELBOW 5

33

6578172

HOSE bulk - sold per foot

34

6680952

FITTING 90 DEG BARB

34

79K8

O RING 10

35

6686217

FILTER ASSY See Illustration HYDRAULIC CIRCUITRY/ NA6170

35

6516722

FILTER

36

7199487

HOSE, HYD

37

7178777

HOSE, HYD

38

7202810

HOSE, HYD

39

7199488

HOSE, HYD

40

7165994

TUBELINE, HYD

41

CYLINDER, BOOM SWING See Illustration BOOM SWING CYLINDER/ NA6146

42

29CM812

BOLT

43

30H30

CLAMP

44

83F3

ELBOW 5

45

7201926

FITTING, HYD ELBOW

45

79K6

O RING 10

46

15HB0808

FITTING Also Order hose

46

79K8

O RING 10

47

17KB0606

FITTING

47

79K6

O RING 10

48

7176115

HOSE, HYD W/O 2nd aux

48

HOSE, HYD See Illustration SECONDARY AUXILIARY KIT/ NA2676 W/ 2nd aux

48

TUBELINE, HYD See Illustration SECONDARY AUXILIARY KIT/ NA2676 W/ 2nd aux

49

7179626

HOSE, HYD W/O 2nd aux

49

HOSE, HYD ASSY See Illustration SECONDARY AUXILIARY KIT/ NA2676 W/ 2nd aux

49

TUBELINE, HYD See Illustration SECONDARY AUXILIARY KIT/ NA2676 W/ 2nd aux

50

24K5

PLUG W/O 2nd aux

50

79K6

O RING 10

50

FITTING See Illustration SECONDARY AUXILIARY KIT/ NA2676 W/ 2nd aux

51

24K3

PLUG W/O hydraulic X-Change

51

79K4

O RING 10

51

FITTING See Illustration X-CHANGE/ NA2675 W/ hydraulic X-Change

52

15KB0808

FITTING, HYD CONNECTOR

52

79K8

O RING 10
