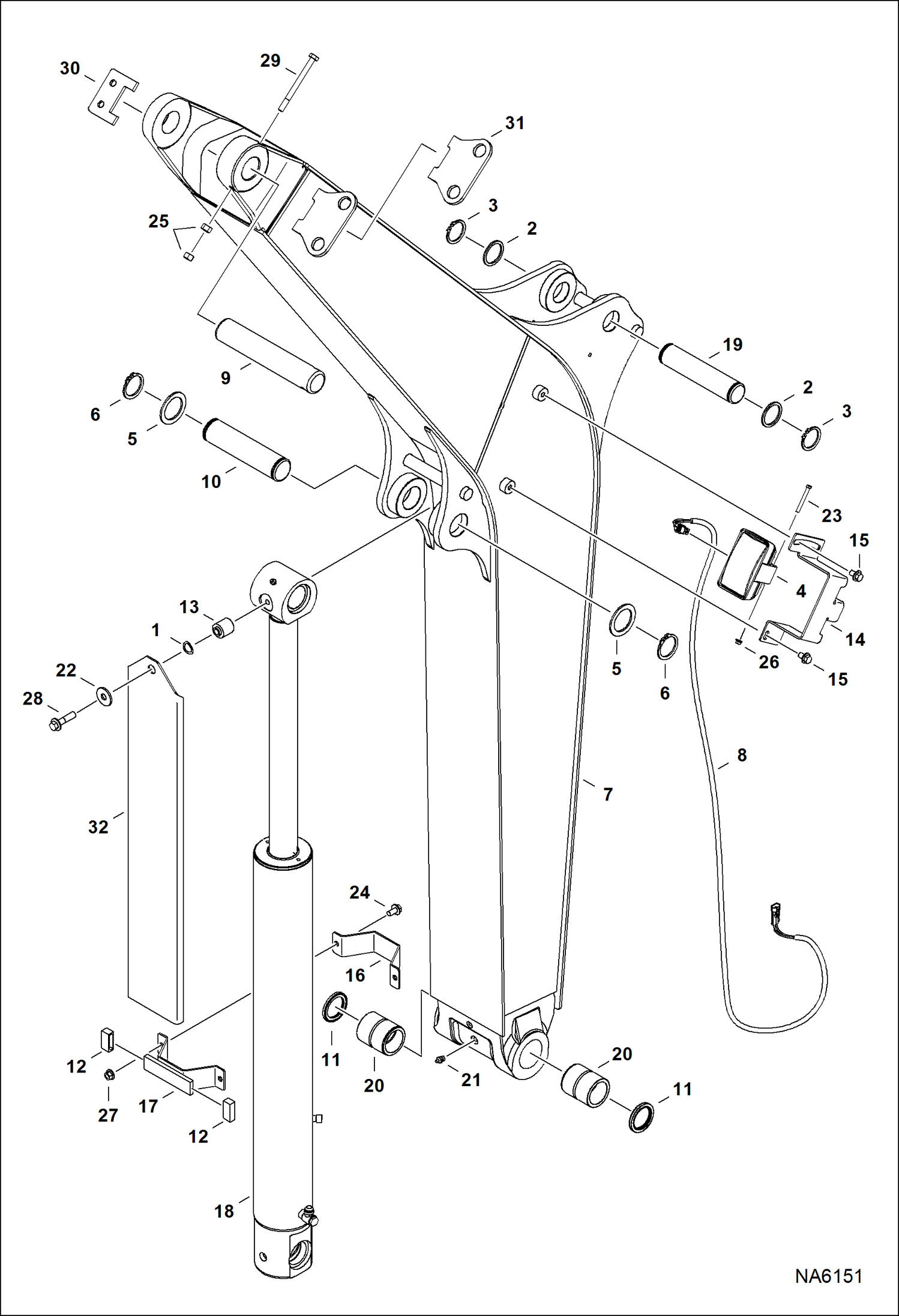

Запчасти Bobcat E55 BOOM WORK EQUIPMENT

1

6536803

WASHER

2

6628547

WASHER

3

6668787

RING

4

7018038

LIGHT

4

6692400

BULB

5

6812687

WASHER

6

6812713

RING

7

7199697

BOOM, ARM DIPPER Also Order Ref. 11 & 20

8

7135895

HARNESS

9

7143012

PIN, PIVOT

10

7143038

PIN, PIVOT

11

7143551

SEAL, DUST

12

7144089

COVER

13

7166239

SPACER

14

7195369

BRACKET, LIGHT WORKING

15

29CM1016

BOLT

16

7165968

CLAMP, HALF

17

7165965

CLAMP, HALF

18

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA2867

19

7179001

PIN, PIVOT

20

7188685

BUSHING, WEAR

21

10H25

FITTING, GREASE 5

22

17EM120

WASHER

23

1CM655

SCREW

24

29CM1020

BOLT

25

4DM12

NUT HEX

26

51DM6

NUT

27

51DM10

NUT

28

59CM1250

BOLT, FLANGE

29

7CM12140

BOLT

30

7198272

PLATE, MOUNT COUPLER bolt-on - Was 7153112 - A

31

7198270

PLATE, MOUNT COUPLER weld-on - Was 7122584 - A

32

7165962

SHIELD, CYL
