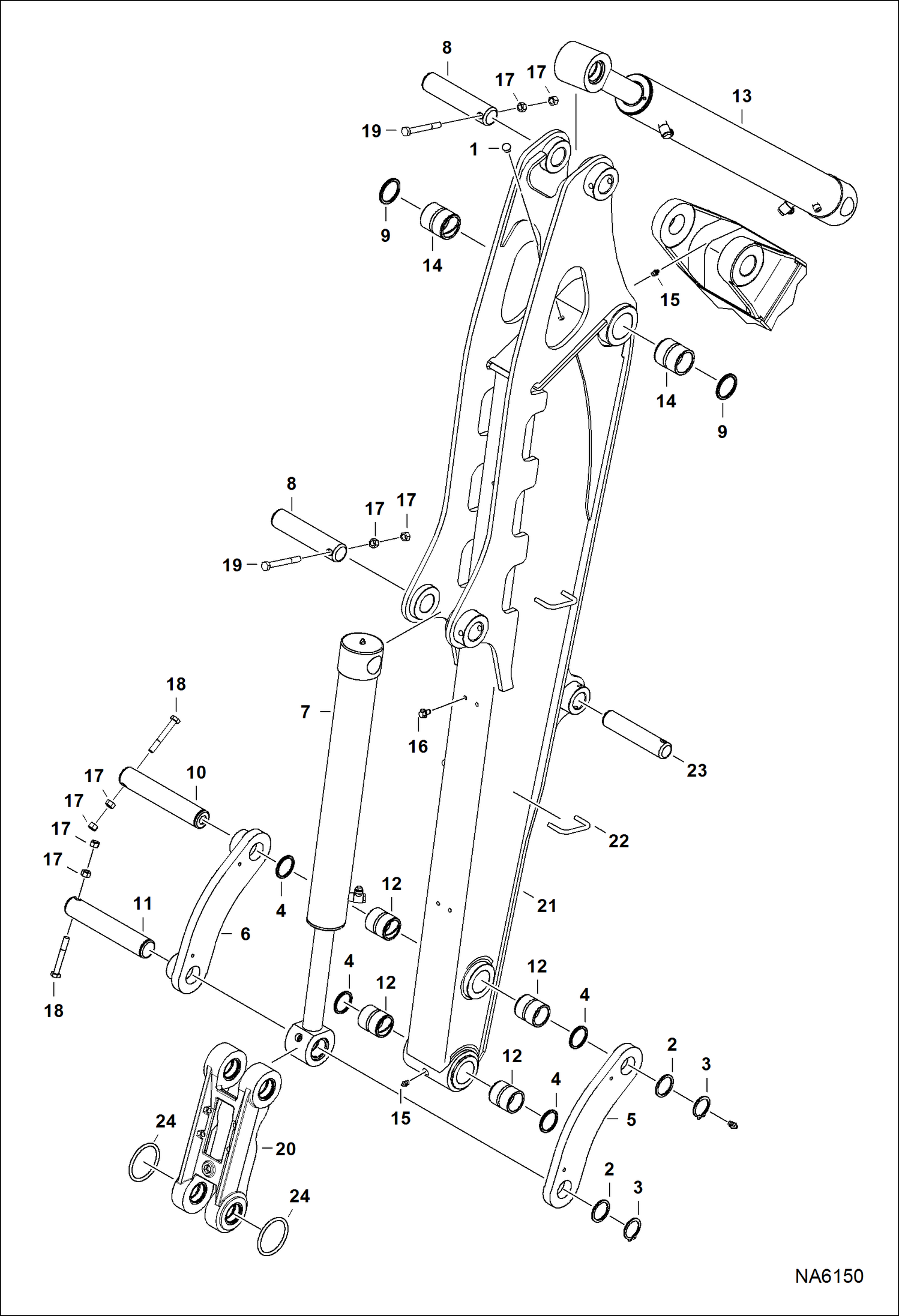

Запчасти Bobcat E55 ARM WORK EQUIPMENT

1

6597572

BUMPER

2

6628547

WASHER

3

6668787

RING

4

6669287

SEAL

5

7142836

LINK

6

7142838

LINK, ASSY

7

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ NA6147

8

7208620

PIN, PIVOT Was 7143040 - A

9

7143551

SEAL, DUST

10

7144499

PIN, PIVOT

11

7144500

PIN, PIVOT

12

7172745

BUSHING, WEAR

13

CYLINDER, ARM See Illustration ARM CYLINDER/ NA6144

14

7188685

BUSHING, WEAR

14

7166241

PIN, PIVOT 436 mm (17.2'') long - see clamp attachment

15

10H25

FITTING, GREASE 5

16

26GM10020

BOLT

17

4DM12

NUT HEX

18

7CM1290

SCREW

19

7CM12110

BOLT

20

7236787

LINK, ASSY See Illustration BUCKET LINK/ NA8362 - Was 7165792 - A

21

7219115

ARM, DIPPER W/A LONG EXC Also Order Ref. 4, 9, 12, & 14 - Was 7208985 - A

22

6586391

GUIDE weld-on

23

PIN clamp - see clamp attachment

24

7143561

O-RING
