Запчасти Bobcat E55 OPERATOR AREA & SEAT (Floor) (S/N ARWM11001 - 11999, ASW311001 - 11999) MAIN FRAME

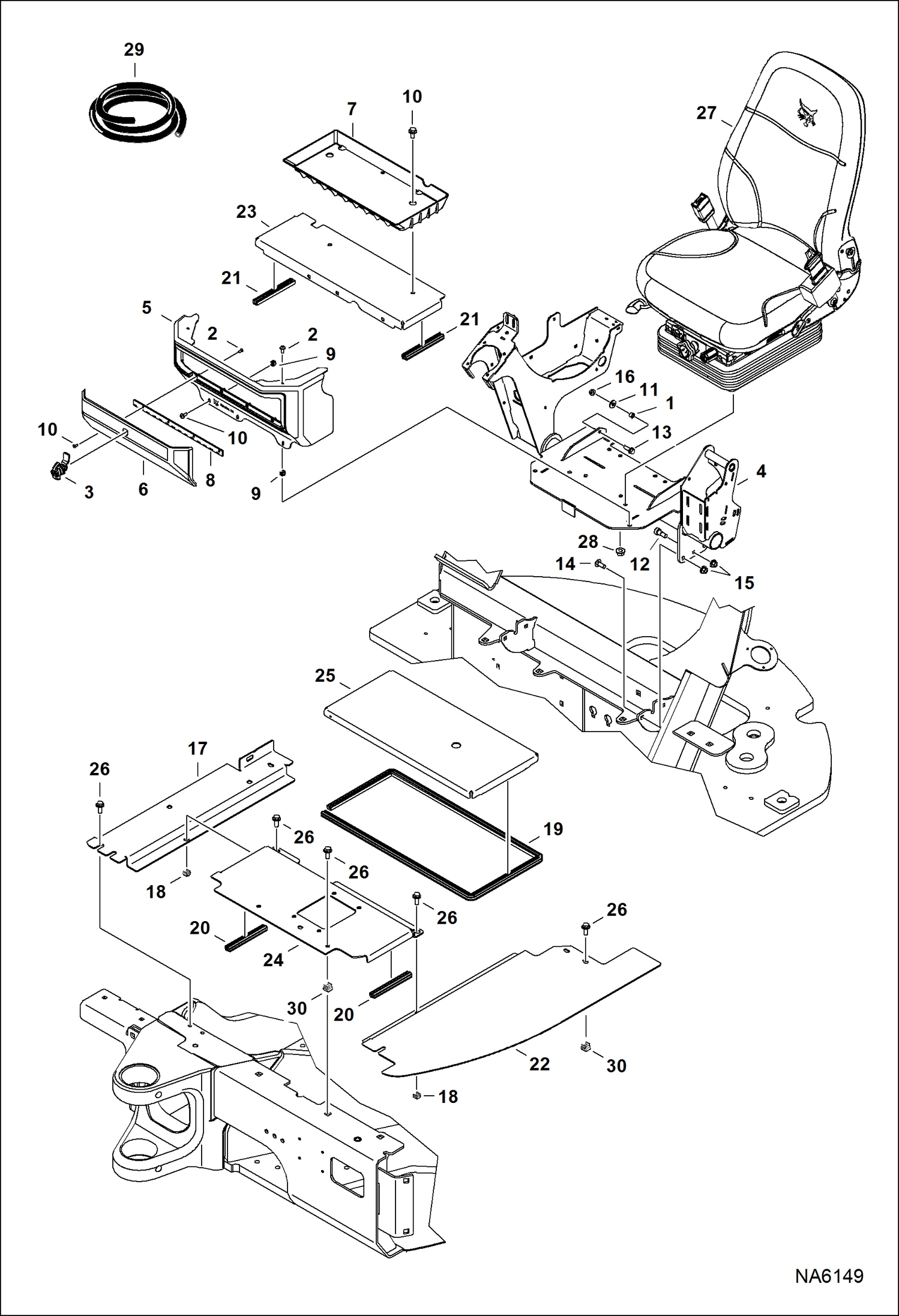

Схема запчастей Bobcat E55 - OPERATOR AREA & SEAT (Floor) (S/N ARWM11001 - 11999, ASW311001 - 11999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6802539

SPACER

2

6803202

SCREW

3

LATCH, HANDLE NLA - Order 7239170 handle and 7239274 lever - Was 7186648 - A

3

7239170

LATCH, HANDLE

3

7239274

CAM, LEVER

4

CONTROLLER, JOYSTICK ASSY See Illustration CONTROL CONSOLE/ NA2250

5

7170706

CONTAINER, STORAGE

6

7188090

DOOR, STORAGE

7

7236279

MAT, FLOOR Was 7170708 - A

8

7170709

HINGE, COVER

9

7170765

NUT

10

7208340

SCREW Was 7179240 - A

11

25E16

WSHR

12

28CM1025

BOLT

13

29CM825

BOLT

14

38CM1212

BOLT, SHOULDER

15

43DM10

NUT

16

51DM8

NUT

17

7146428

PLATE, FLOOR

18

7155411

NUT

19

SEAL, BULB NLA - 1702 mm (67'') long - Order Ref. 29

20

SEAL, BULB NLA - 178 mm (7'') long - Order Ref. 29

21

SEAL, BULB NLA - 152 mm (6'') long - Order Ref. 29

22

7174461

PLATE, FLOOR

23

7210906

PLATE, FLOOR Was 7198879 - A

24

7178333

PLATE, FLOOR

25

7178334

PLATE, FLOOR

26

29CM1025

BOLT

27

7169360

SEAT, OPERATOR SUSPENSION CLOTH See Illustration SEAT/ NA2287

27

7157550

SEAT, OPERATOR SUSPENSION VINYL See Illustration SEAT/ NA2287

28

51DM8

NUT

29

7177959

SEAL, BULK BULB bulk - sold per foot

30

7155413

NUT

Выбрано товаров: 33
