Запчасти Bobcat E55 ANGLE BLADE CYLINDER HYDRAULIC SYSTEM

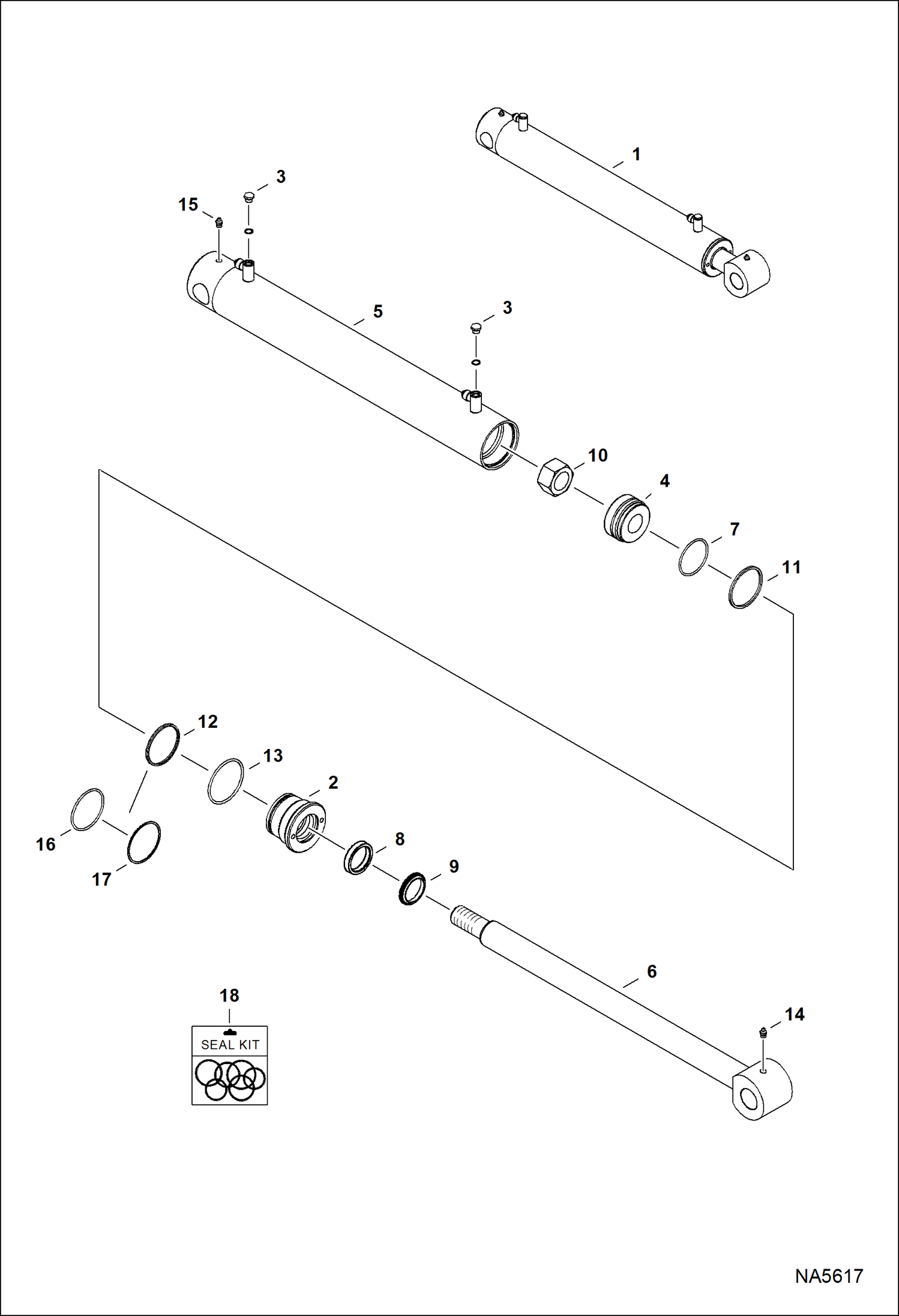

Схема запчастей Bobcat E55 - ANGLE BLADE CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7164492

CYLINDER, BLADE Ref. 2-13 - Also Order Ref. 14 & 15

2

6806124

HEAD

3

6812170

PLUG

3

75K3

O-RING

4

6815011

PISTON

5

7134020

TUBE ASSY W/Ref. 3 & 13 - Also Order Ref. 15

6

7134019

SHAFT W/A Also Order Ref. 14

7

1522534

SEAL

8

6667326

SEAL

9

6690707

WIPER, ROD CYL

10

6810539

NUT

11

25K30202

O RING 10

12

7008778

SEAL, QUAD

13

82K230

O-RING

14

10H25

FITTING, GREASE 5

15

12H15

FITTING, GREASE 5

16

25K40208

O RING 10 Was 54K40208 - A

17

73K228

BACK-UP RING

18

7135559

SEAL KIT Ref. 7-13

Выбрано товаров: 19
