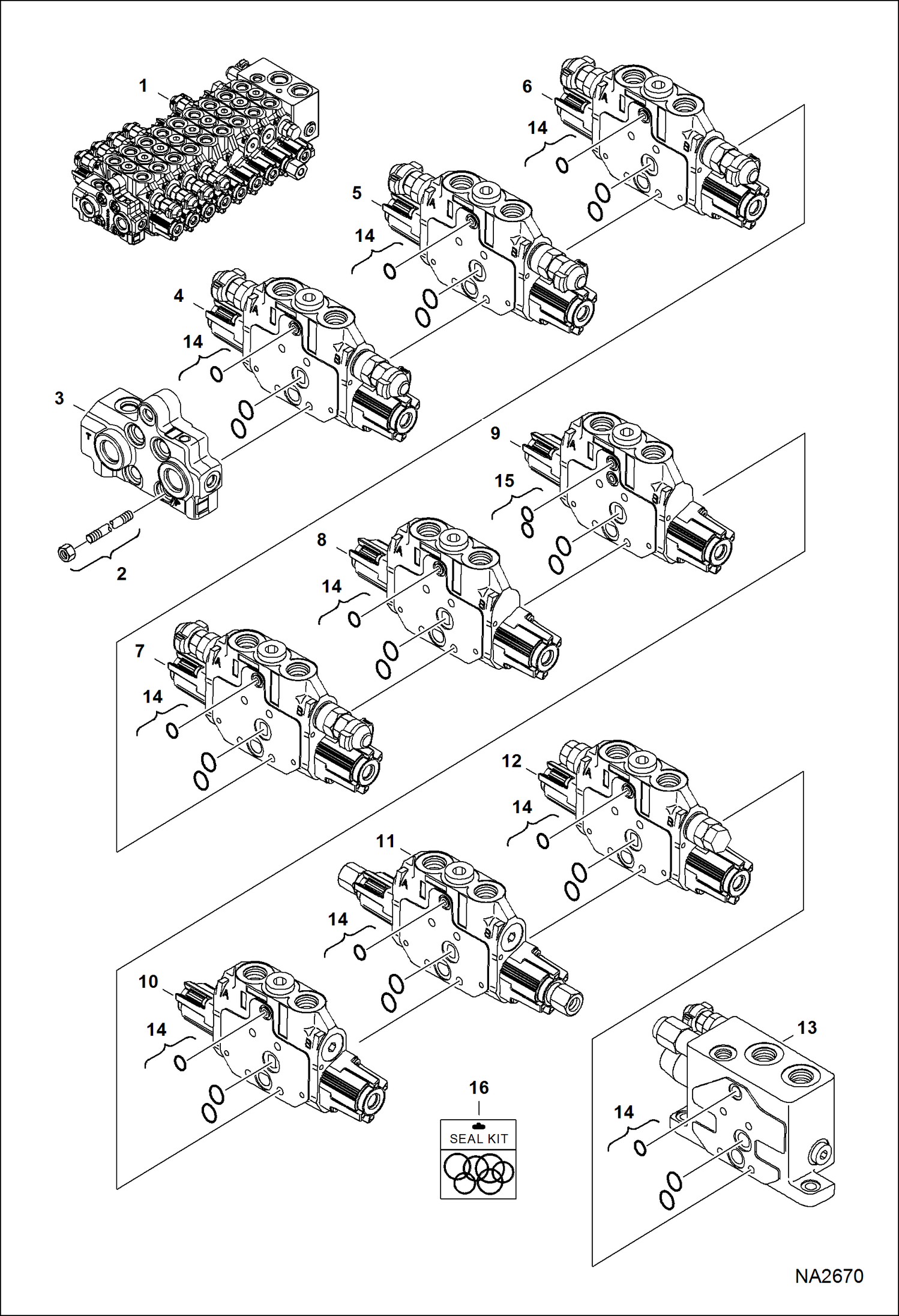

Запчасти Bobcat E50 HYDRAULIC CONTROL VALVE (9 Section Assembly) (W/O Angle Blade) HYDRAULIC SYSTEM

1

7009975

VALVE, CONTROL Ref. 2-15

2

6677476

TIE ROD KIT

3

7016139

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5128 - outlet

4

7016138

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126 - bucket

5

7016136

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126A - arm

6

7016134

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126B - auxiliary

7

7016133

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126C - boom

8

6679924

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5222 - RH travel

9

6679923

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5222A - LH travel

10

7016128

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5125 - blade

11

7016127

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5228 - slew

12

7016125

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5124 - boom swing

13

6685238

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5221 - inlet

14

6677467

KIT, SEAL

15

6677472

KIT,SEAL

16

6677701

SEAL KIT includes Ref. 15 & (9) 6677470 section assembly seal kits
