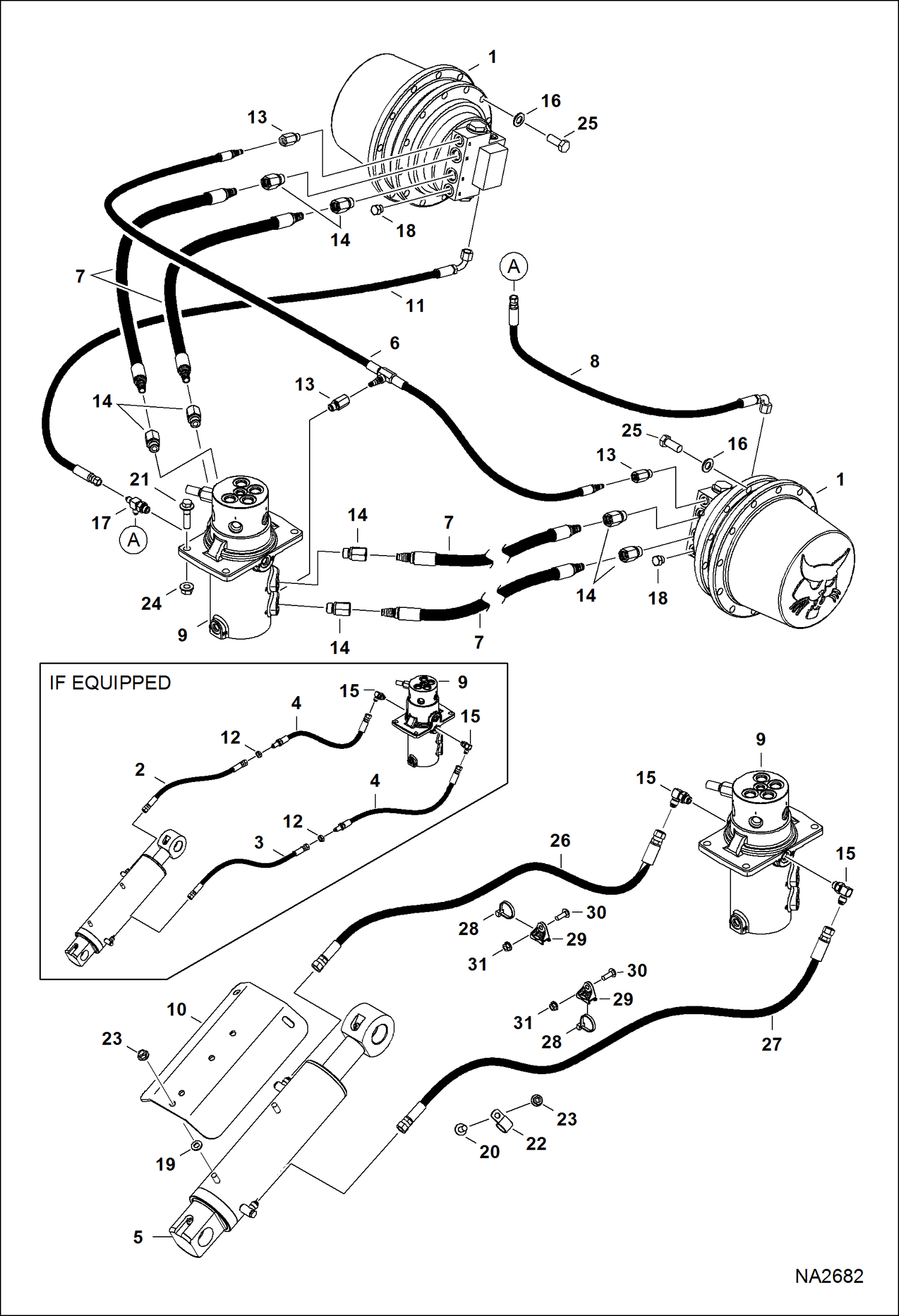

Запчасти Bobcat E50 HYDRAULIC CIRCUITRY (Lower)(W/O Angle Blade) HYDRAULIC SYSTEM

1

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403

2

7144048

HOSE, HYD

3

7144049

HOSE, HYD

4

7144058

HOSE, HYD

5

CYLINDER, BLADE See Illustration BLADE CYLINDER/ NA2663

6

7173031

HOSE, HYD ASSY Also Order Ref. 13

7

7174574

HOSE, HYD Also Order Ref. 14

8

7188111

HOSE, HYD

9

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262

10

7188746

SHIELD, CYL

11

7190630

HOSE, HYD

12

86F5

NUT

13

15HB0406

FITTING, HYD CONNECTOR Also Order hose

13

79K6

O RING 10

14

15HB0808

FITTING Also Order hose

14

78K8

O RING

15

17KB0606

FITTING

15

79K6

O RING 10

16

18EM1426

WASHER

17

21KB0406

FTG HYD STRAIGHT TEE

17

79K6

O RING 10

18

24K5

PLUG

18

79K6

O RING 10

19

25E17

WASHER 5

20

29CM1025

BOLT

21

29CM1250

BOLT

22

30H46

CLIP

23

43DM10

NUT

24

51DM12

NUT

25

55CM1435

SCREW
