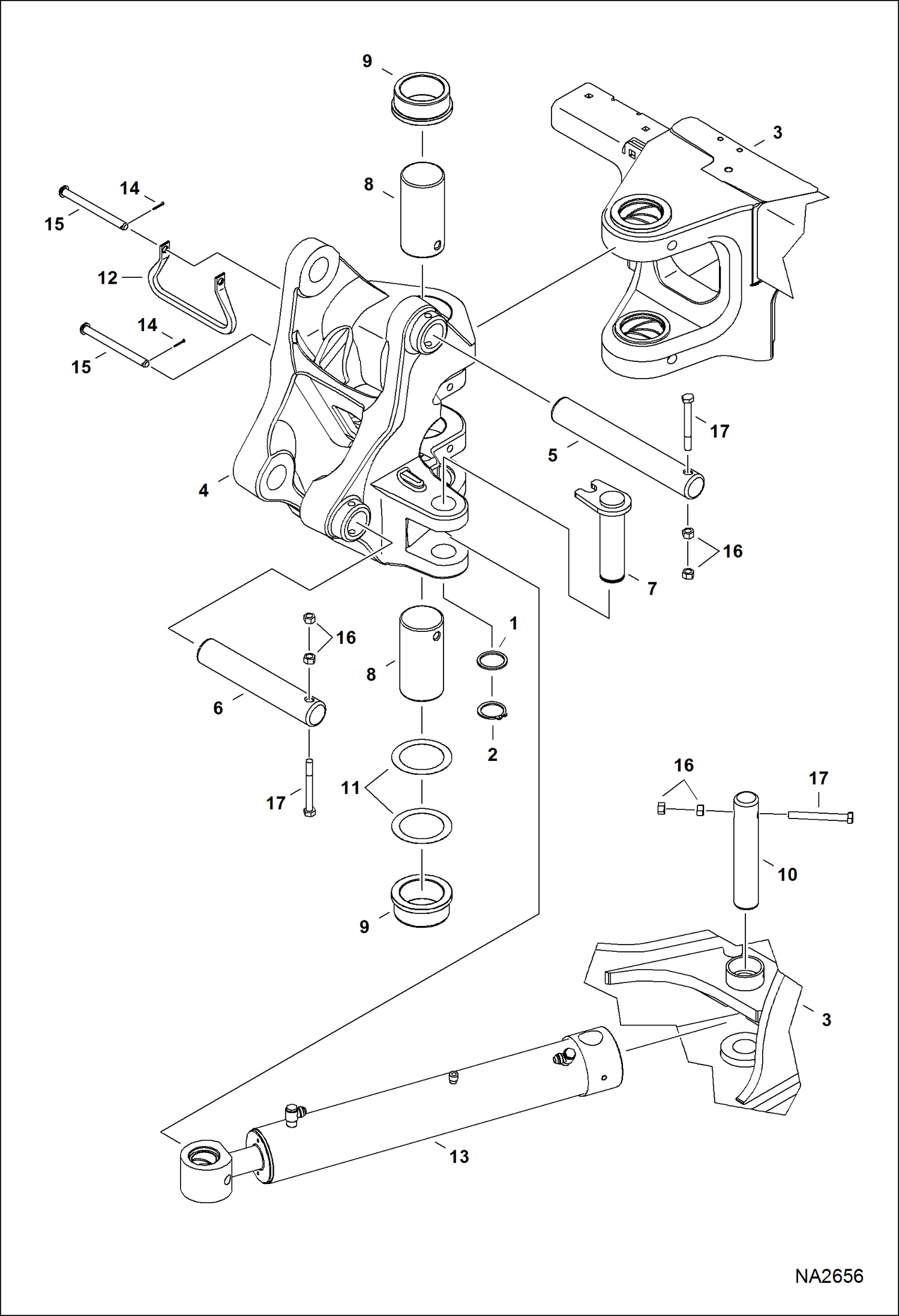

Запчасти Bobcat E50 BOOM SWING FRAME WORK EQUIPMENT

1

6628547

WASHER

2

6668787

RING

3

UPPERSTRUCTURE See Illustration UPPERSTRUCTURE/ NA2592

4

7142818

FRAME, SWING

5

7143014

PIN, PIVOT

6

7143016

PIN, PIVOT

7

7143017

PIN, PIVOT

8

PIN, PIVOT See Illustration UPPERSTRUCTURE/ NA2592 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of Ref. 9 (7196719 bushing), 7198707 bushing, & 7198542 pin -

8

7198542

PIN, PIVOT

9

BUSHING, PIVOT See Illustration UPPERSTRUCTURE/ NA2592 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of Ref. 8 (7198542 pin), 7198707 bushing, & 7196719 bushin

9

7196719

BUSHING, PIVOT

10

7165992

PIN, PIVOT

11

7165993

SHIM

12

7165995

SUPPORT, BRACKET

13

CYLINDER, SWING See Illustration BOOM SWING CYLINDER/ NA2666

14

13JM320

PIN

15

14JM14160

PIN, CLEVIS

16

4DM12

NUT HEX

17

7CM12110

BOLT
