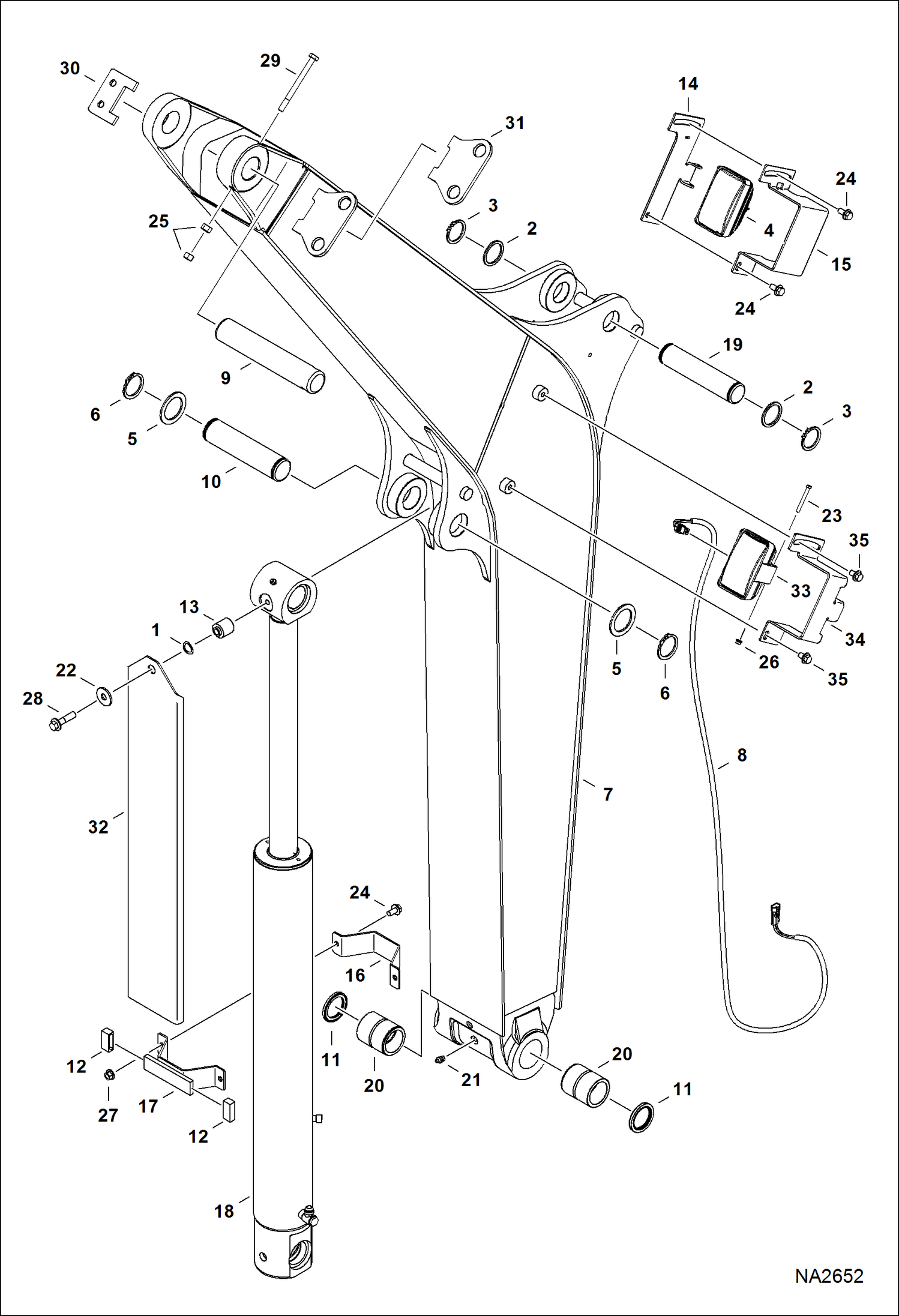

Запчасти Bobcat E50 BOOM WORK EQUIPMENT

1

6536803

WASHER

2

6628547

WASHER

3

6668787

RING

4

6691410

LIGHT Use W/Ref. 14 & 15

4

6692400

BULB

5

6812687

WASHER

6

6812713

RING

7

BOOM, ARM DIPPER NLA - Order 7195360 boom and 7195361 decal - Also Order Ref. 11 & 20 - Was 7122545 - A

7

7199697

BOOM, ARM DIPPER Also Order Ref. 11 & 20 - Was 7195360 - A

8

7135895

HARNESS

9

7143012

PIN, PIVOT

10

7143038

PIN, PIVOT

11

7143551

SEAL, DUST

12

7144089

COVER

13

7166239

SPACER

14

BRACKET, LIGHT WORKING NLA - Order Ref. 33-35 - Was 7171613 - A

15

BRACKET, LIGHT WORKING NLA - Order Ref. 33-35 - Was 7171614 - A

16

7165968

CLAMP, HALF

17

7165965

CLAMP, HALF

18

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA2665

19

7179001

PIN, PIVOT

20

7188685

BUSHING, WEAR

21

10H25

FITTING, GREASE 5

22

17EM120

WASHER

23

1CM655

SCREW

24

29CM1020

BOLT

25

4DM12

NUT HEX

26

51DM6

NUT

27

51DM10

NUT

28

59CM1250

BOLT, FLANGE

29

7CM12140

BOLT

30

7198272

PLATE, MOUNT COUPLER bolt-on - Was 7153112 - A

31

7198270

PLATE, MOUNT COUPLER weld-on - Was 7122584 - A

32

7165962

SHIELD, CYL

33

7018038

LIGHT Use W/Ref. 34

33

6692400

BULB

34

7195369

BRACKET, LIGHT WORKING

35

29CM1016

BOLT
