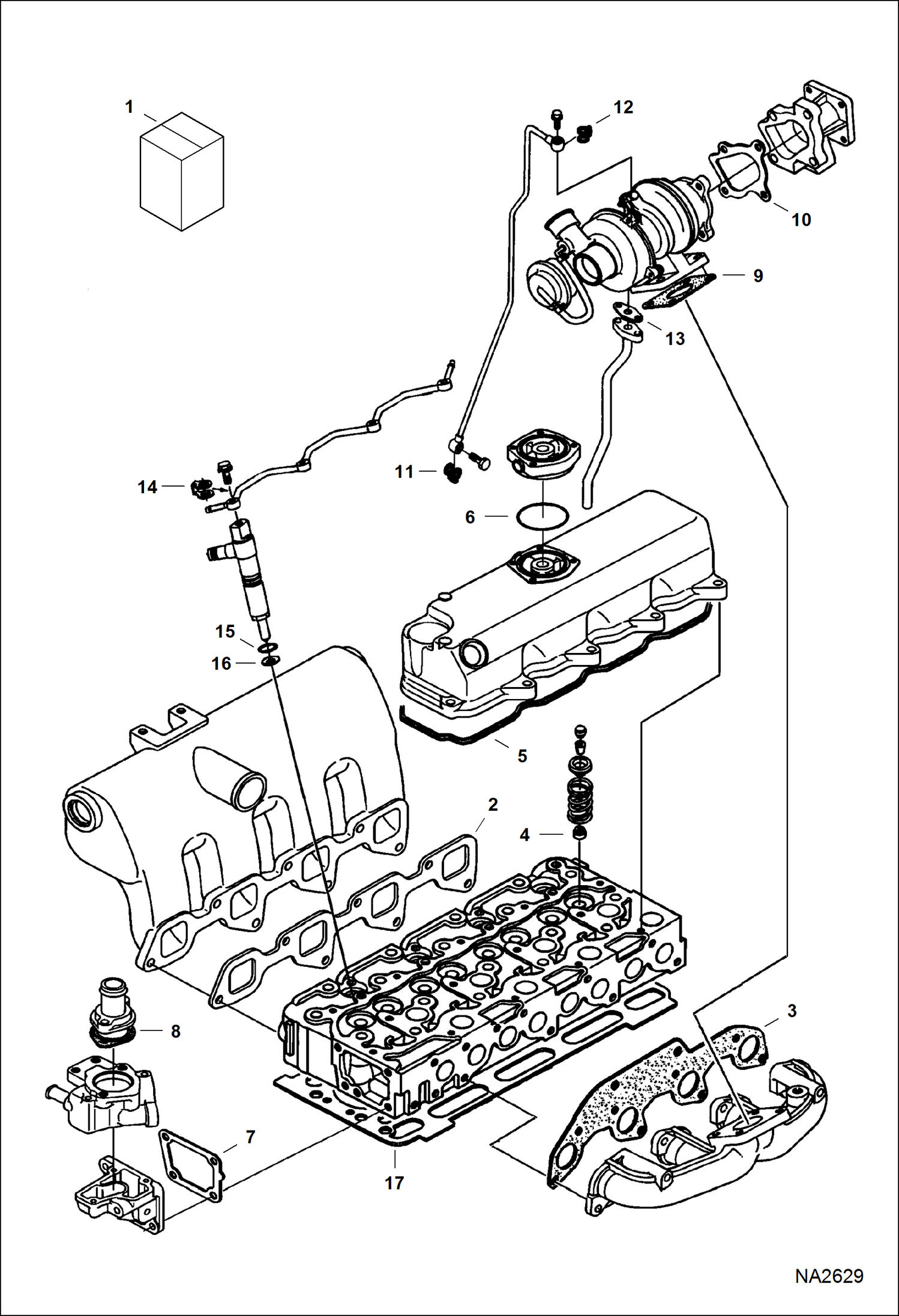

Запчасти Bobcat E50 UPPER GASKET KIT POWER UNIT

1

6689014

KIT, UPPER GASKET Ref. 2-16 - does not include head gasket

2

6684877

GASKET See Illustration MANIFOLDS/ B27036 - intake manifold

3

6688382

GASKET See Illustration MANIFOLDS/ B27036 - exhaust manifold - 1-piece gasket in kit services original 2-piece gaskets - .060'' thick

4

6653830

SEAL, STEM VALVE See Illustration CYLINDER HEAD/ B27045

5

6684780

GASKET See Illustration ROCKER ARM COVER/ NA2615 - rocker arm cover

6

6685581

O-RING See Illustration ROCKER ARM COVER/ NA2615 - breather

7

6666802

GASKET See Illustration WATER FLANGE AND THERMOSTAT/ B27049 - water flange

8

6684863

GASKET See Illustration WATER FLANGE AND THERMOSTAT/ B27049 - thermostat

9

6675636

GASKET See Illustration TURBOCHARGER/ B27038 - turbo to manifold

10

6675637

GASKET See Illustration TURBOCHARGER/ B27038 - turbo to flange

11

6689331

GASKET See Illustration OIL PIPE/ B27039 - oil supply tube - bottom

12

7000642

WASHER, SEALING COPPER See Illustration OIL PIPE/ B27039 - oil supply tube - top

13

6680570

GASKET See Illustration OIL PIPE/ B27039 - oil return tube

14

6685498

GASKET See Illustration INJECTOR NOZZLES/ B27078 - fuel return line

15

6670769

O-RING See Illustration INJECTOR NOZZLES/ B27078 - injector nozzle

16

6969824

GASKET, NOZZLE INJ See Illustration INJECTOR NOZZLES/ B27078 - injection nozzle

17

GASKET, HEAD CYL See Illustration CYLINDER HEAD/ B27045 - not in kit
