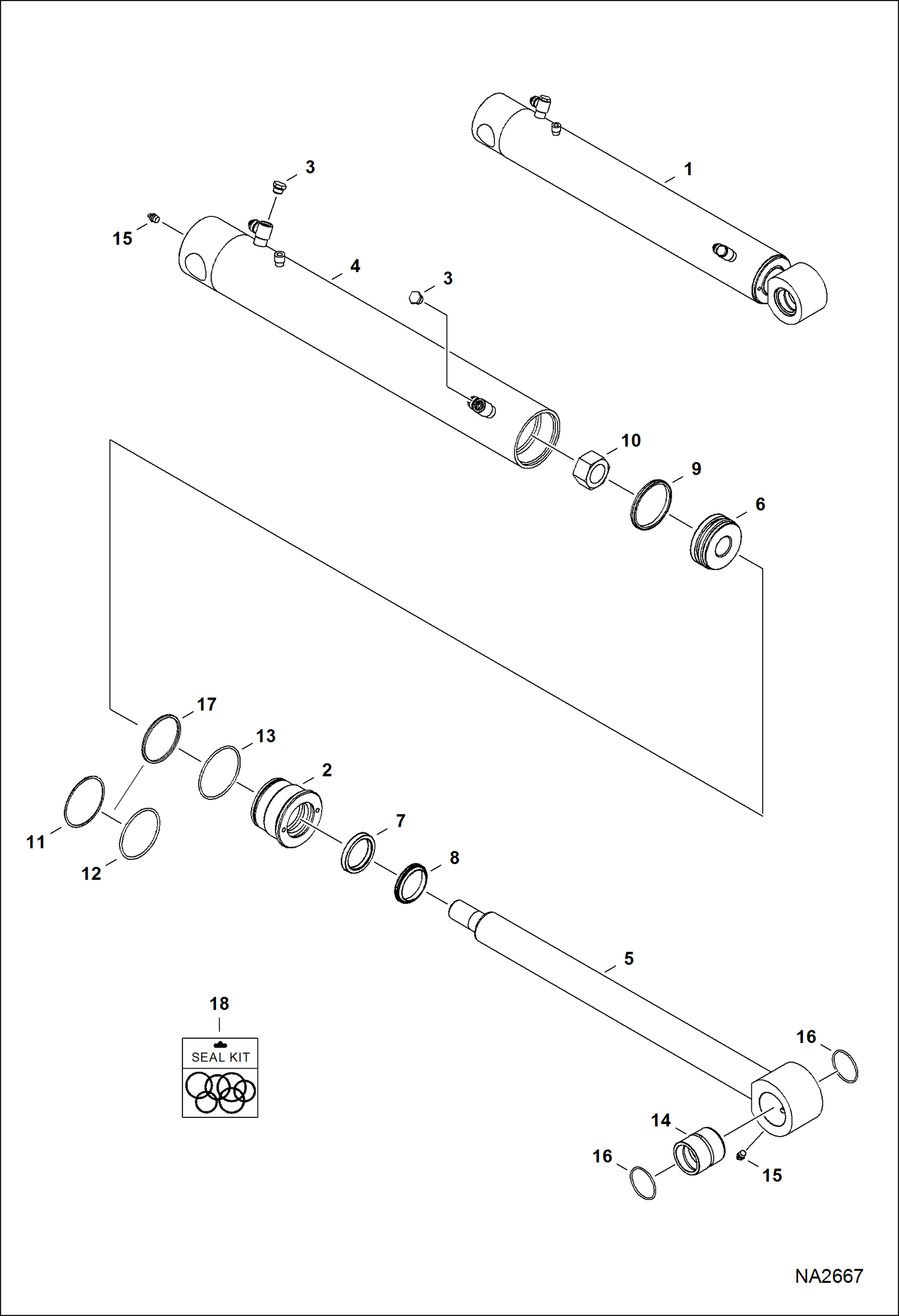

Запчасти Bobcat E50 BUCKET CYLINDER HYDRAULIC SYSTEM

1

7166323

CYLINDER, BUCKET Ref. 2-13 - Also Order Ref. 14-16

2

6810626

HEAD

3

6812171

PLUG

3

75K6

O-RING

4

7166325

TUBE, CASE CYL W/Ref. 3 & 13 - Also Order Ref. 15

5

7166327

ROD, CYL Also Order Ref. 13-16

6

7166329

PISTON

7

6667328

SEAL

8

6686998

WIPER, ROD CYL

9

6692326

SEAL, BP

10

6810540

NUT

11

58K234

O RING 10

12

73K234

BACK-UP RING

13

82K236

O-RING

14

7173984

BUSHING, WEAR

15

10H25

FITTING, GREASE 5

16

6669287

SEAL

17

7008354

SEAL, QUAD

18

7166330

KIT, SEAL Ref. 7-10, 13, & 17
