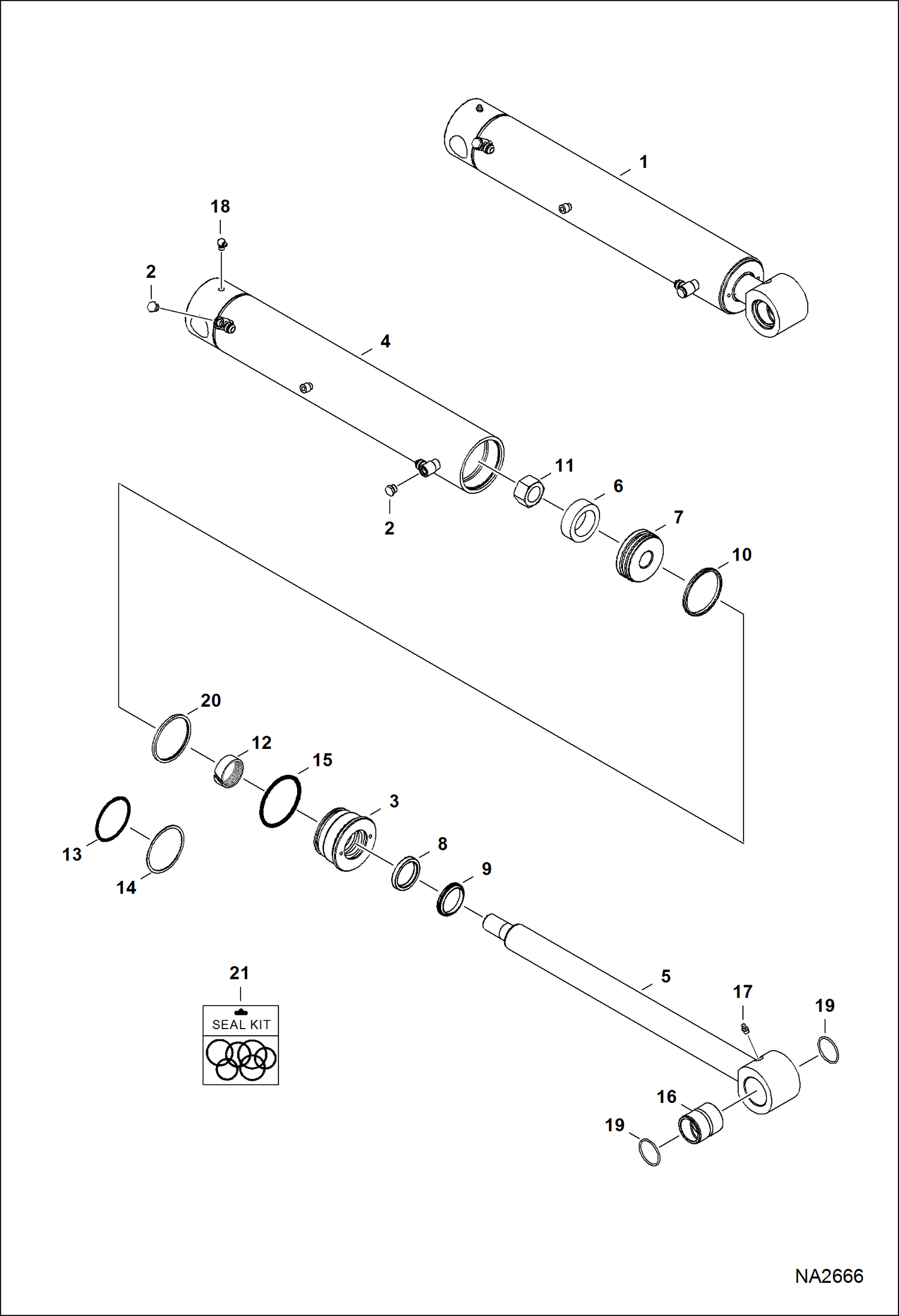

Запчасти Bobcat E50 BOOM SWING CYLINDER HYDRAULIC SYSTEM

1

7166016

CYLINDER, SWING Ref. 2-15 - Also Order Ref. 16-19

2

6812171

PLUG

2

75K6

O-RING

3

6815090

HEAD

4

7166018

TUBE, CASE CYL W/Ref. 2 & 15 - Also Order Ref. 18

5

7166020

SHAFT, ROD CYL Also Order Ref. 16, 17, & 19

6

7174181

SPACER

7

7188134

PISTON, CYL

8

6667328

SEAL

9

6686998

WIPER, ROD CYL

10

6692807

SEAL

11

6810540

NUT

12

7000772

RING, WEAR

13

58K340

O RING 10

14

73K340

BKUP RING

15

82K240

O-RING

16

7172745

BUSHING, WEAR

17

10H25

FITTING, GREASE 5

18

83F3

ELBOW 5 if equipped

18

12H15

FITTING, GREASE 5

19

6669287

SEAL

20

7008352

SEAL, QUAD

21

7196481

KIT, SEAL Ref. 8-12, 15 & 20 - Was 7161987 - A
