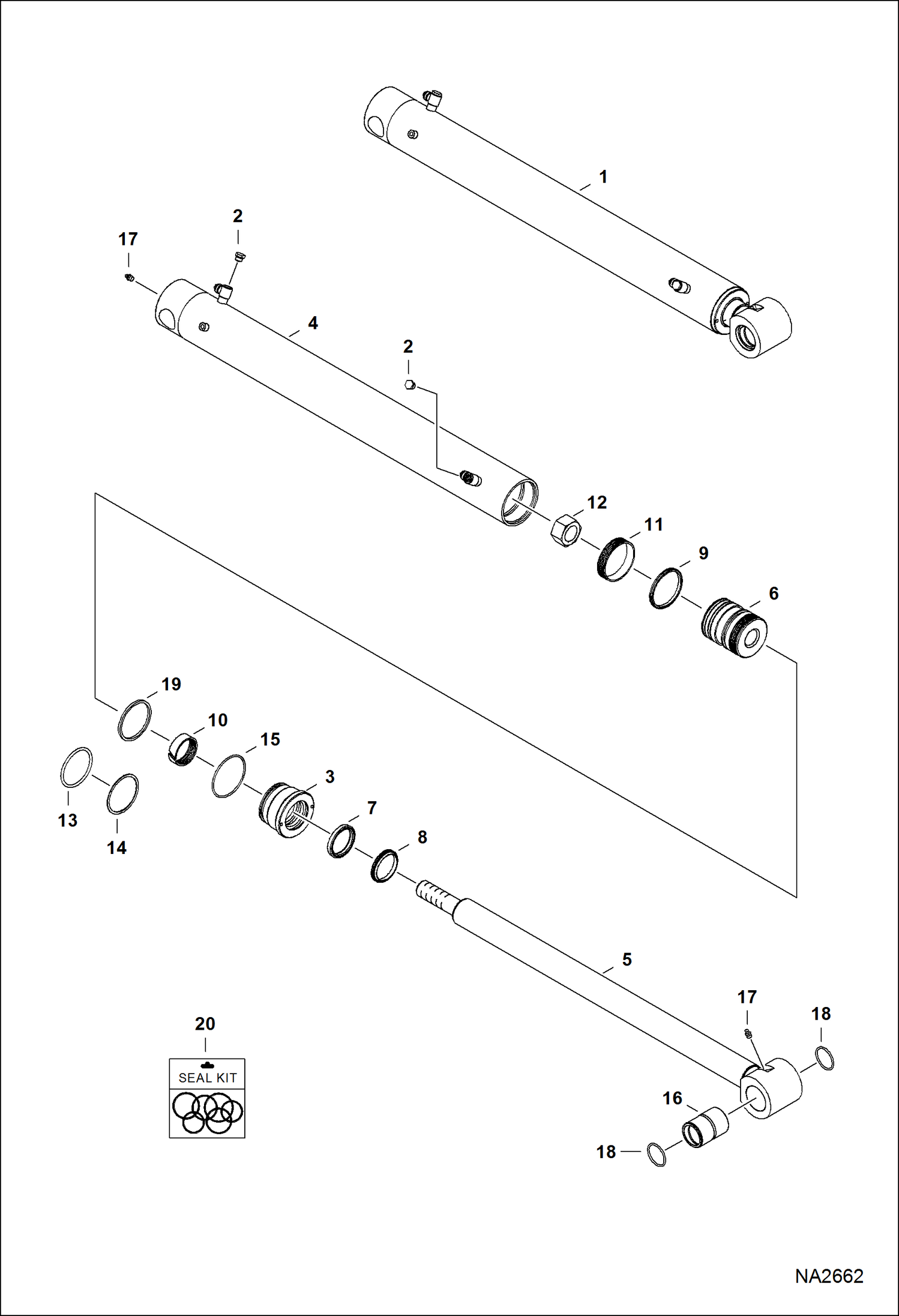

Запчасти Bobcat E50 ARM CYLINDER HYDRAULIC SYSTEM

1

7166180

CYLINDER, ARM Ref. 2-15 - Also Order Ref. 16-18

2

6812171

PLUG

2

75K6

O-RING

3

6816999

HEAD

4

7166182

TUBE, CASE CYL W/Ref. 2 & 15 - Also Order Ref. 17

5

7166184

ROD, CYL Also Order Ref. 16-18

6

7166189

PISTON, CYL

7

6684409

SEAL

8

6686968

SEAL, WIPER ROD

9

6692806

SEAL, CYLINDER

10

7000773

RING, WEAR

11

7001916

RING, WEAR

12

7154049

NUT

13

O-RING NLA - Order Ref. 19 - Was 25K60304 - B

14

RING NLA - Order Ref. 19 - Was 73K338 - B

15

82K238

O-RING

16

7166187

BUSHING, WEAR

17

10H25

FITTING, GREASE 5

17

12H15

FITTING, GREASE 5 if equipped

18

6669287

SEAL

19

7008353

SEAL, QUAD

20

7196904

KIT, SEAL Ref. 7-12, 15 & 19 - Was 7188439 - A
