Запчасти Bobcat E45 HYDRAULIC CONTROL VALVE (LeftTravel Section) HYDRAULIC SYSTEM

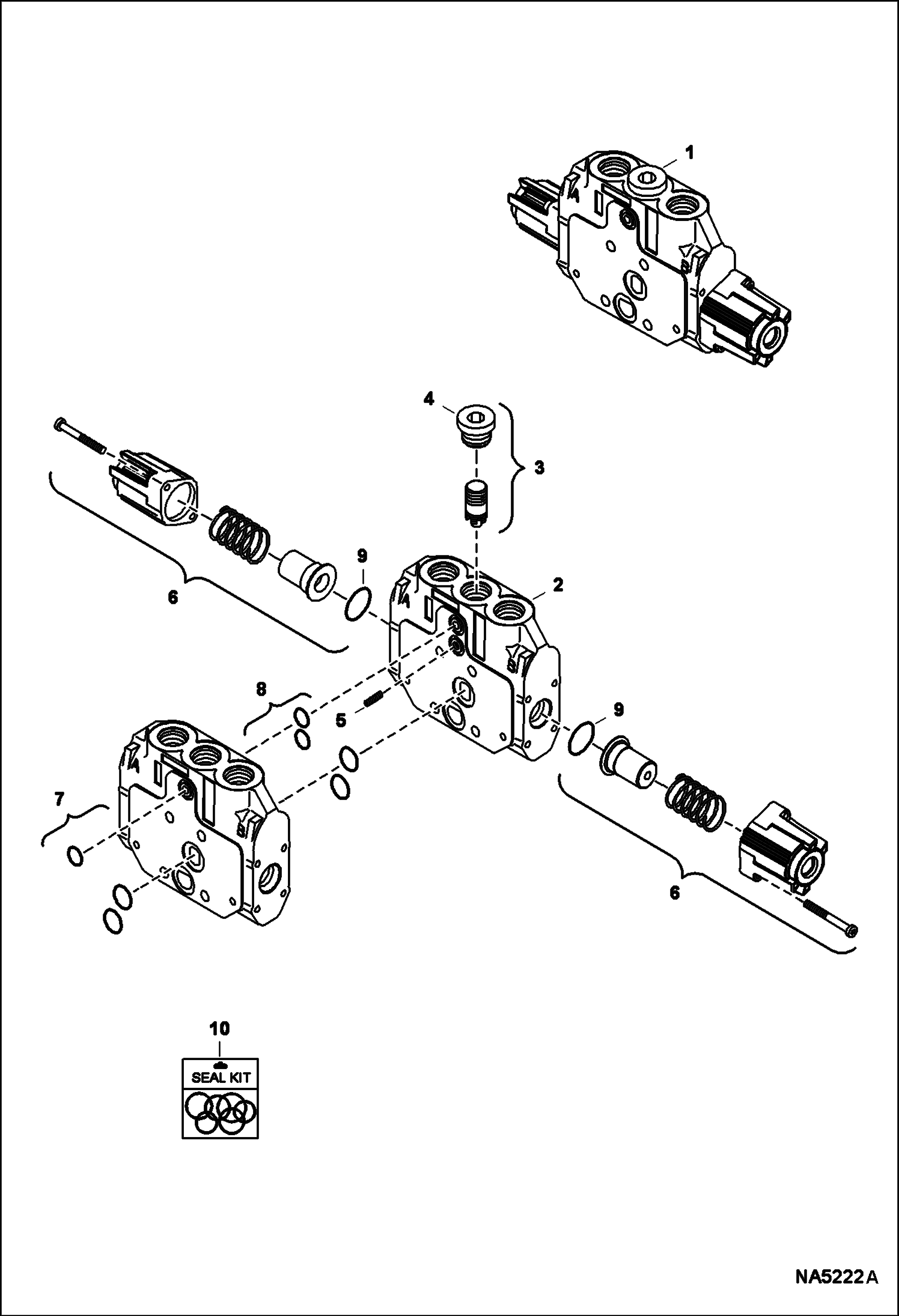

Схема запчастей Bobcat E45 - HYDRAULIC CONTROL VALVE (LeftTravel Section) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7016129

SECTION, VALVE Ref. 2-4, 6, & 8-10

2

HOUSING, VALVE NSS - Order Ref. 1

3

6677690

KIT, COMPENSATOR

4

6685248

PLUG

5

6677695

SCREW not included with left travel section - Also Order if needed

6

6677699

ACTUATOR includes both sides

7

6677467

KIT, SEAL not included with left travel section - Also Order if needed

8

6677472

KIT,SEAL

9

O-RING NSS - Order Ref. 10

10

6677470

SEAL KIT Ref. 7 & 9

Выбрано товаров: 10
