Запчасти Bobcat E45 HYDRAULIC CONTROL VALVE (Arm Section) HYDRAULIC SYSTEM

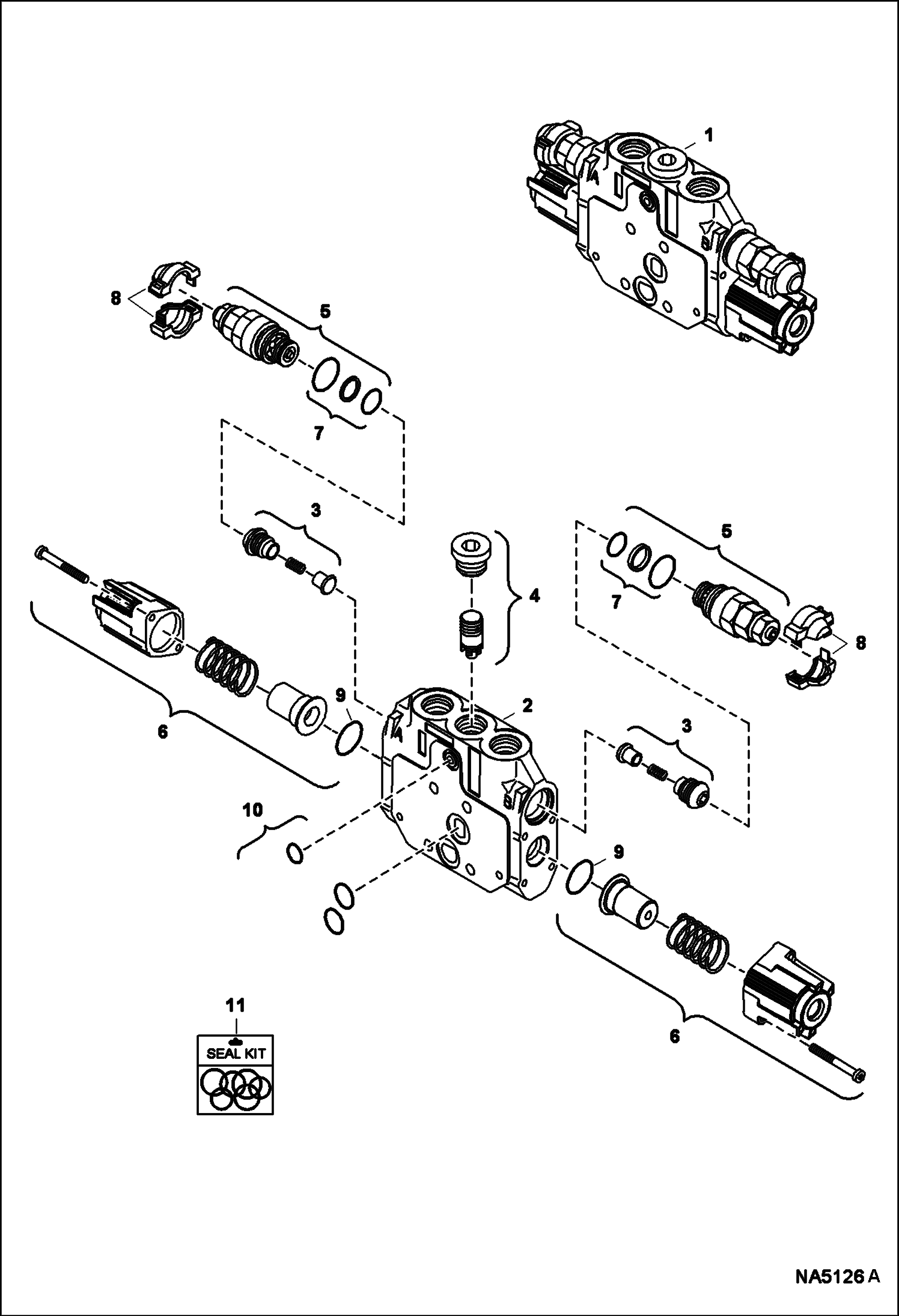

Схема запчастей Bobcat E45 - HYDRAULIC CONTROL VALVE (Arm Section) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7016135

SECTION, VALVE Ref. 2-11

2

HOUSING, VALVE NSS - Order Ref. 1

3

6677689

CHECK VALVE

4

6677690

KIT, COMPENSATOR

5

6685249

VALVE,RELIEF

6

6677699

ACTUATOR includes both sides

7

6910713

SEAL KIT

8

6687072

KIT

9

O-RING NSS - Order Ref. 11

10

6677467

KIT, SEAL

11

6677470

SEAL KIT Ref. 9 & 10

Выбрано товаров: 11
