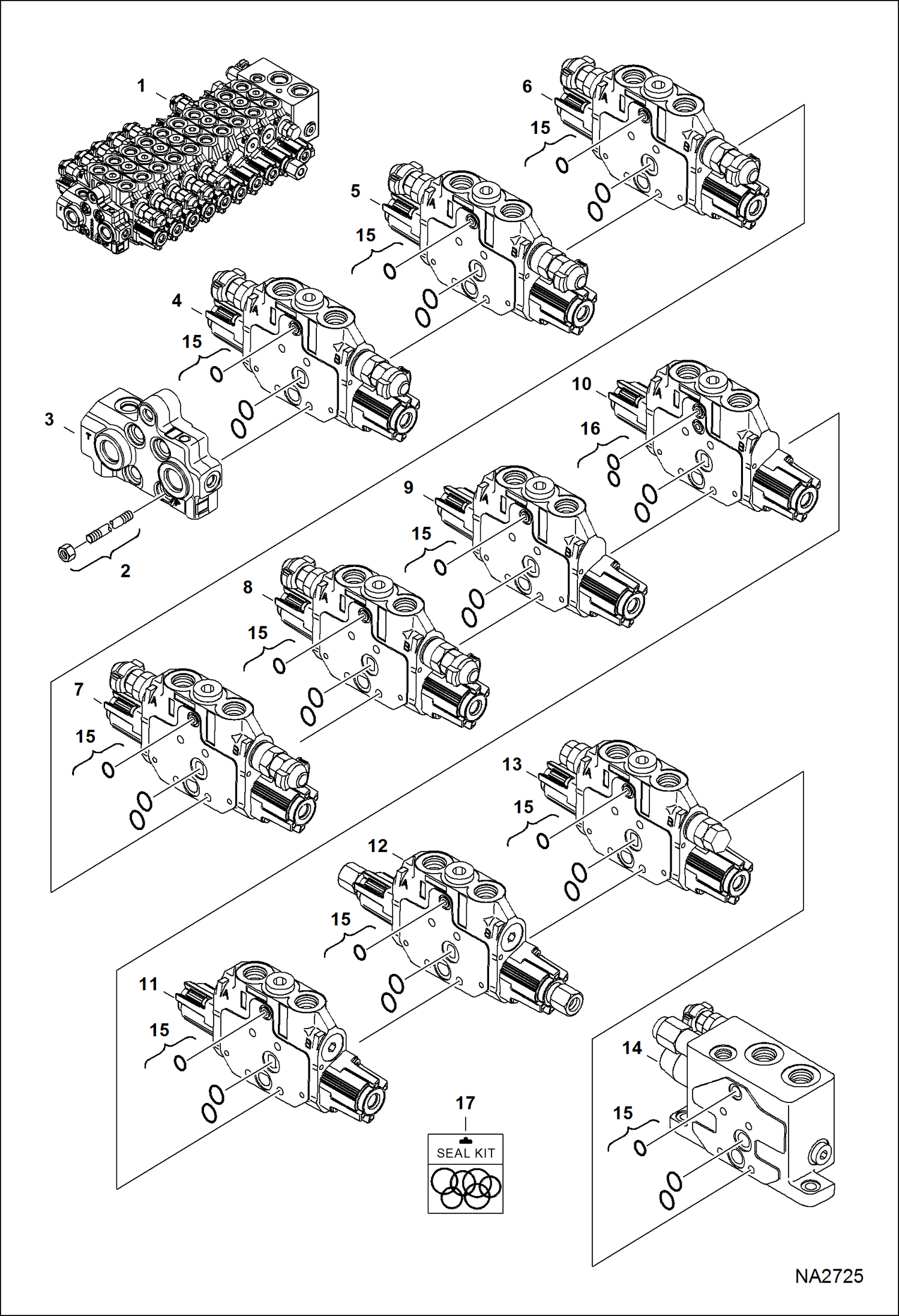

Запчасти Bobcat E45 HYDRAULIC CONTROL VALVE (10 Section Assembly) (W/ Angle Blade) HYDRAULIC SYSTEM

1

7001660

VALVE, CONTROL Ref. 2-16

2

7016140

KIT, ROD TIE

3

7016139

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5128 - outlet

4

7016137

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126 - bucket

5

7016135

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126A - arm

6

7016134

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126B - auxiliary

7

7016132

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126C - boom

8

7016131

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5126D - angle blade

9

7016130

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5222 - RH travel

10

7016129

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5222A - LH travel

11

7016128

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5125 - blade

12

7016127

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5228 - slew

13

7016124

SECTION, VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5124 - boom swing

14

6685238

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA5221 - inlet

15

6677467

KIT, SEAL

16

6677472

KIT,SEAL

17

7018031

KIT, SEAL includes Ref. 15, 16, & (10) 6677470 section assembly seal kits
