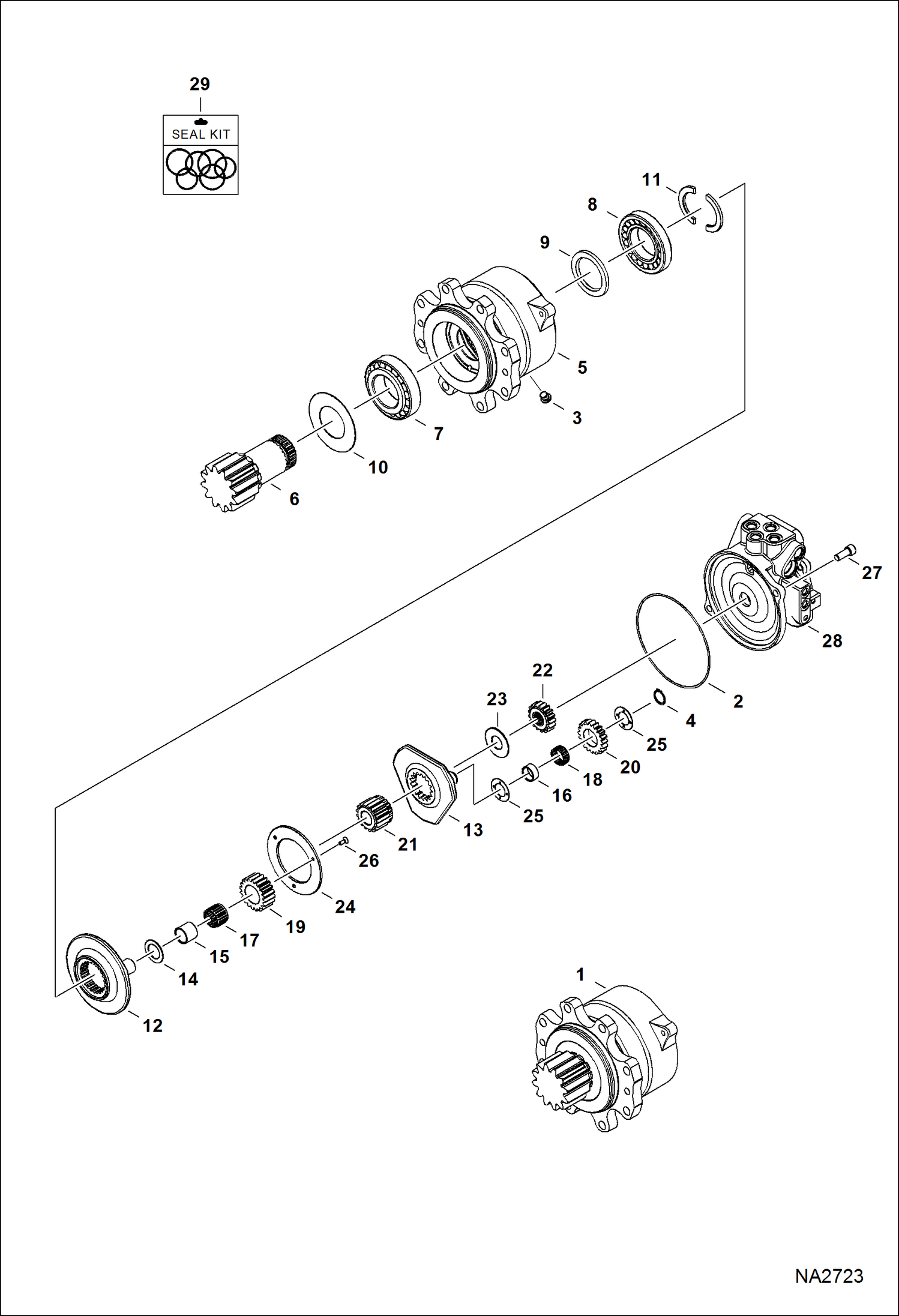

Запчасти Bobcat E45 SLEW MOTOR (Carrier) HYDRAULIC SYSTEM

1

CARRIER See Illustration SLEW MOTOR/ NA2669 NSS - Ref. 2-27

2

7019236

O-RING

3

7019242

PLUG

4

7019244

RING, SNAP

5

HOUSING NLA - Order 7013210 slew motor & (8) 60CM1640 bolts - discard existing spacer, bolts, and washers

5

HOUSING NLA - Order 7013210 slew motor

6

SHAFT, MOTOR NSS - Order 7013210 slew motor & (8) 60CM1640 bolts - discard existing spacer, bolts, and washers

6

7019295

SHAFT, MOTOR

7

7019248

BEARING, TAPERED ROLLER

8

7019249

BEARING, TAPERED ROLLER

9

7019250

SEAL, OIL

10

7019251

COVER, BEARING

11

7019252

COLLAR, HALF

12

7019253

CARRIER, MOTOR

13

7019254

CARRIER, MOTOR

14

7019255

WASHER, THRUST

15

7019256

RING, INNER

16

7019257

RING, INNER

17

7019258

BEARING, NEEDLE

18

7019259

BEARING, NEEDLE

19

7019260

GEAR, MOTOR

20

7019261

GEAR, MOTOR

21

7019262

GEAR, MOTOR

22

7019263

GEAR, MOTOR

23

7019264

WASHER, THRUST

24

7019265

PLATE

25

7019266

WASHER, THRUST

26

7019289

BOLT

27

7019245

BOLT

28

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA2669

29

7019213

KIT, SEAL Ref. 2 & 9 on this page and Ref. 24-27 & 38 on NA2669
