Запчасти Bobcat E45 LH JOYSTICK (S/N AG3G14001 & Above, AHHC13001 & Above) HYDRAULIC SYSTEM

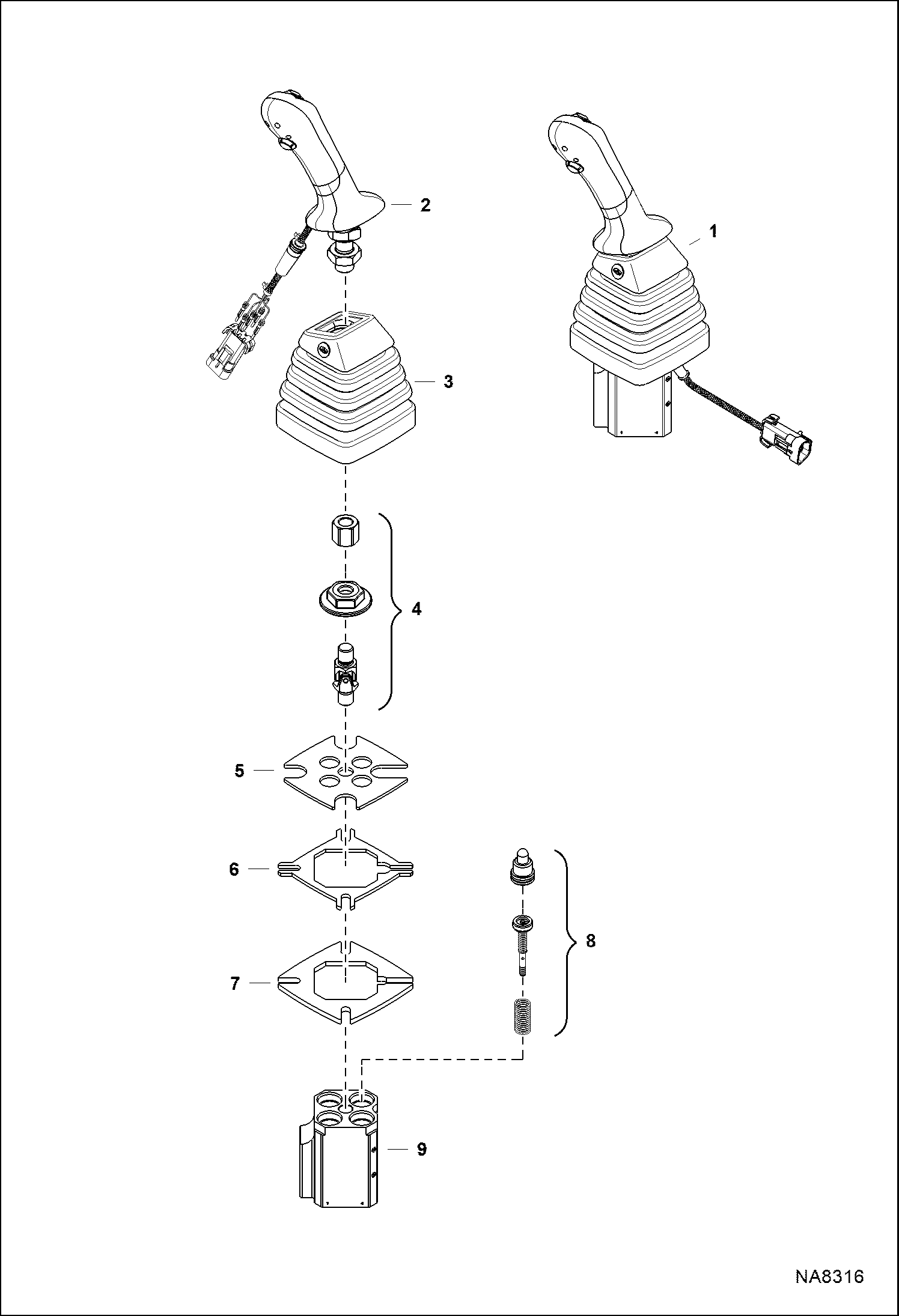

Схема запчастей Bobcat E45 - LH JOYSTICK (S/N AG3G14001 & Above, AHHC13001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7024440

JOYSTICK, LH ASSY Ref. 2-9

2

7031601

HANDLE, JOYSTICK

3

6692548

BOOT

4

6679956

KIT

5

FLANGE SQUARE BELLOW NSS - Order Ref. 9

6

FLANGE INTERMEDIATE NSS - Order Ref. 9

7

FLANGE INFERIOR NSS - Order Ref. 9

8

7028624

KIT PLUNGER

9

7031600

HOUSING, JOYSTICK W/Ref. 5-7

Выбрано товаров: 9
