Запчасти Bobcat E45 SELECTOR VALVE ASSY (JPS) (ISO/STD) HYDRAULIC SYSTEM

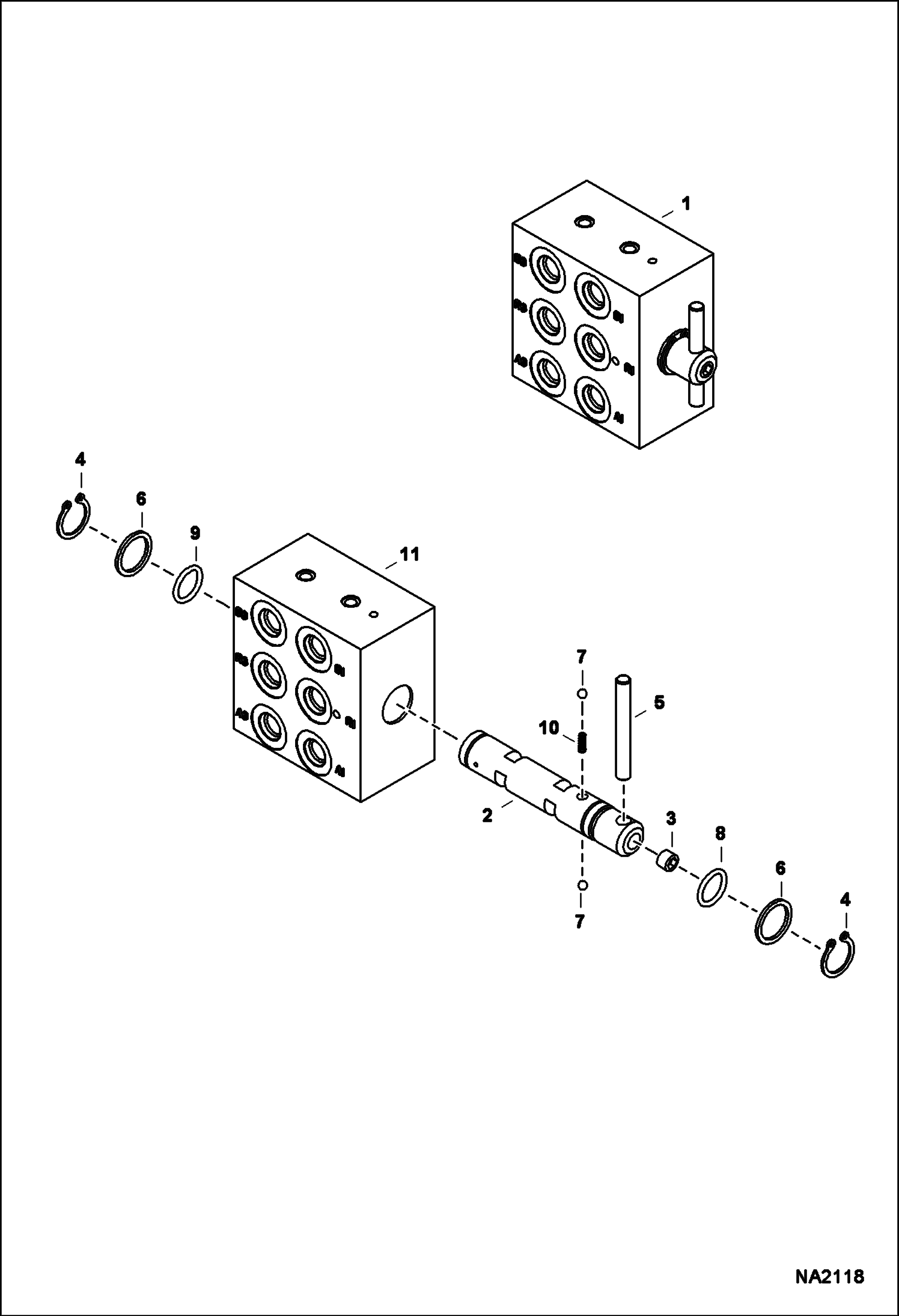

Схема запчастей Bobcat E45 - SELECTOR VALVE ASSY (JPS) (ISO/STD) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7193055

VALVE, JPS Ref. 2-11 - Was 7008308 - A

2

7022690

SPOOL - Was 7009343

3

7010037

SCREW

4

7009345

RING, SNAP

5

7010035

HANDLE

6

7010036

WASHER

7

7009348

BALL, 3/16 DIA

8

7009349

O-RING

9

6679499

O-RING

10

7009350

SPRING, SPOOL

11

BLOCK NSS - Order Ref. 1

Выбрано товаров: 11
