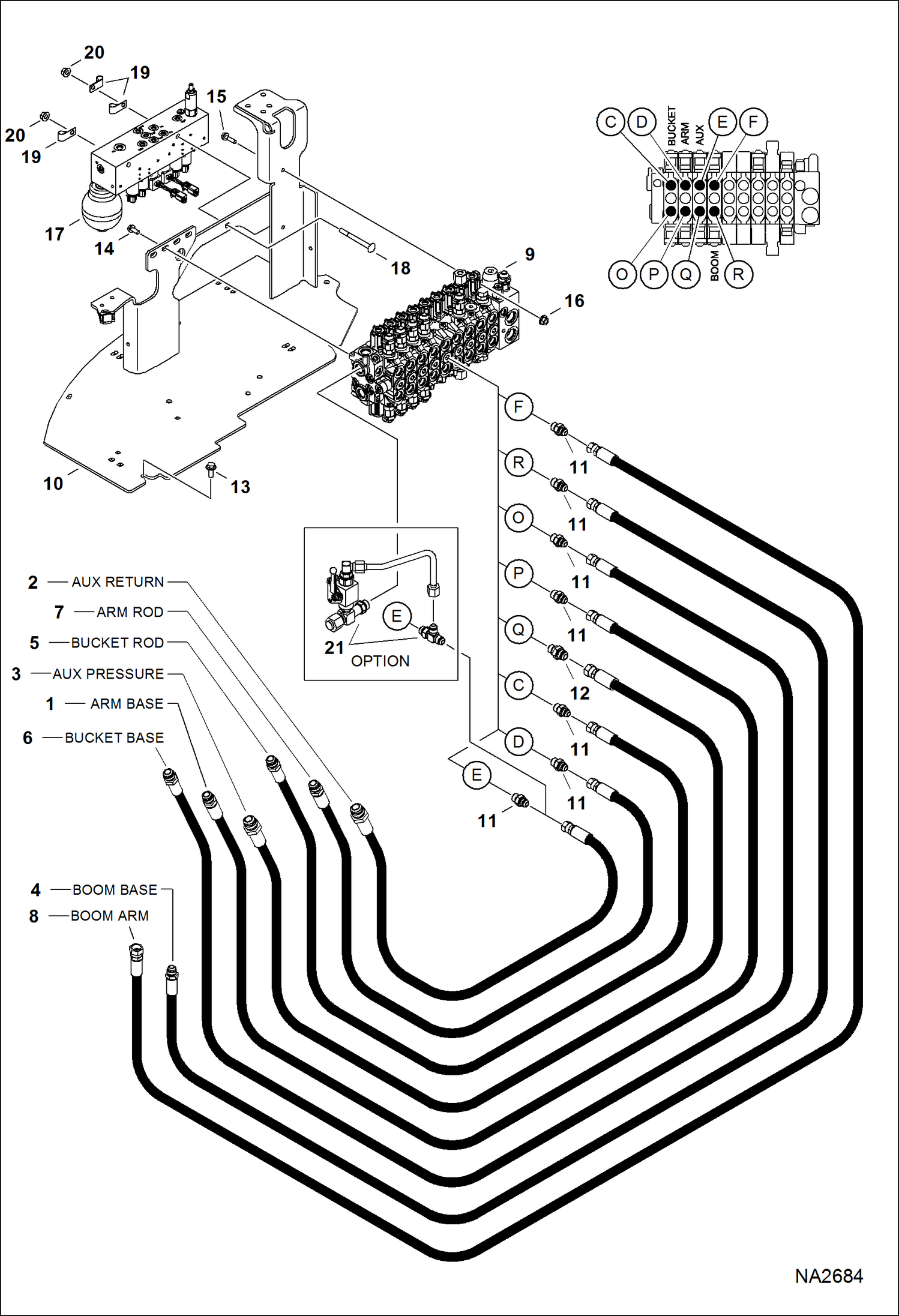

Запчасти Bobcat E45 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

1

7175230

HOSE, HYD

2

7175231

HOSE, HYD

3

7175232

HOSE, HYD

4

7175233

HOSE, HYD

5

7175283

HOSE, HYD

6

7175284

HOSE, HYD

7

7175285

HOSE, HYD

8

7175286

HOSE, HYD

9

7010255

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2724 9 section - W/O angle blade

9

7001660

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2725 10 section - W/ angle blade

10

7201805

MOUNT, VALVE Was 7174543 - A

11

15KB0808

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

15KB1008

FITTING, HYD CONNECTOR

12

79K8

O RING 10

13

29CM1025

BOLT

14

29CM820

SCREW

15

29CM830

CAPSCREW

16

43DM8

NUT

17

7023282

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA1976 W/O angle blade - Was 7176761 - A

17

7023283

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA1975 W/ angle blade - Was 7176625 - A

18

28CM10100

BOLT

19

30HJ608

CLAMP

20

43DM10

NUT

21

VALVE, OPTION See Illustration HYDRAULIC CIRCUITRY/ NA2621
