Запчасти Bobcat E45 HYDRAULIC CIRCUITRY (Lower)(W/ Angle Blade) HYDRAULIC SYSTEM

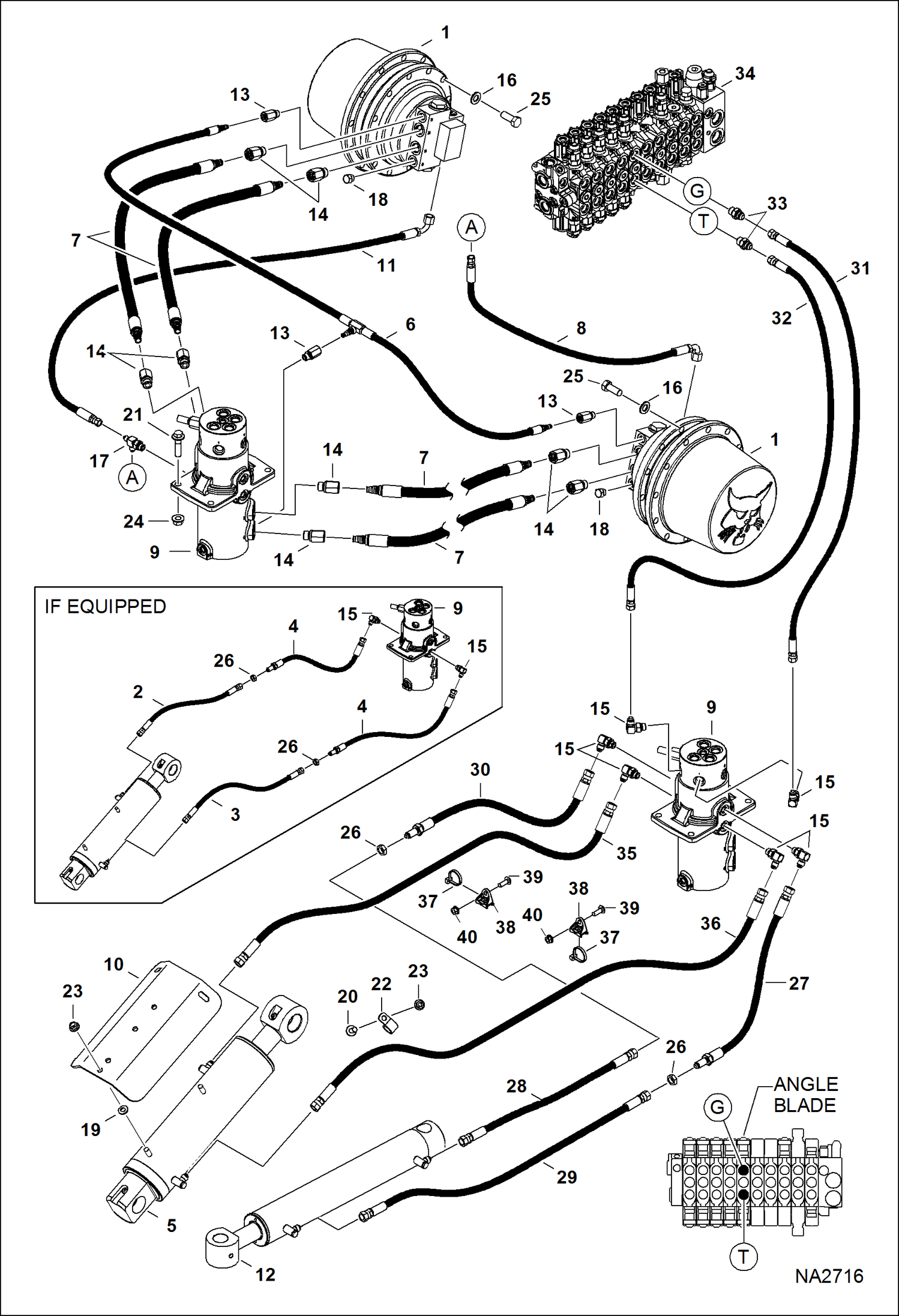

Схема запчастей Bobcat E45 - HYDRAULIC CIRCUITRY (Lower)(W/ Angle Blade) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7012323

MOTOR, DRIVE HYD TRAVEL See Illustration TRAVEL MOTOR/ D2403

2

7144048

HOSE, HYD .5625'' & .75'' fitting

2

7205336

HOSE, HYD .5625'' fittings

3

7144049

HOSE, HYD .5625'' & .75'' fitting

3

7205337

HOSE, HYD .5625'' fittings

4

7144058

HOSE, HYD

5

CYLINDER, BLADE See Illustration HYDRAULIC CIRCUITRY/ NA2716

6

7173031

HOSE, HYD ASSY Also Order Ref. 13

7

7174574

HOSE, HYD Also Order Ref. 14

8

7188111

HOSE, HYD

9

7152908

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2346

10

7188746

SHIELD, CYL

11

7190630

HOSE, HYD

12

CYLINDER, ANGLE BLADE See Illustration ANGLE BLADE CYLINDER/ NA2664

13

15HB0406

FITTING, HYD CONNECTOR Also Order hose

13

79K6

O RING 10

14

15HB0808

FITTING Also Order hose

14

78K8

O RING

15

17KB0606

FITTING

15

79K6

O RING 10

16

18EM1426

WASHER

17

21KB0406

FTG HYD STRAIGHT TEE

17

79K6

O RING 10

18

24K5

PLUG

18

79K6

O RING 10

19

25E17

WASHER 5

20

29CM1025

BOLT

21

29CM1250

BOLT

22

30H46

CLIP

23

43DM10

NUT

24

51DM12

NUT

25

55CM1435

SCREW

26

86F5

NUT

27

7144055

HOSE, HYD

28

7144064

HOSE, HYD

29

7144065

HOSE, HYD

30

7144066

HOSE, HYD

31

7177872

HOSE, HYD

32

7177873

HOSE, HYD

33

15KB0608

FITTING, HYD CONNECTOR

33

79K8

O RING 10

34

7001660

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2725
