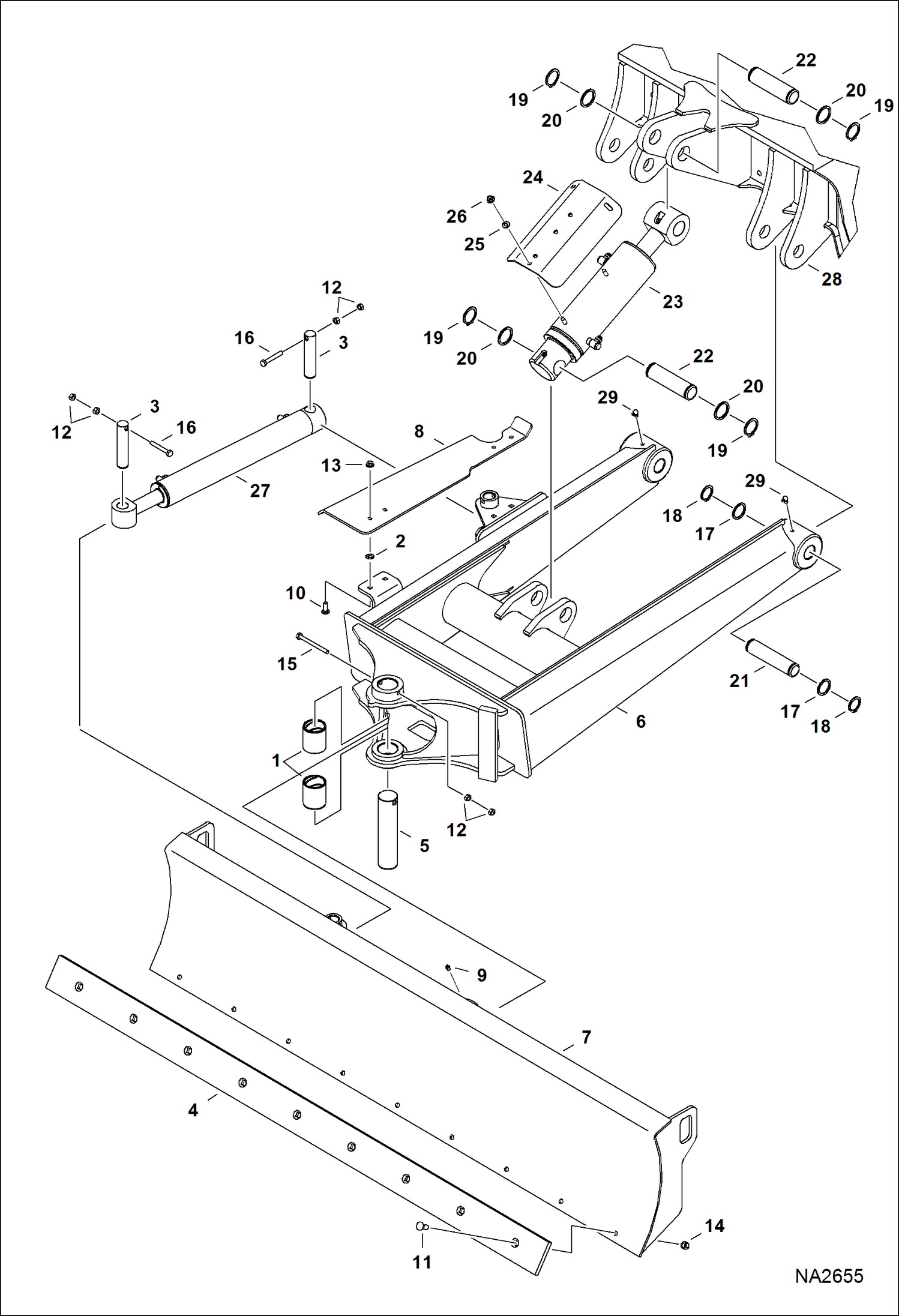

Запчасти Bobcat E45 ANGLE BLADE WORK EQUIPMENT

1

6597689

BUSHING, PRESS FIT

2

6674264

RETAINER NUT

3

6702935

PIN, PIVOT

4

7142520

EDGE, CUTTING BOLT-ON 78'' 9 hole

4

7208978

EDGE, CUTTING 11 hole

5

7142514

PIN, PIVOT

6

7142450

FRAME, BLADE ANGLE EXC

7

BLADE, ANGLE EXC NLA - 9 hole - Order 7213067 and Ref. 4 (7208978 cutting edge) - Was 7198564 - A

7

7213067

BLADE, ANGLE EXC 11 hole

8

7176116

GUARD, ANGLE BLADE

9

10H25

FITTING, GREASE 5

10

28CM1030

BOLT

11

39C820

BOLT

12

4DM10

NUT

13

51DM10

NUT

14

63D8

NUT

15

7CM10110

SCREW

16

7CM1070

BOLT

17

6666549

WASHER

18

6665618

RING

19

6668787

RING

20

6628547

WASHER

21

7143037

PIN, PIVOT Was 7142521 - A

22

7142522

PIN

23

CYLINDER, BLADE See Illustration BLADE CYLINDER/ NA2663

24

7188746

SHIELD, CYL

25

25E17

WASHER 5

26

43DM10

NUT

27

CYLINDER, ANGLE BLADE See Illustration ANGLE BLADE CYLINDER/ NA2664

28

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA2646

29

12H15

FITTING, GREASE 5
