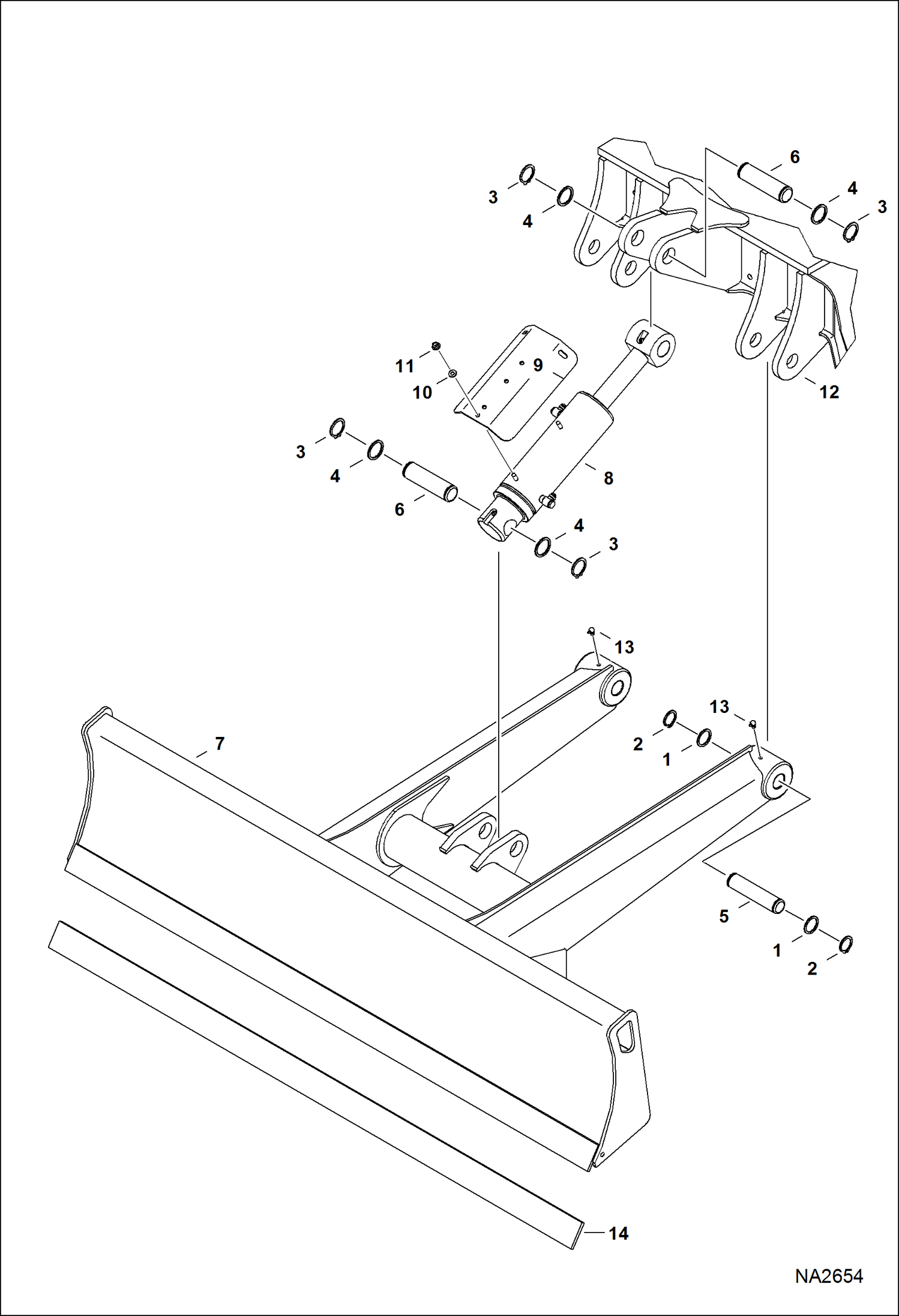

Запчасти Bobcat E45 BLADE WORK EQUIPMENT

1

6666549

WASHER

2

6665618

RING

3

6668787

RING

4

6628547

WASHER

5

7143037

PIN, PIVOT Was 7142521 - A

6

7142522

PIN

7

7142449

BLADE, EXC W/Ref. 14

8

CYLINDER, BLADE See Illustration BLADE CYLINDER/ NA2722 for standard blade

9

7188746

SHIELD, CYL

10

25E17

WASHER 5

11

43DM10

NUT

12

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA2646

13

12H15

FITTING, GREASE 5

14

EDGE, CUTTING WELD-ON 76 See BTI417

14

7230284

EDGE, CUTTING WELD-ON 76 Was 7142484 - A
