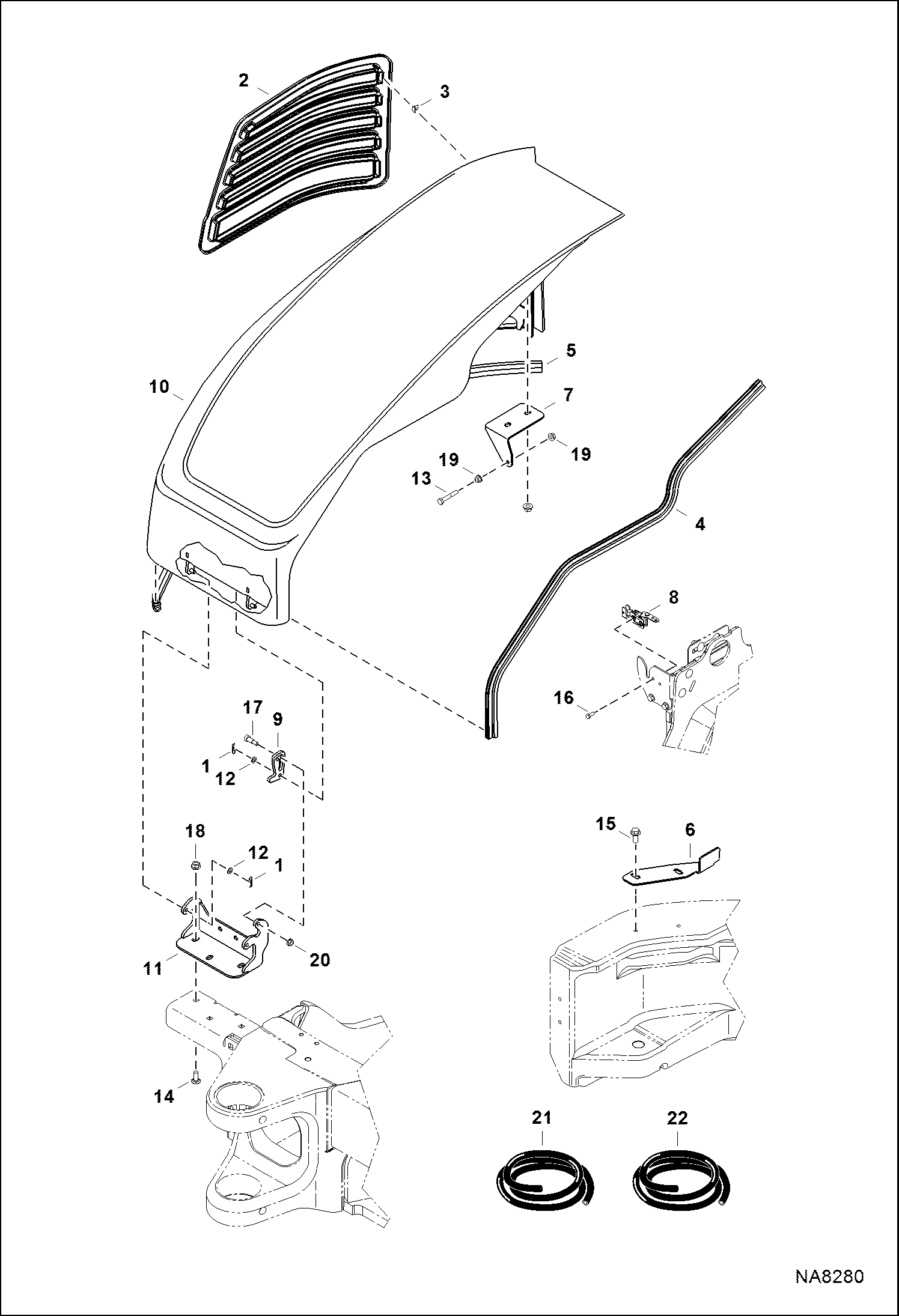

Запчасти Bobcat E45 RH COVER (W/ Bracket Hold Open) (S/N AG3G14001 & Above, AHHC13001 & Above) MAIN FRAME

1

6513495

COTTER PIN

2

7177100

SCREEN, OUTER

3

7178670

CLIP

4

SEAL, BULB NLA - 1162 mm (45.7'') long - Order Ref. 21

5

SEAL, BULB NLA - EMEA only - 1410 mm (55.5'') long - Order Ref. 22

6

7184225

BRACKET

7

7191716

BRACKET, LATCH

8

7206615

LATCH, COVER

9

7225801

BRACKET, HOLDING

10

7226788

COVER, RH

11

7226791

HINGE, COVER

12

15EM80

WASHER

13

1CM850

BOLT

14

28CM1025

BOLT

15

29CM1025

BOLT

16

29CM620

SCREW

17

38C610

BOLT

18

43DM10

NUT

19

43DM8

NUT

20

97D5

NUT

21

7160901

SEAL, BULB bulk - sold per foot

22

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot
