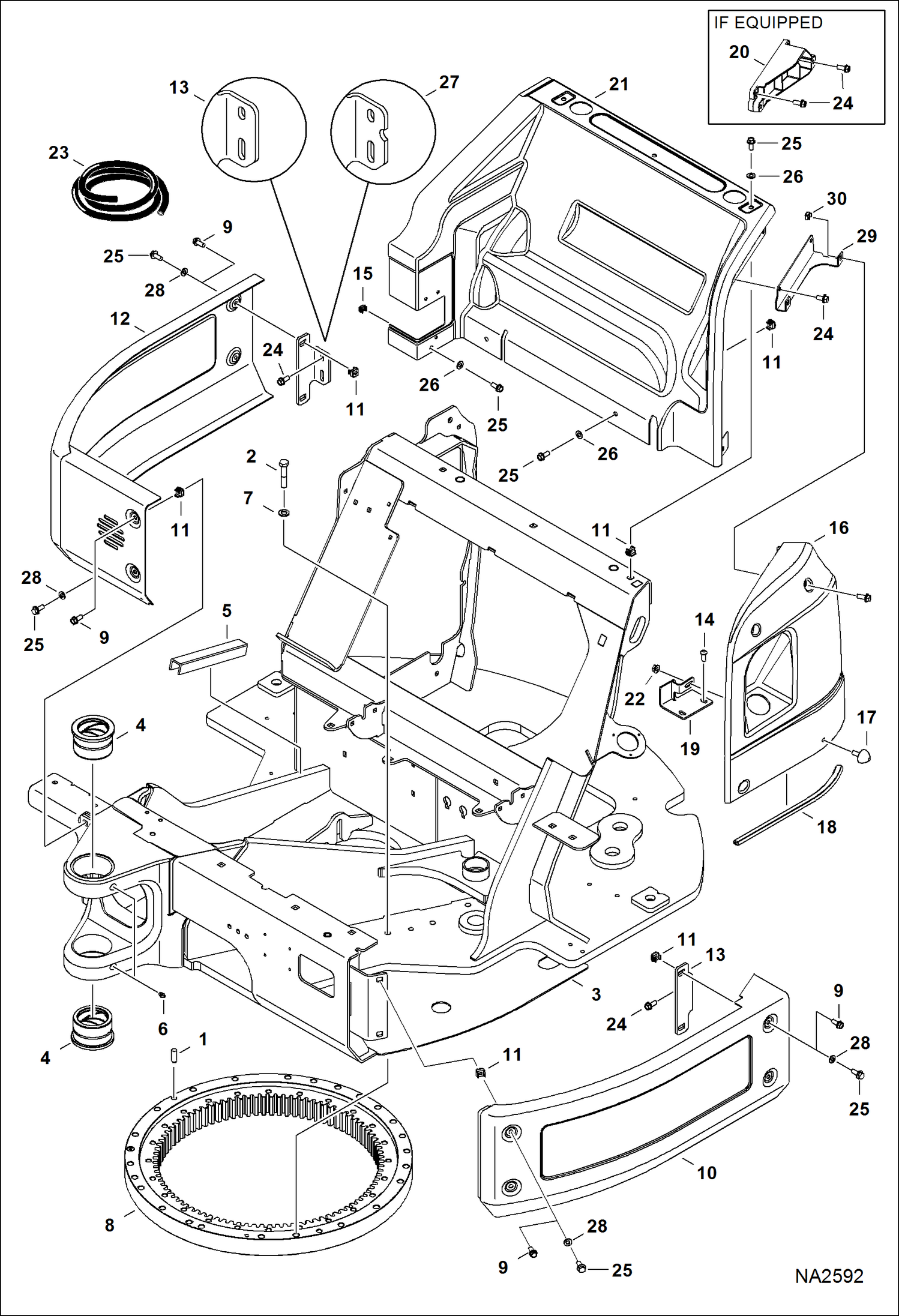

Артикул
Название
Примечание
Количество
1
7171260
PIN, PARALLEL
2
55CM1470
SCREW
3
7231076
UPPERSTRUCTURE Was 7172424 - A
4
BUSHING, PIVOT See Illustration BOOM SWING FRAME/ NA2558 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of 7198542 pin, 7198707 bushing, & 7196719 bushing - Was
4
7198707
BUSHING, PIVOT
5
7185431
GROMMET
7
18EM1426
WASHER
8
7021044
RING, SLEW See Illustration UNDERCARRIAGE/ NA2646 Was 6692962 - A
9
7009798
SCREW
10
7148372
CHANNEL, LH
11
7155413
NUT
12
7168598
COVER, RH
13
7177373
BRACKET, COVER SIDE
14
6817769
BOLT
15
7155411
NUT
16
7175138
COVER, LH
17
7178703
BUMPER, RUBBER
18
SEAL, BULB NLA - 18'' (457 mm) - Order Ref. 23
19
7220347
COVER, LH Was 7182491 - A
20
7183989
BRACKET
21
7187133
PANEL, ENGINE
22
43DM10
NUT
23
7170493
SEAL, BULK, BULB BULK/FT bulk - sold per foot
24
29CM1025
BOLT Was 7009798 - B
25
29CM1025
BOLT Was 1CM1025 - B
26
15EM100
WASHER Used W/bolt W/O flange - Was 1EM100 - B
27
7205949
BRACKET, COVER SIDE W/identifier notch and unique slot location - replaces bracket W/notch for proper alignment of RH cover with some counterweights
Выбрано товаров: 28
