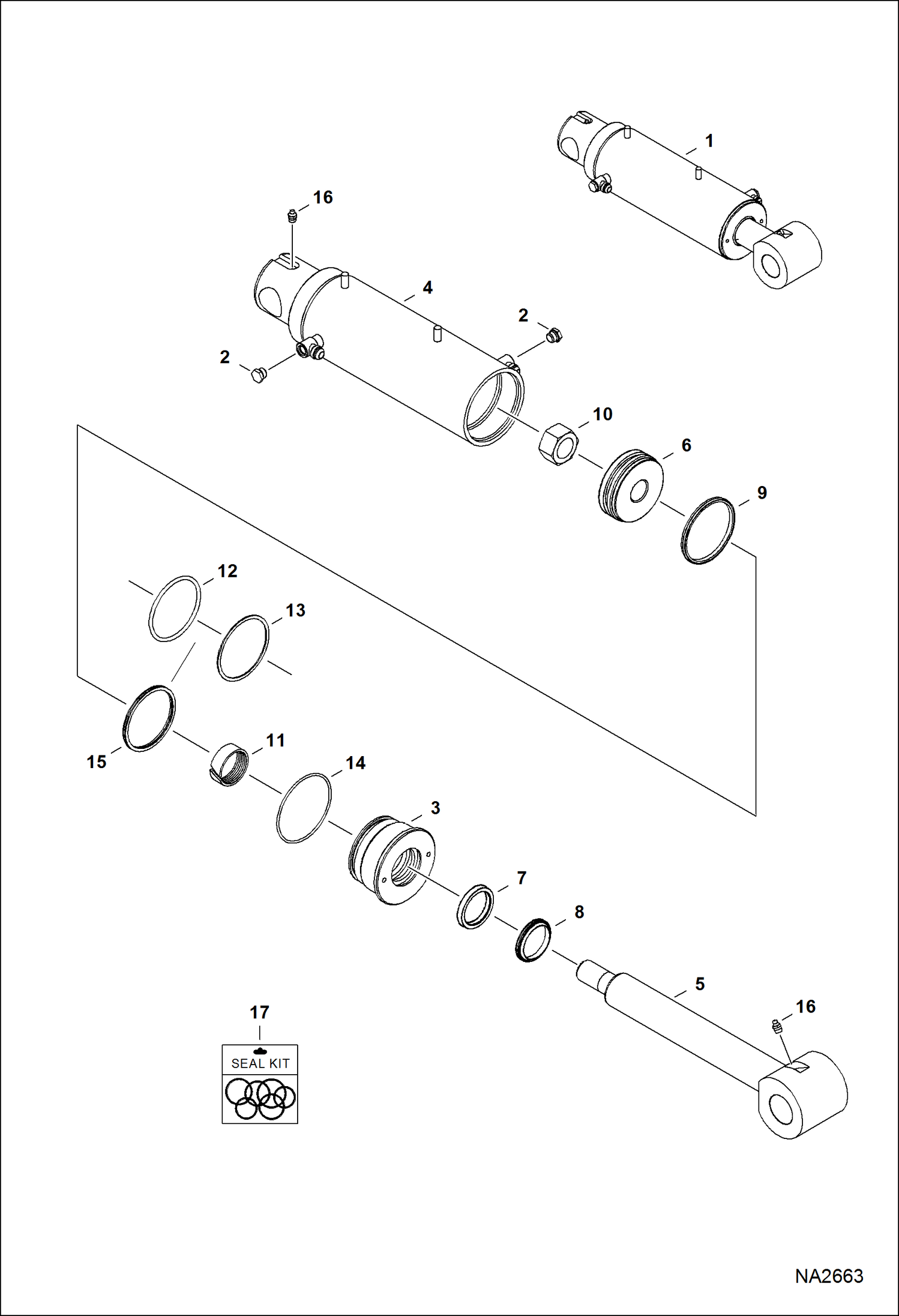

Запчасти Bobcat E45 BLADE CYLINDER (Lift)(Angle Blade) HYDRAULIC SYSTEM

1

7165711

CYLINDER, BLADE Ref. 2-15 - Also Order Ref. 16

2

6812171

PLUG

2

75K6

O-RING

3

7104264

HEAD

4

7165713

TUBE, CASE CYL W/Ref. 2 & 14 - Also Order Ref. 16

5

7165715

ROD, CYL Also Order Ref. 16

6

7165718

PISTON, CYL

7

6667328

SEAL

8

6686998

WIPER, ROD CYL

9

6692808

O-RING

10

6810540

NUT

11

7000772

RING, WEAR

12

25K60320

O RING 10

13

73K342

RING

14

82K242

O-RING

15

7008351

SEAL, QUAD

16

10H25

FITTING, GREASE 5

17

KIT, SEAL NLA - Ref. 7-14 - Was 7165725 - A

17

7196449

KIT, SEAL Ref. 7-11, 14 & 15
