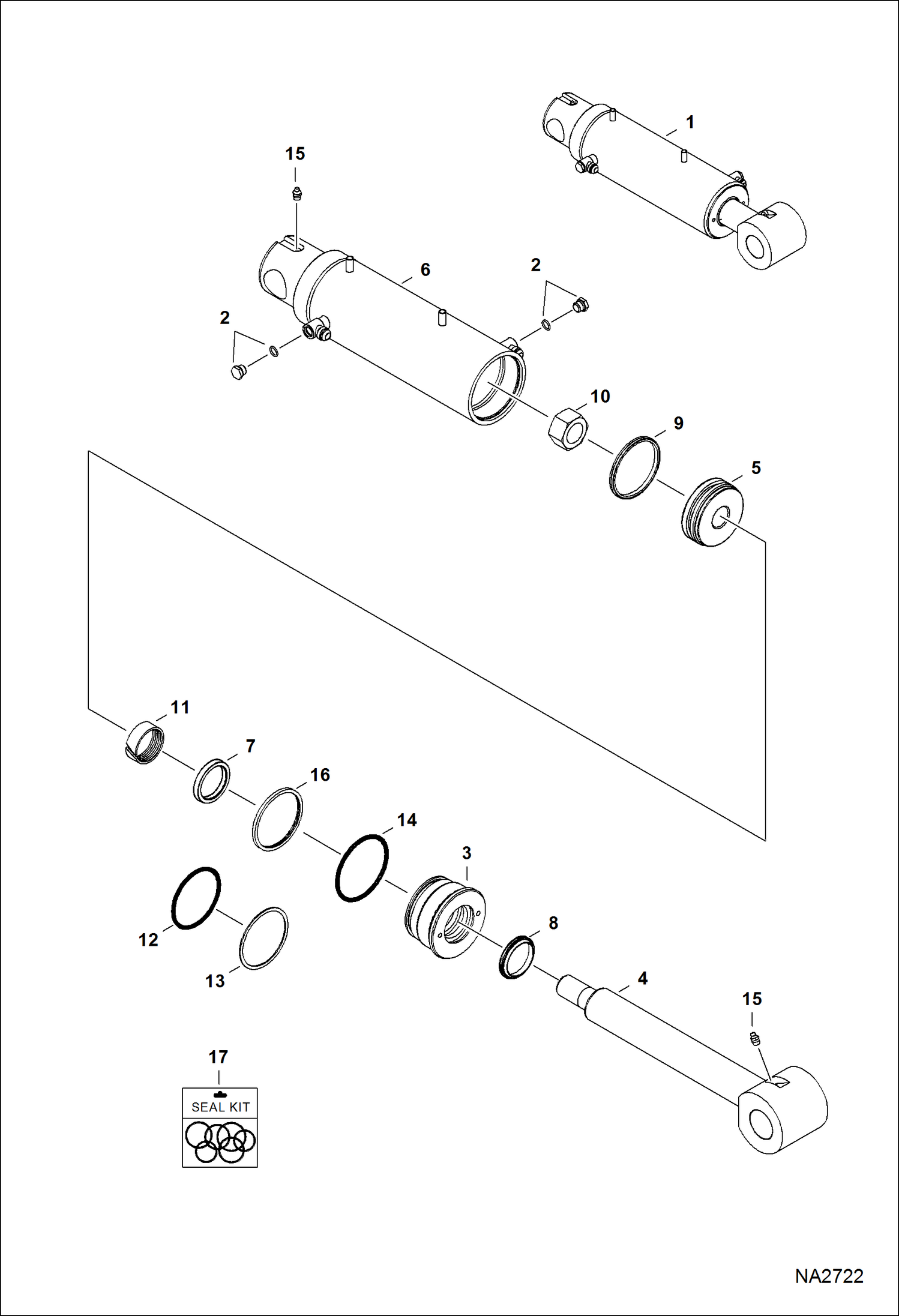

Запчасти Bobcat E45 BLADE CYLINDER (Lift)(Standard Blade) HYDRAULIC SYSTEM

1

CYLINDER, BLADE NLA - W/.5625 fittings - Order Ref. 1 - Also Order (1) each of hoses 7205336 & 7205337 - Was 7188930 - A

1

7201732

CYLINDER, BLADE W/.375'' fittings - Ref. 2-14 - Also Order Ref. 15 - A

2

6812171

PLUG .5625'' OD - Use W/NLA cylinder

2

75K6

O-RING

2

6812170

PLUG .375'' OD

2

75K3

O-RING

3

6815090

HEAD

4

7165715

ROD, CYL Also Order Ref. 15

5

7188134

PISTON, CYL

6

TUBE, CASE CYL NLA - W/.75'' fittings - Order Ref. 6 - Also Order (1) each of hoses 7106389 & 7144956 - Was 7188932 - A

6

7201733

TUBE, CASE CYL W/.5625 fittings - Ref. 2 & 14 - Also Order Ref. 15 - A

7

6667328

SEAL

8

6686998

WIPER, ROD CYL

9

6692807

SEAL

10

6810540

NUT

11

7000772

RING, WEAR

12

58K340

O RING 10

13

73K340

BKUP RING

14

82K240

O-RING

15

10H25

FITTING, GREASE 5

16

7008352

SEAL, QUAD

17

7196481

KIT, SEAL Ref. 7-11, 14 & 16 - Was 7161987 - A
