Запчасти Bobcat E42 HYDRAULIC CIRCUITRY (Pilot W/O JPS) HYDRAULIC SYSTEM

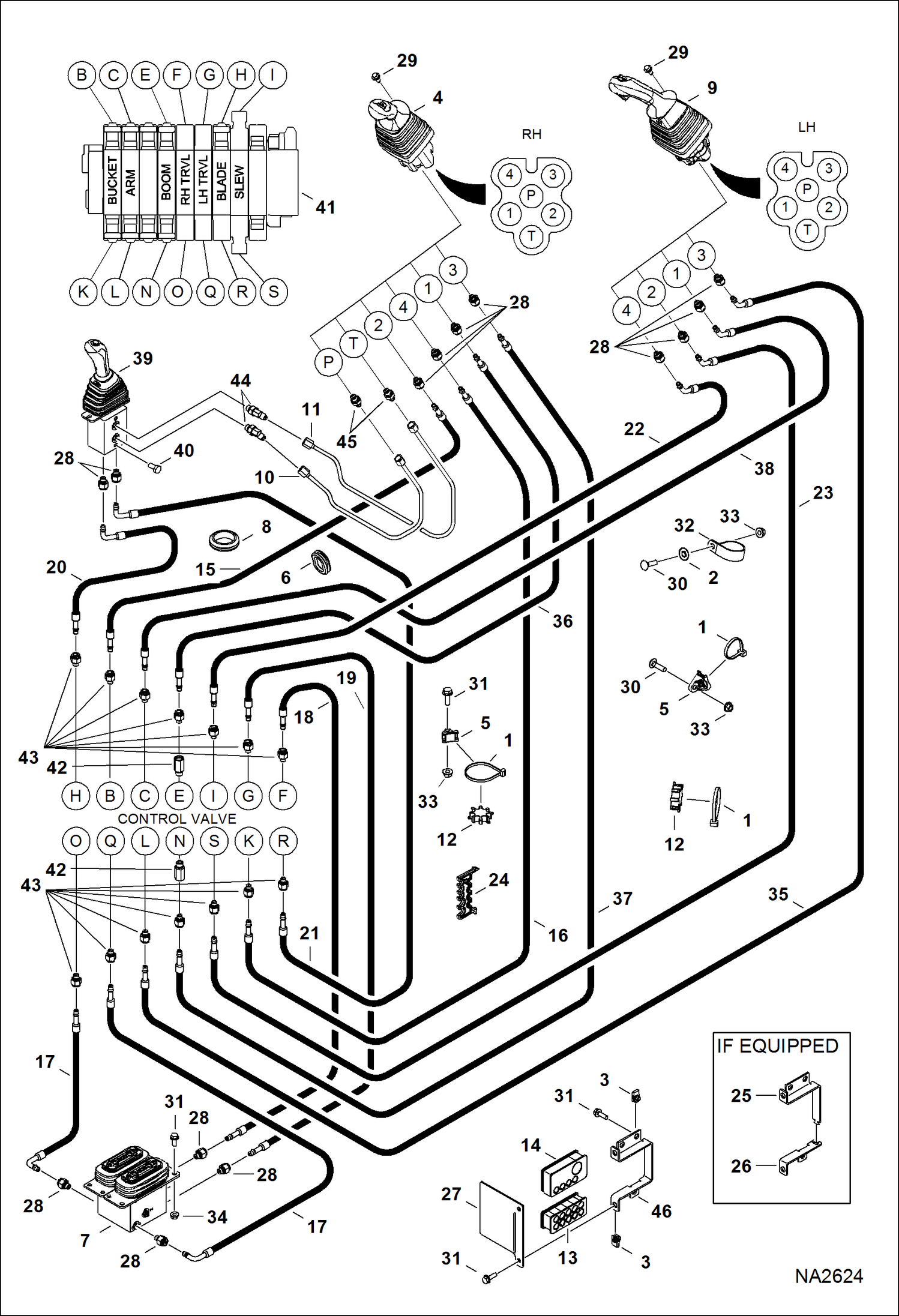

Схема запчастей Bobcat E42 - HYDRAULIC CIRCUITRY (Pilot W/O JPS) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6675859

RETAINER

3

6676169

NUT

4

JOYSTICK See Illustration RH JOYSTICK/ MS1352

5

6678818

MOUNT

6

6681886

GROMMET

7

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

8

6806443

GROMMET

9

LEVER, JOYSTICK W/PWM See Illustration LH JOYSTICK/ NA2224

10

7164909

HOSE, HYD ASSY

10

7191228

TUBELINE, HYD

11

7164910

HOSE, HYD ASSY

11

7191229

TUBELINE, HYD

12

CLIP, HOSE NLA - Was 7169988 - A

13

7175013

GUIDE, HOSE

14

7223146

GUIDE, HOSE Was 7175014 - A

15

7175214

HOSE, HYD Was 7175183 - A

16

7175184

HOSE, HYD

17

7175186

HOSE, HYD

18

7175191

HOSE, HYD

19

7175192

HOSE, HYD

20

7175193

HOSE, HYD

21

7175194

HOSE, HYD

22

7175195

HOSE, HYD

23

7175196

HOSE, HYD

24

7178575

CLIP, HOSE

25

7178918

BRACKET

26

7178919

BRACKET

27

7178989

PLATE

28

10L0604

FITTING, HYD CONNECTOR

28

78K4

O'RING

28

7011053

CLIP

29

26GM8020

SCREW

30

28CM830

BOLT

31

29CM825

BOLT

32

30H85

CLAMP

33

43DM8

NUT

34

51DM8

NUT

35

7175213

HOSE, HYD

36

7175214

HOSE, HYD

37

7175215

HOSE, HYD

38

7176974

HOSE, HYD

39

7008581

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2308 W/O angle blade

39

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2339 W/ angle blade

40

1CM816

BOLT

41

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2566 9 section - W/O angle blade

41

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2567 10 section - W/ angle blade

42

7012494

ORIFICE

42

79K6

O RING 10

43

10L0606

FITTING, HYD CONNECTOR

43

78K6

O'RING

43

7011053

CLIP

44

10L0604

FITTING, HYD CONNECTOR Use W/hoses

44

78K4

O'RING

44

7011053

CLIP

44

18KB0404

FTG HYD ELBOW 45 Use W/tubelines

44

79K4

O RING 10

45

10L0604

FITTING, HYD CONNECTOR Use W/hoses

45

78K4

O'RING

45

7011053

CLIP

45

15KB0404

FTG HYD S Connector Use W/tubelines

45

79K4

O RING 10
