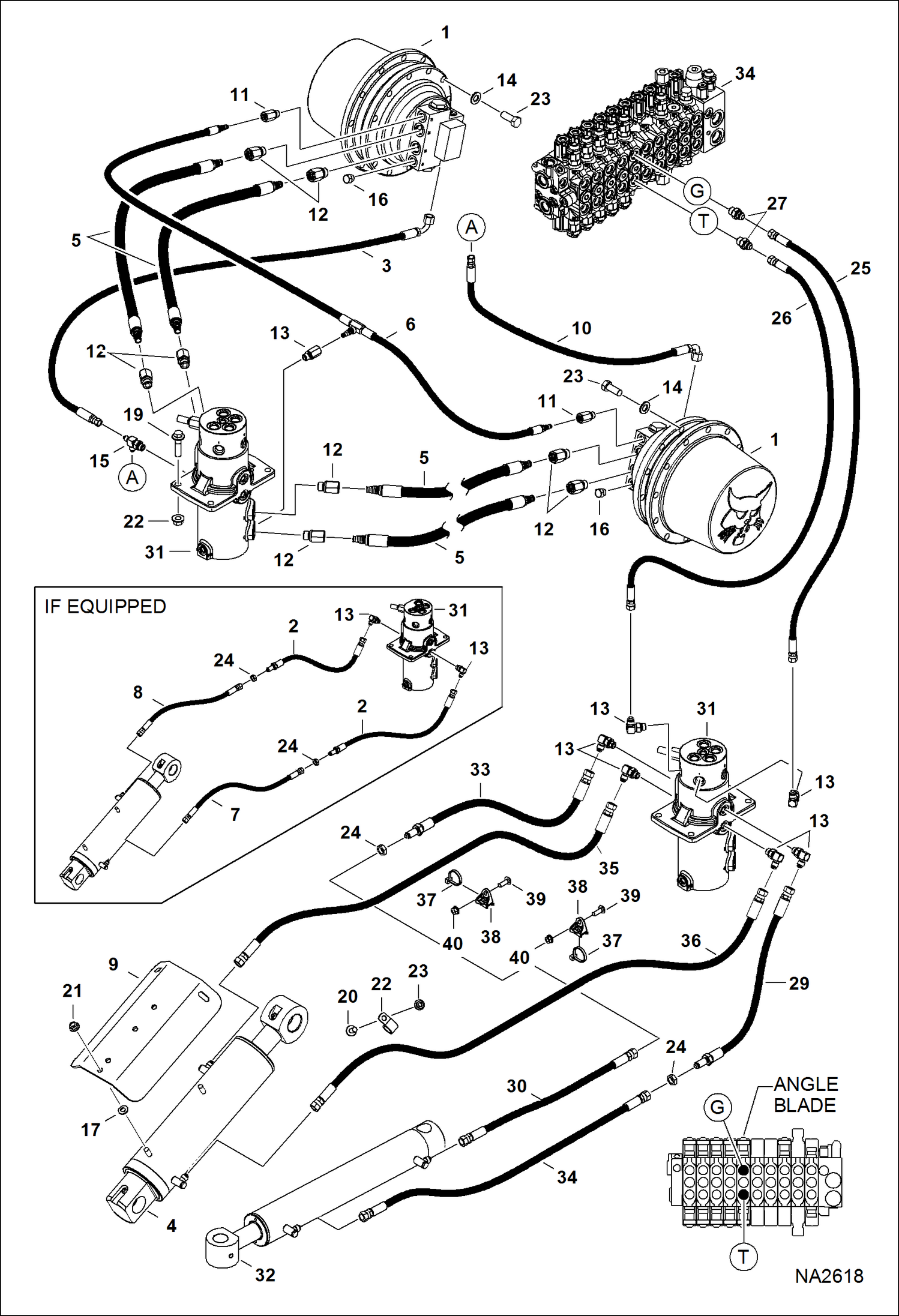

Запчасти Bobcat E42 HYDRAULIC CIRCUITRY (Lower)(W/ Angle Blade) HYDRAULIC SYSTEM

1

6691497

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2403

2

7143712

HOSE, HYD ASSY

3

7143783

HOSE

4

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3923

5

7178221

HOSE, HYD Also Order Ref. 12

6

7178222

HOSE, HYD Also Order Ref. 11

7

7178224

HOSE, HYD

8

7180590

HOSE, HYD

9

7188746

SHIELD, CYL

10

7190630

HOSE, HYD

11

15HB0406

FITTING, HYD CONNECTOR Also Order hose

11

78K6

O'RING

12

15HB0808

FITTING Also Order hose

12

78K8

O RING

13

17KB0606

FITTING

13

79K6

O RING 10

14

18EM1426

WASHER

15

21KB0406

FTG HYD STRAIGHT TEE

15

79K6

O RING 10

16

24K5

PLUG

16

79K6

O RING 10

17

25E17

WASHER 5

18

29CM1025

BOLT

19

29CM1250

BOLT

20

30H46

CLIP

21

43DM10

NUT

22

51DM12

NUT

23

55CM1435

SCREW

24

86F5

NUT

25

7178990

HOSE, HYD

26

7178991

HOSE, HYD

27

15KB0608

FITTING, HYD CONNECTOR

27

79K8

O RING 10

28

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2567

29

7143740

HOSE, HYD ASSY

30

7144064

HOSE, HYD

31

7152908

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2346

32

CYLINDER, ANGLE BLADE See Illustration ANGLE BLADE CYLINDER/ PE3922

33

7174627

HOSE, HYD ASSY

34

7178228

HOSE, HYD
