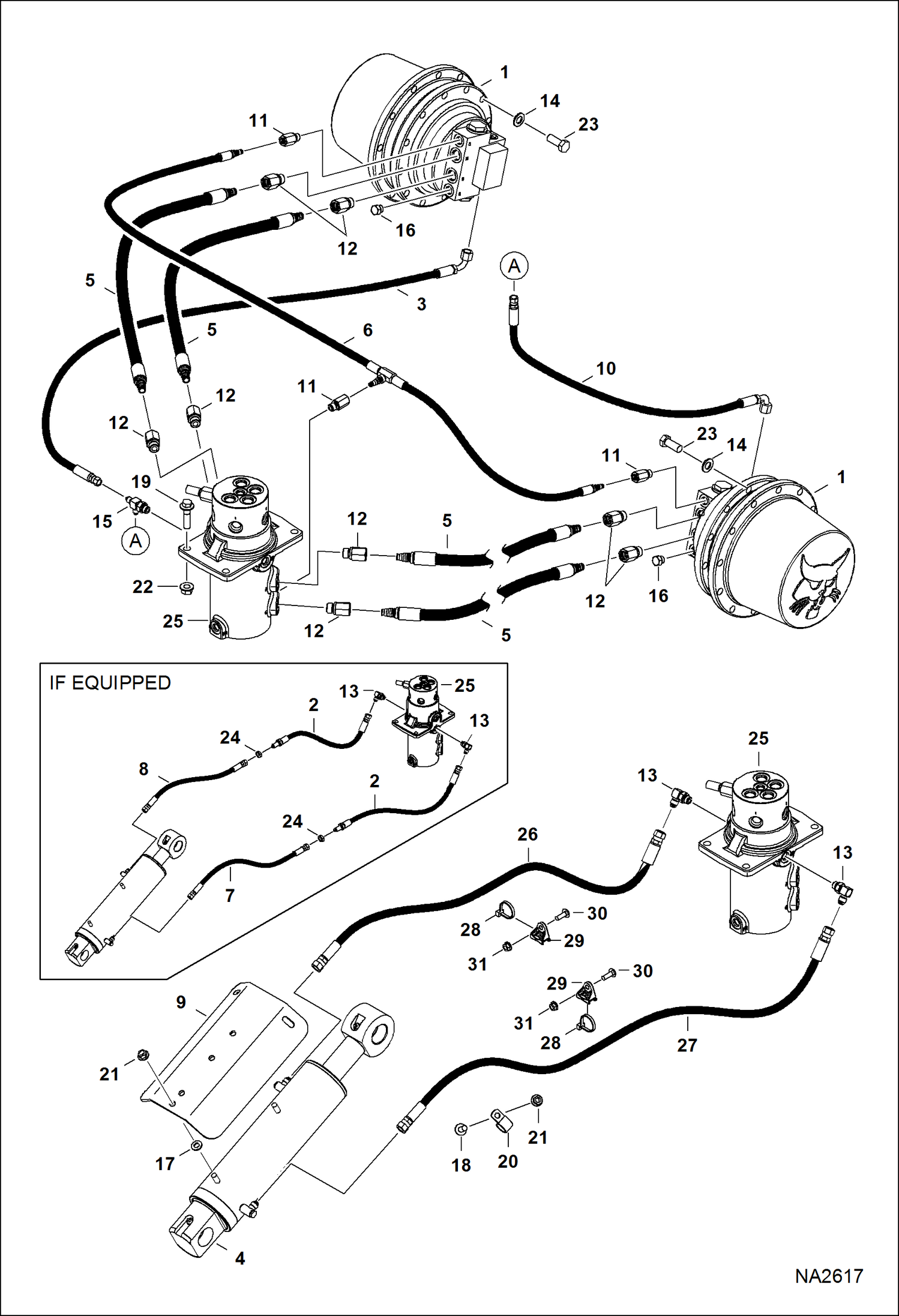

Запчасти Bobcat E42 HYDRAULIC CIRCUITRY (Lower)(W/O Angle Blade) HYDRAULIC SYSTEM

1

6691497

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2403

2

7143712

HOSE, HYD ASSY

3

7143783

HOSE

4

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3923

5

7178221

HOSE, HYD Also Order Ref. 12

6

7178222

HOSE, HYD Also Order Ref. 11

7

7178224

HOSE, HYD

8

7180590

HOSE, HYD

9

7188746

SHIELD, CYL

10

7190630

HOSE, HYD

11

15HB0406

FITTING, HYD CONNECTOR Also Order hose

11

78K6

O'RING

12

15HB0808

FITTING Also Order hose

12

78K8

O RING

13

17KB0606

FITTING

13

79K6

O RING 10

14

18EM1426

WASHER

15

21KB0406

FTG HYD STRAIGHT TEE

15

79K6

O RING 10

16

24K5

PLUG

16

79K6

O RING 10

17

25E17

WASHER 5

18

29CM1025

BOLT

19

29CM1250

BOLT

20

30H46

CLIP

21

43DM10

NUT

22

51DM12

NUT

23

55CM1435

SCREW

24

86F5

NUT

25

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262
