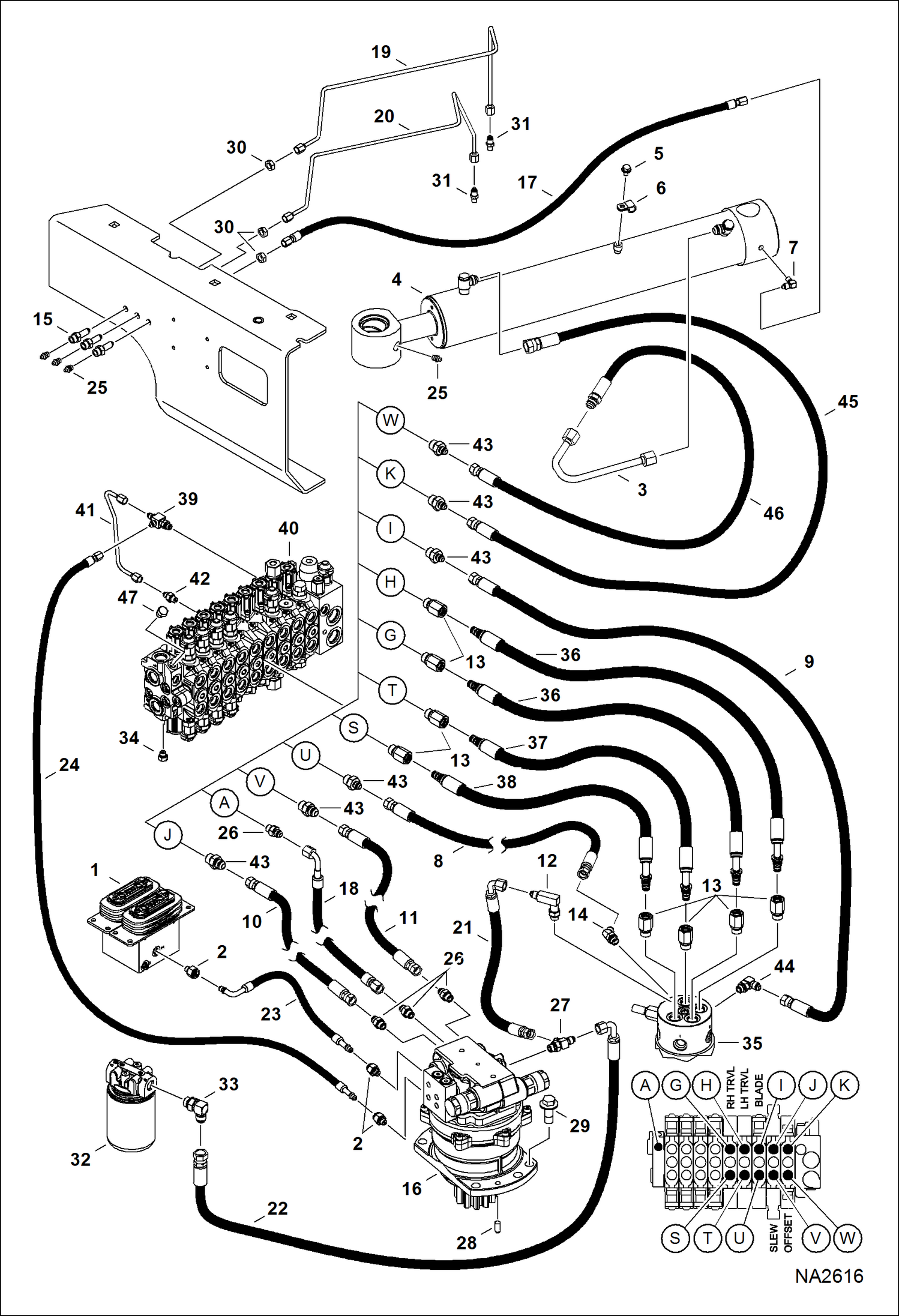

Запчасти Bobcat E42 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

2

10L0604

FITTING, HYD CONNECTOR

2

78K4

O'RING

2

7011053

CLIP

3

7165994

TUBELINE, HYD

4

CYLINDER, BOOM SWING See Illustration BOOM SWING CYLINDER/ NA1936

5

29CM812

BOLT

6

30H30

CLAMP

7

83F3

ELBOW 5

8

7178777

HOSE, HYD

9

7178778

HOSE, HYD

10

7185239

HOSE, HYD

11

7185240

HOSE, HYD

12

7128584

ELBOW

12

79K6

O RING 10

13

15HB0808

FITTING Also Order hose

13

78K8

O RING

14

18KB0606

FITTING, HYD ELBOW if equipped - 45 degree

14

17KB0606

FITTING 90 degree

14

79K6

O RING 10

14

17KB0606

FITTING 90 degree

15

6807184

FITTING

16

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA2309 W/ timer valve

16

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA8167 W/O timer valve

17

7145016

HOSE ASSY if equipped

18

7164951

HOSE, HYD ASSY

19

7178516

TUBELINE, HYD

20

7178517

TUBELINE, HYD

21

7178781

HOSE, HYD

22

7178782

HOSE, HYD

23

7178784

HOSE, HYD

24

7178785

HOSE, HYD

25

10H25

FITTING, GREASE 5

26

15KB0606

FITTING, HYD CONNECTOR

26

79K6

O RING 10

27

21KB0606

FTG HYD STRAIGHT TEE

27

79K6

O RING 10

28

23JM1024

PIN HARDENED PARALLE

29

60CM1640

SCREW

30

86F3

LOCKNUT

31

89F3

ADAPTOR

32

6686217

FILTER ASSY See Illustration HYDRAULIC CIRCUITRY/ NA2623

32

6516722

FILTER

33

17KB0808

FITTING, HYD ELBOW

33

79K8

O RING 10

34

24K3

PLUG

34

79K4

O RING 10

35

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262 W/O angle blade

35

7152908

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2346 W/ angle blade

36

7189785

HOSE, HYD 28.5'' (724 mm) long - W/ angle blade - Also Order Ref. 13

36

7189788

HOSE, HYD 29.63'' (753 mm) long - W/O angle blade - Also Order Ref. 13

37

7189786

HOSE, HYD 26.75'' (680 mm) long - W/ angle blade - Also Order Ref. 13

37

7189789

HOSE, HYD 27.88'' (708 mm) long - W/O angle blade - Also Order Ref. 13

38

7189787

HOSE, HYD 28'' (711 mm) long - W/ angle blade - Also Order Ref. 13

38

7189790

HOSE, HYD 29.13'' (740 mm) long - W/O angle blade - Also Order Ref. 13

39

7023611

VALVE, SHUTTLE Was 6697919 - A

39

79K4

O RING 10

40

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2566 - 9 section - W/O angle blade

40

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2567 - 10 section - W/ angle blade

41

7176766

TUBELINE, HYD

42

15KB0404

FTG HYD S Connector

42

79K4

O RING 10

43

15KB0608

FITTING, HYD CONNECTOR

43

79K4

O RING 10

44

17KB0606

FITTING

44

79K6

O RING 10

45

7176115

HOSE, HYD W/O 2nd aux

46

7179626

HOSE, HYD W/O 2nd aux

47

24K5

PLUG - W/O 2nd aux

47

79K6

O RING 10

47

FITTING See Illustration SECONDARY AUXILIARY KIT/ NA2582 - W/ 2nd aux
