Запчасти Bobcat E42 THROTTLE CONTROL CONTROLS

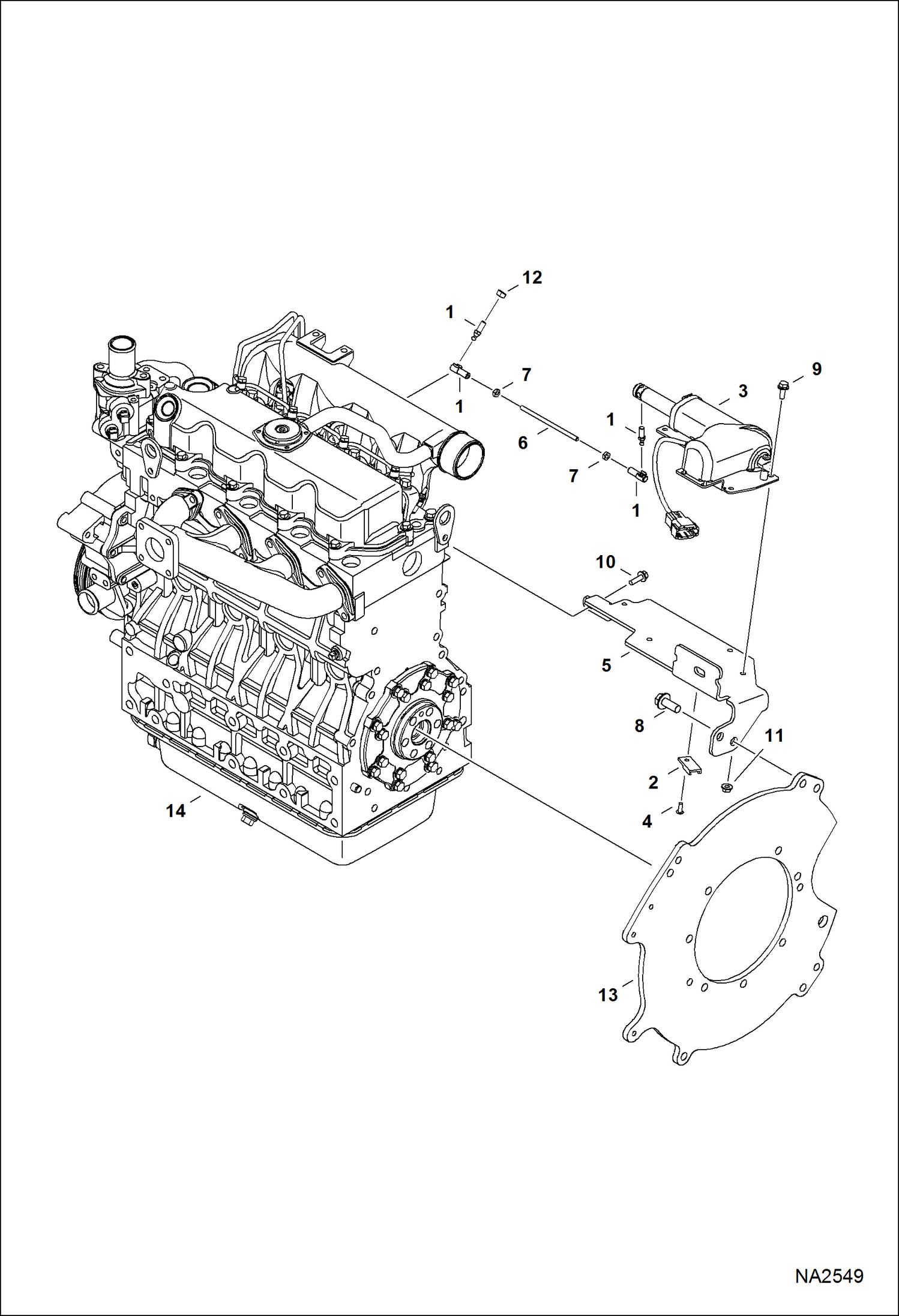

Схема запчастей Bobcat E42 - THROTTLE CONTROL CONTROLS

Артикул

Название

Примечание

Количество

1

6644965

BALL JOINT

2

6665000

CLIP

3

6698169

ACTUATOR, THROTTLE

4

6814428

RIVET

5

7174029

BRACKET, THROTTLE

6

7162140

LINK, THROTTLE

7

14D10

NUT

8

29CM1025

BOLT

9

29CM616

BOLT

10

29CM620

SCREW

11

51DM6

NUT

12

62D4

NUT

13

PLATE, FLYWHEEL See Illustration ENGINE & ATTACHING PARTS/ NA2563

14

ENGINE See Illustration ENGINE & GASKET KITS/ NA1527

Выбрано товаров: 14
