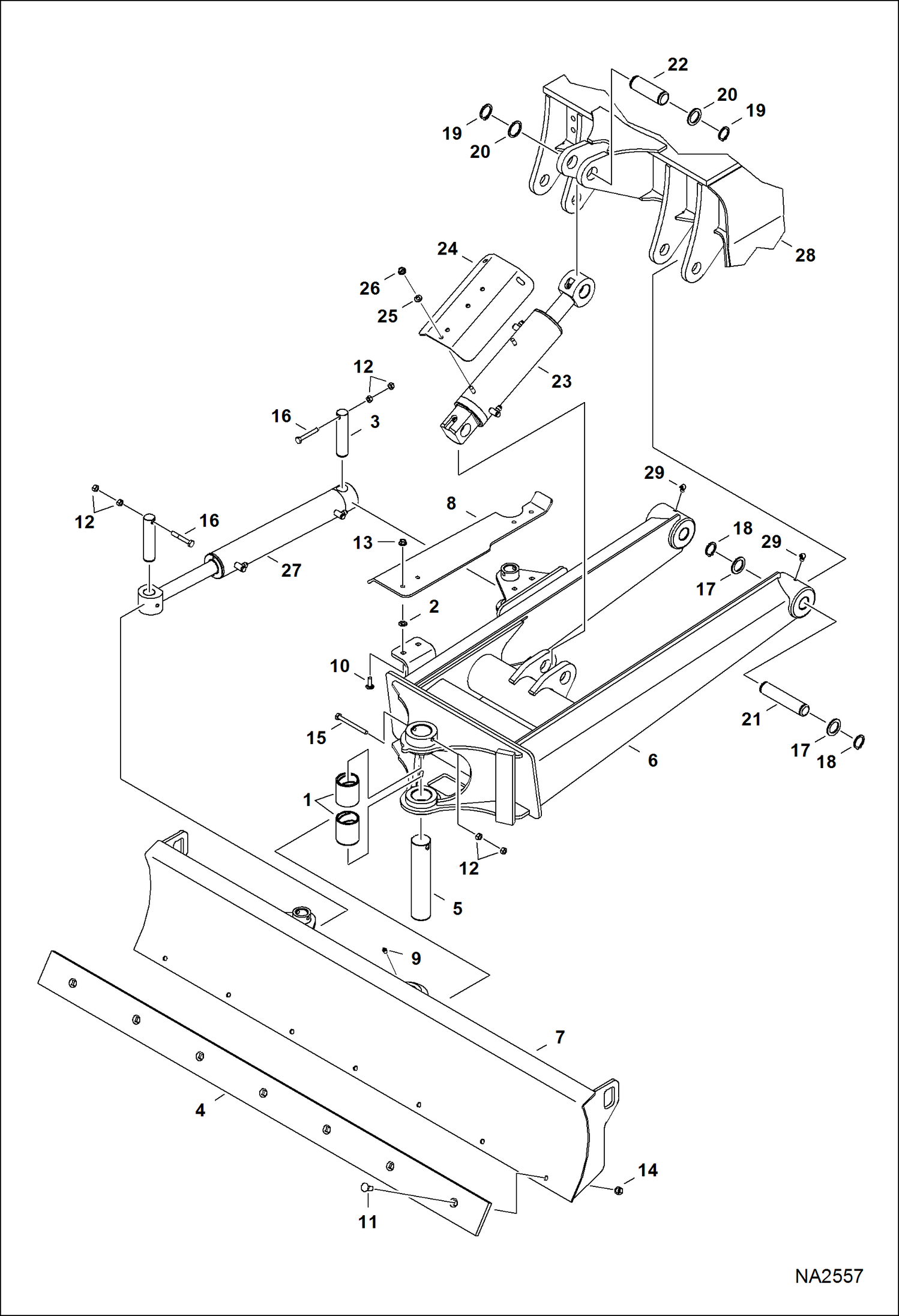

Запчасти Bobcat E42 ANGLE BLADE WORK EQUIPMENT

1

6597689

BUSHING, PRESS FIT

2

6674264

RETAINER NUT

3

6702935

PIN, PIVOT

4

7142271

EDGE, CUTTING 7 hole

4

7208977

EDGE, CUTTING 9 hole

5

7142514

PIN, PIVOT

6

7142551

FRAME, BLADE ANGLE EXC

7

BLADE, ANGLE EXC NLA - 7 hole - Order 7213066 blade and Ref. 4 (7208977 cutting edge) - Was 7198566 - A

7

7213066

BLADE, ANGLE EXC 9 hole

8

7153741

GUARD, CYLINDER

9

10H25

FITTING, GREASE 5

10

28CM1030

BOLT

11

39C820

BOLT

12

4DM10

NUT

13

51DM10

NUT

14

63D8

NUT

15

7CM10110

SCREW

16

7CM1070

BOLT

17

6534111

WASHER

18

6534154

RING

19

6665618

RING

20

6666549

WASHER

21

7142311

PIN, PIVOT

22

7142313

PIN, PIVOT

23

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3923

24

7188746

SHIELD, CYL

25

25E17

WASHER 5

26

43DM10

NUT

27

CYLINDER, ANGLE BLADE See Illustration ANGLE BLADE CYLINDER/ PE3922

28

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA2537

29

12H15

FITTING, GREASE 5
