Запчасти Bobcat E42 BUCKET LINK (Pin-On X-Change) WORK EQUIPMENT

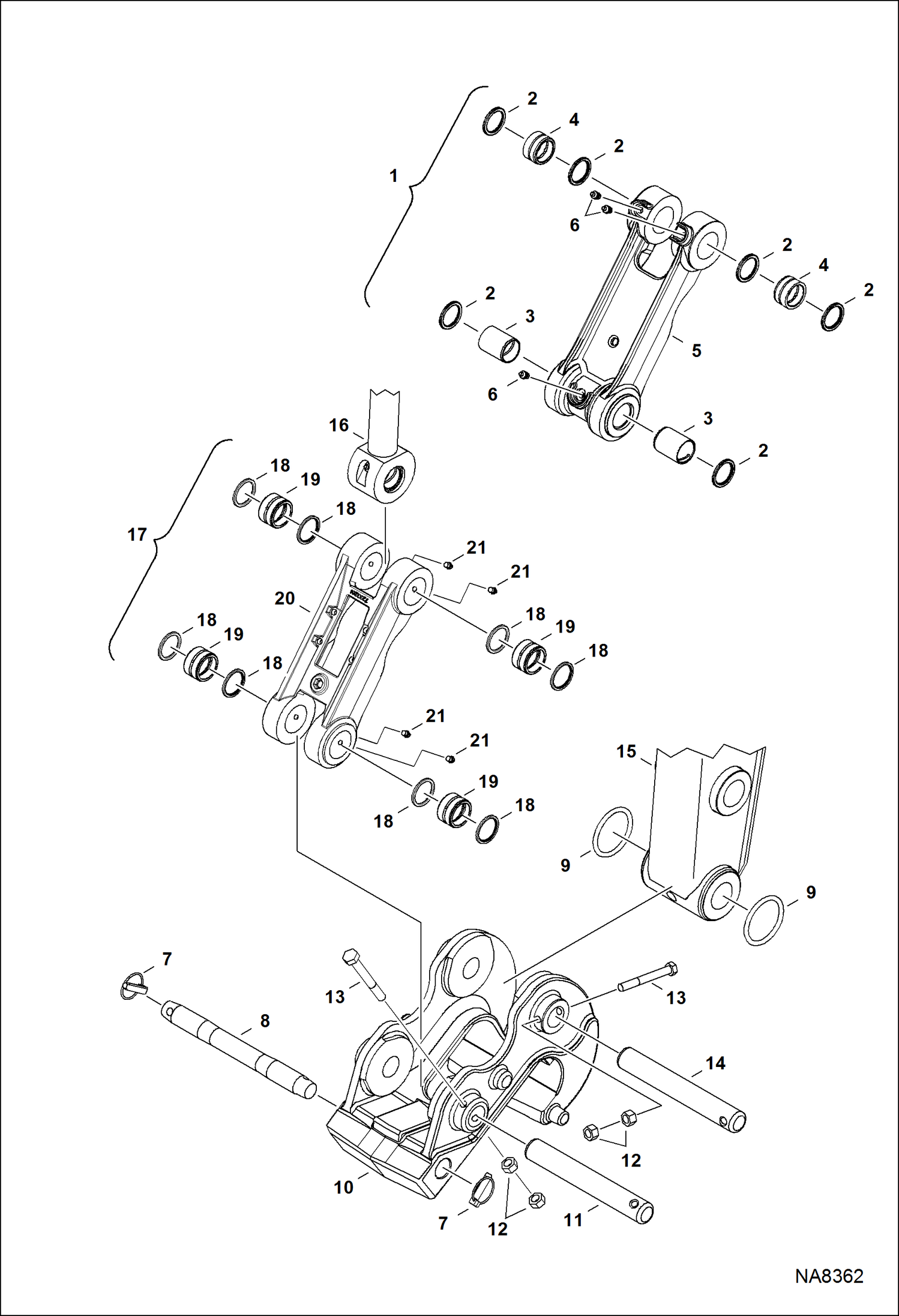

Схема запчастей Bobcat E42 - BUCKET LINK (Pin-On X-Change) WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

LINK, ASSY NLA - Order Ref 17 - Was 7165792 - A

1

LINK, HYD X-CHANGE See Illustration X-CHANGE/ NA2583

2

6669287

SEAL

3

7172745

BUSHING, WEAR

4

7173292

BUSHING, WEAR

5

LINK NLA - Order Ref. 1

6

10H25

FITTING, GREASE 5

7

6560382

PIN, LOCK

8

7137214

PIN

9

7143561

O-RING 3.23'' (81,9 mm) ID

10

7204274

X-CHANGE, PIN-ON

10

X-CHANGE, HYD See Illustration X-CHANGE/ NA2581

11

7143036

PIN, PIVOT

12

43DM10

NUT

13

7CM12100

BOLT

14

7143036

PIN, PIVOT 10.97'' (278.7 mm) long

14

7166241

PIN, PIVOT 17.2'' (436 mm) long - see clamp attachment

15

ARM See Illustration ARM/ NA2548

16

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ NA1938

17

7236787

LINK, ASSY Ref. 18-21

18

6669287

SEAL

19

7173292

BUSHING, WEAR

20

LINK NLA - Order Ref. 17

21

10H25

FITTING, GREASE 5

Выбрано товаров: 24
