Запчасти Bobcat E42 TRACK TENSIONER UNDERCARRIAGE

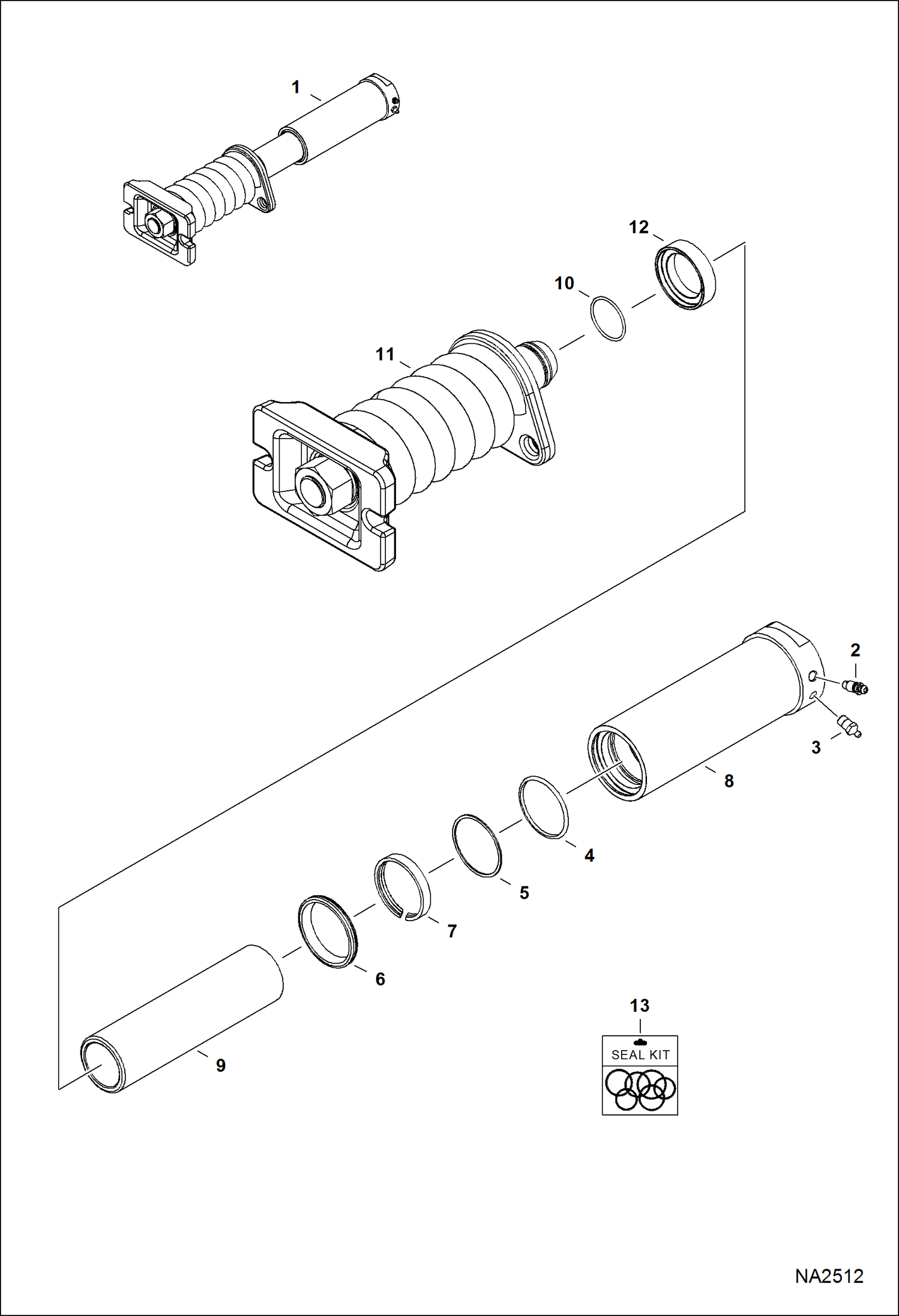

Схема запчастей Bobcat E42 - TRACK TENSIONER UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

7181324

TENSIONER, TRACK ASSY Ref. 2-11 - Also Order Ref. 12 for steel tracks

2

6645812

SCREW, BLEED

3

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

4

6672338

O-RING

5

6685154

RING, BACK-UP

6

6686968

SEAL, WIPER ROD

7

6688839

WEAR RING 9,53 mm (0.38'') wide

8

7180324

TUBE, GREASE

9

7135356

SHAFT, CHROME

10

25K30118

O RING 10

11

SPRING ASSY NLA - Order Ref. 1

12

7164410

SPACER Use for steel tracks only - not included in Ref. 1

13

7163219

KIT, SEAL Ref. 4-7

Выбрано товаров: 13
