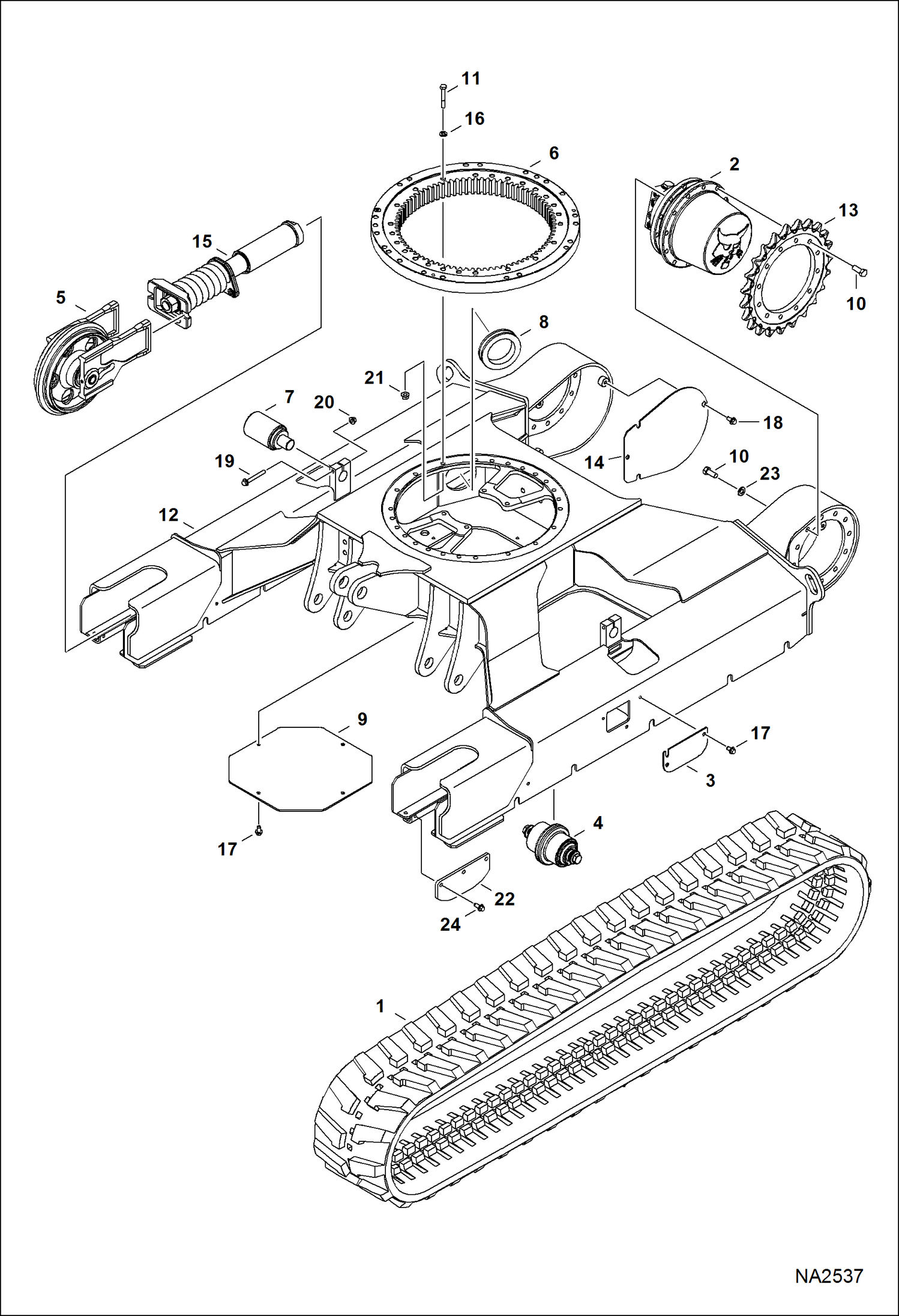

Запчасти Bobcat E42 UNDERCARRIAGE UNDERCARRIAGE

1

TRACK, RUBBER See Illustration TRACKS/ NA6193

1

TRACK, STEEL See Illustration TRACKS/ NA2026

2

TRAVEL MOTOR See Illustration TRAVEL MOTOR/ D2403

3

6596723

COVER

4

ROLLER See Illustration TRACK ROLLER/ NA2024

5

IDLER ASSY See Illustration FRONT IDLER/ PE1801

6

6692961

RING, SLEW See Illustration UPPERSTRUCTURE/ NA2536

7

7020867

ROLLER, TRACK See Illustration TRACK ROLLER/ NA2025 Was 6692966 - B

8

7127210

GROMMET

9

7142236

COVER, ACCESS

10

55CM1435

SCREW

11

7CM1290

SCREW

12

7142549

UNDERCARRIAGE

13

7199007

SPROCKET, MACHINED Was 7162768SUB - A

14

7167108

COVER, MOTOR

15

TRACK TENSIONER See Illustration TRACK TENSIONER/ NA2512

16

18EM1224

WASHER

17

26GM10020

BOLT

18

29CM1020

BOLT

19

29CM1080

SCREW

20

51DM10

NUT

21

51DM12

NUT

22

6596396

PLATE guide - steel track

23

18EM1426

WASHER

24

26GM10025

SCREW
