Запчасти Bobcat E42 REAR DOOR MAIN FRAME

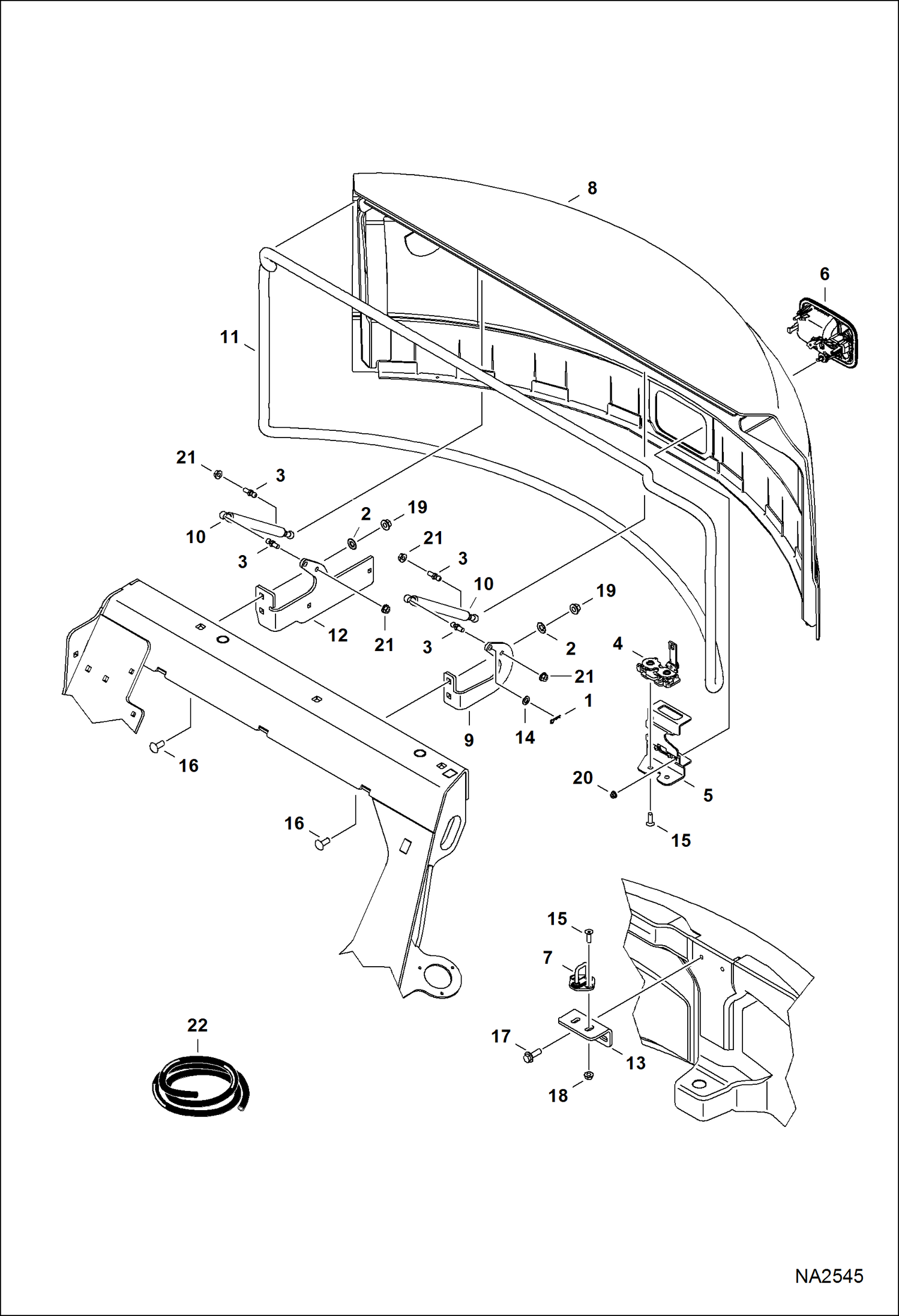

Схема запчастей Bobcat E42 - REAR DOOR MAIN FRAME

Артикул

Название

Примечание

Количество

1

6513495

COTTER PIN

2

6674264

RETAINER NUT

3

7170322

STUD, BALL JOINT

4

7170871

LATCH, DOOR REAR

5

7170872

BRACKET, LATCH

6

7170873

LATCH, HANDLE

7

7170944

STRIKER, LATCH DOOR

8

7175332

REAR DOOR

9

7177920

HINGE, DOOR REAR

10

7177996

GAS SPRING

11

SEAL, BULB NLA - 146'' (3708 mm) long - Order Ref. 22

12

7182174

HINGE, DOOR REAR

13

7182359

BRACKET

14

15EM100

WASHER

15

23GM825

SCREW

16

28CM1025

BOLT

17

29CM1030

BOLT

18

43DM8

NUT

19

51DM10

NUT

20

51DM6

NUT

21

51DM8

NUT

22

7160901

SEAL, BULB bulk - sold per foot

Выбрано товаров: 22
