Запчасти Bobcat E42 RH COVER (W/ Link Hold Open) (S/N AG3412477 - 13999) MAIN FRAME

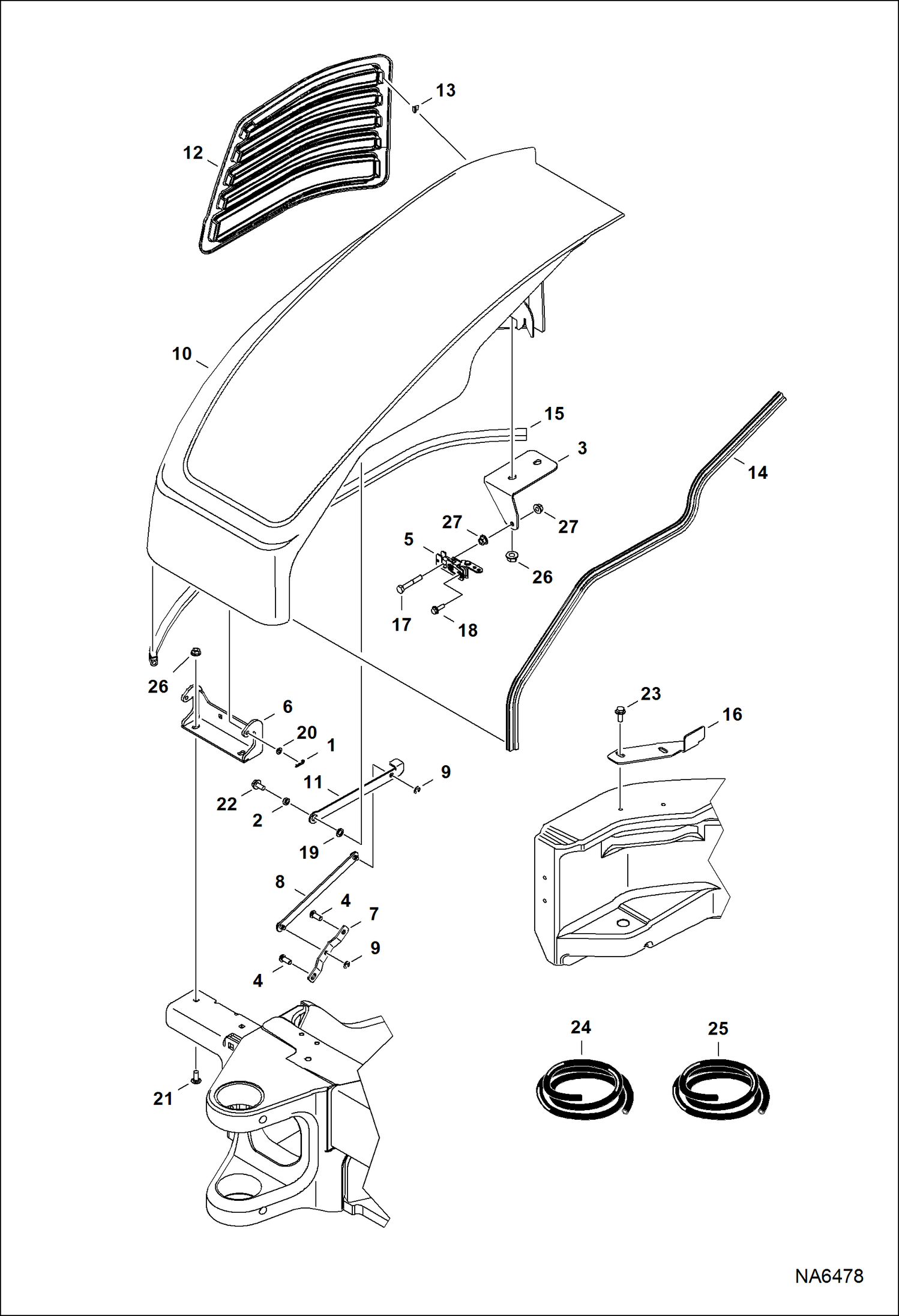

Схема запчастей Bobcat E42 - RH COVER (W/ Link Hold Open) (S/N AG3412477 - 13999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6513495

COTTER PIN

2

6810385

BUSHING

3

7191716

BRACKET, LATCH

4

6817769

BOLT

5

7206615

LATCH, COVER

6

7148098

HINGE, COVER

7

7165414

BRACKET

8

7170445

LINK

9

7170446

PIN, RETAINER

10

COVER, RH See BTI425 - Was 7214097 - A

11

7176094

LINK

12

7177100

SCREEN, OUTER

13

7178670

CLIP

14

SEAL, BULB NLA - 45.7'' (1162 mm) long - Order Ref. 24

15

SEAL, BULB NLA - 55.5'' (1410 mm) long - Order Ref. 25

16

7184225

BRACKET

17

1CM850

BOLT

18

29CM620

SCREW

19

15EM120

WASHER

20

15EM80

WASHER

21

28CM1025

BOLT

22

29CM1020

BOLT

23

29CM1025

BOLT

24

7160901

SEAL, BULB bulk - sold per foot

25

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

26

43DM10

NUT

27

43DM8

NUT

Выбрано товаров: 27
