Запчасти Bobcat E42 RH COVER (W/ Link Hold Open) (S/N AG3411001 - 12476) MAIN FRAME

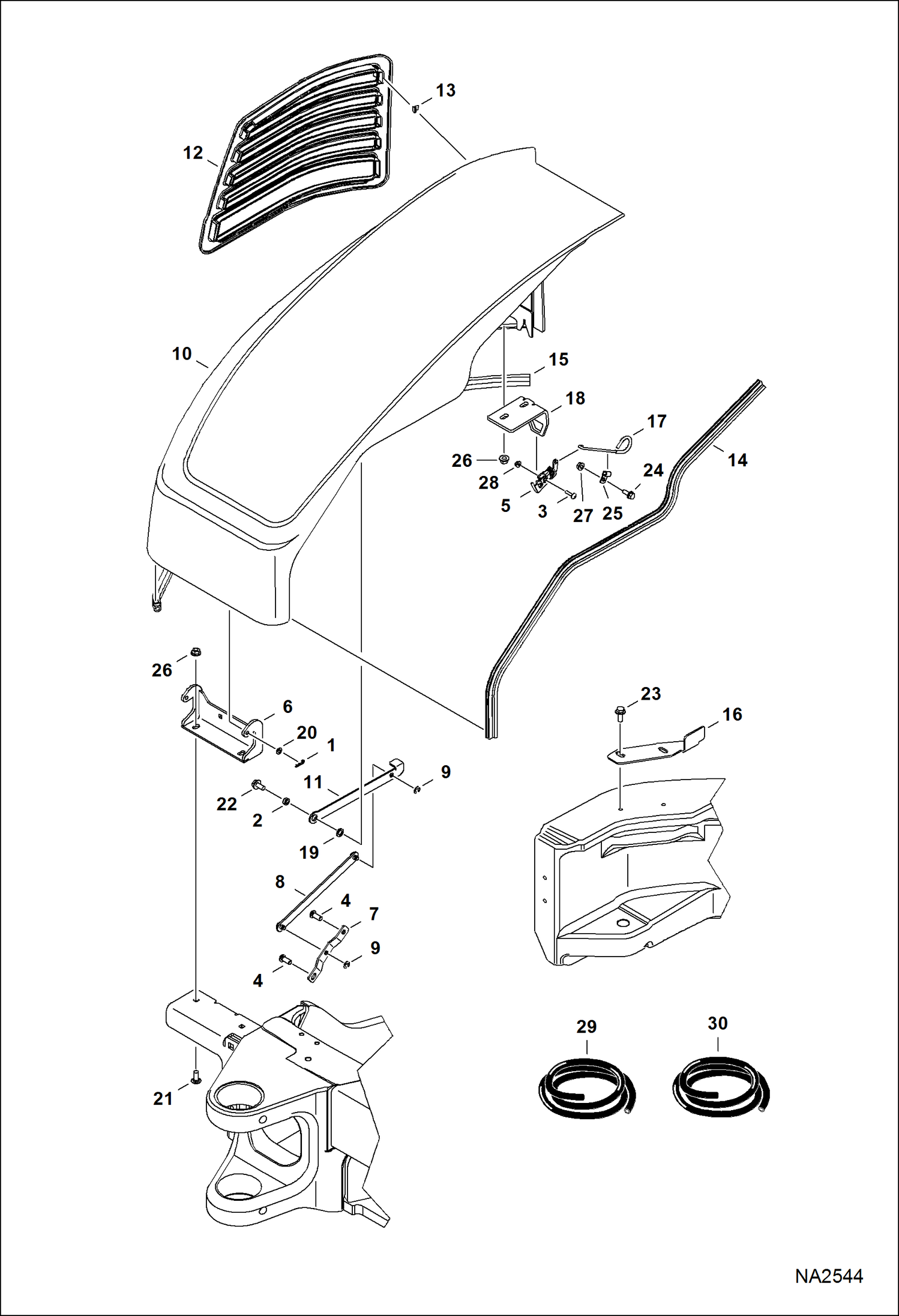

Схема запчастей Bobcat E42 - RH COVER (W/ Link Hold Open) (S/N AG3411001 - 12476) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6513495

COTTER PIN

2

6810385

BUSHING

3

6816193

SCREW

4

6817769

BOLT

5

7000993

LATCH, REAR DOOR

6

7148098

HINGE, COVER

7

7165414

BRACKET

8

7170445

LINK

9

7170446

PIN, RETAINER

10

COVER, RH See BTI425 - Was 7025327 - A

11

7176094

LINK

12

7177100

SCREEN, OUTER

13

7178670

CLIP

14

SEAL, BULB NLA - 45.7'' (1162 mm) long - Order Ref. 29

15

SEAL, BULB NLA - 55.5'' (1410 mm) long - Order Ref. 30

16

7184225

BRACKET

17

7184264

LATCH, HANDLE

18

7185351

BRACKET

19

15EM120

WASHER

20

15EM80

WASHER

21

28CM1025

BOLT

22

29CM1020

BOLT

23

29CM1025

BOLT

24

29CM820

SCREW

25

30H19

CLIP

26

43DM10

NUT

27

43DM8

NUT

28

51DM6

NUT Was 53DM6 - B,D

29

7160901

SEAL, BULB bulk - sold per foot

30

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

Выбрано товаров: 30
