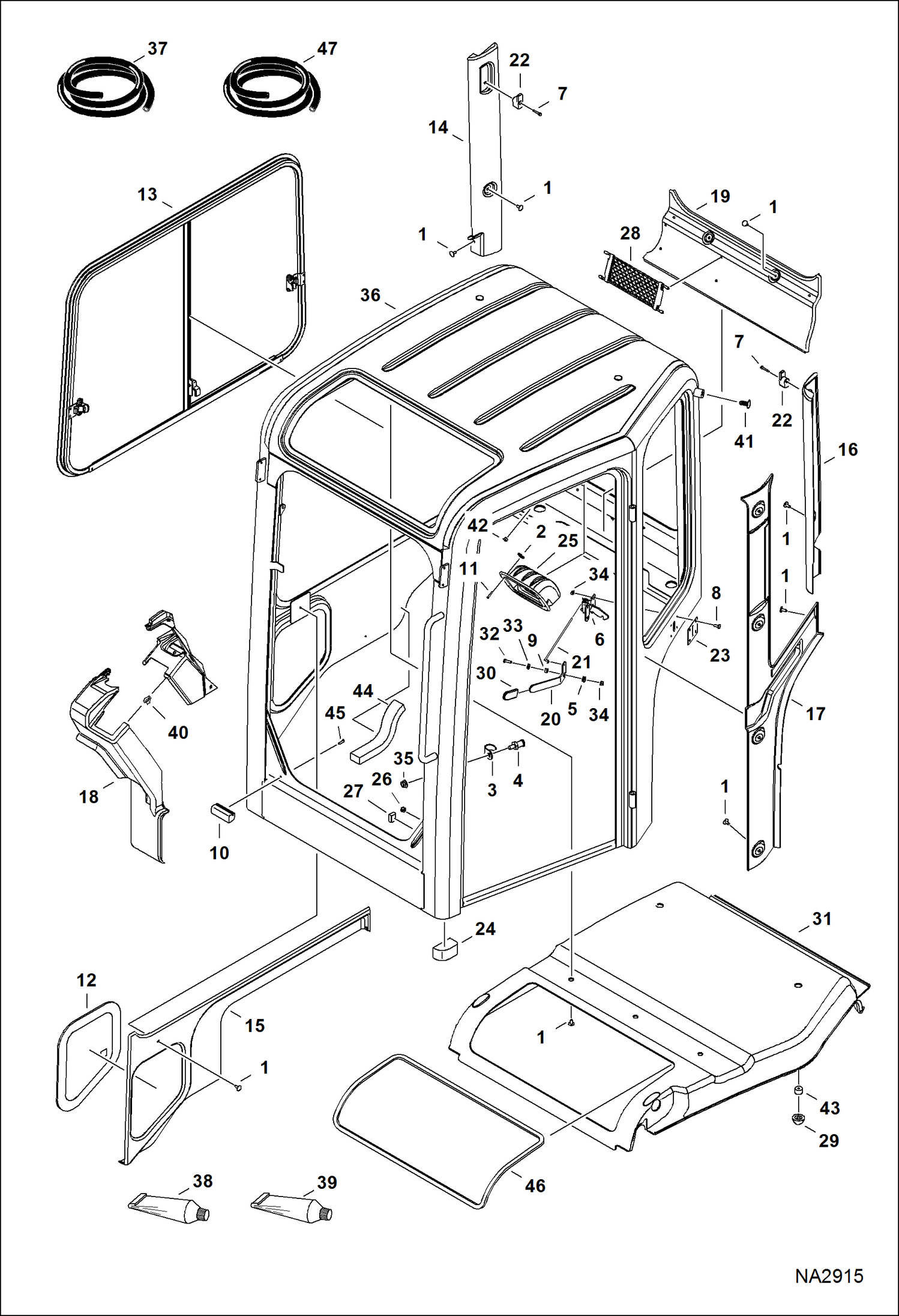

Запчасти Bobcat E42 OPERATOR CAB (RH Window & Insulation) MAIN FRAME

1

7182464

CLIP plastic tree

2

6685744

CLIP

3

6688999

STRIKER GUARD

4

6689007

STRIKER BOLT

5

6698186

BEARING, CLIP

6

7013663

LATCH, HOLD OPEN Was 7012677 - A

7

6808424

SCREW

8

6803202

SCREW

9

7155449

SPACER

10

7174507

MOUNT, WINDOW rubber

11

7163690

SCREW

12

7166468

WINDOW, CAB SIDE FIXED

13

7237363

WINDOW, CAB SLIDING See Illustration OPERATOR CAB/ NA2283 Was 7166474 - A

14

7167095

PANEL, RH if equipped

15

7167096

PANEL, RH

16

7167097

PANEL, LH if equipped

17

7167098

PANEL, LH

18

7168404

COVER, RH

19

7169993

PANEL, REAR

20

7170488

LEVER

21

7189242

LINK Was 7170489 - D

22

7170632

HOOK, COAT if equipped

23

7170799

SEAL, LATCH

24

7180618

SEAL, CAB

25

7173287

HOLDER

26

7174944

PLUG

27

SEAL NLA - 1'' (25 mm) long - Order Ref. 37

28

7176501

HOLDER, MANUAL

29

7178702

BUMPER, RUBBER

30

7178708

COVER, HANDLE

31

7179100

HEADLINER Use W/7166629 & 7171741

31

7232300

HEADLINER Use W/7229539 & 7232548

31

7232868

HEADLINER Use W/7229539 & 7225809

32

1CM620

BOLT

33

25E13

WASHER 5

34

51DM6

NUT

35

55D7

NUT

36

CAB, W/A See Illustration OPERATOR CAB/ NA2284 NLA - Was 7190136 - A

37

7174508

SEAL, BULK/FT bulk - sold per foot

38

6808882

ADHESIVE, URETHANE 10.5 fluid oz.

39

7102268

PRIMER 4.2 fluid oz.

40

7165333

CLIP

41

7012810

PLUG

42

6649949

PLUG

43

7182957

SPACER

44

7182732

INSULATION

45

7170114

SCREW
