Запчасти Bobcat E42 OPERATOR AREA & SEAT (Floor) (S/N AG3414001 & Above) MAIN FRAME

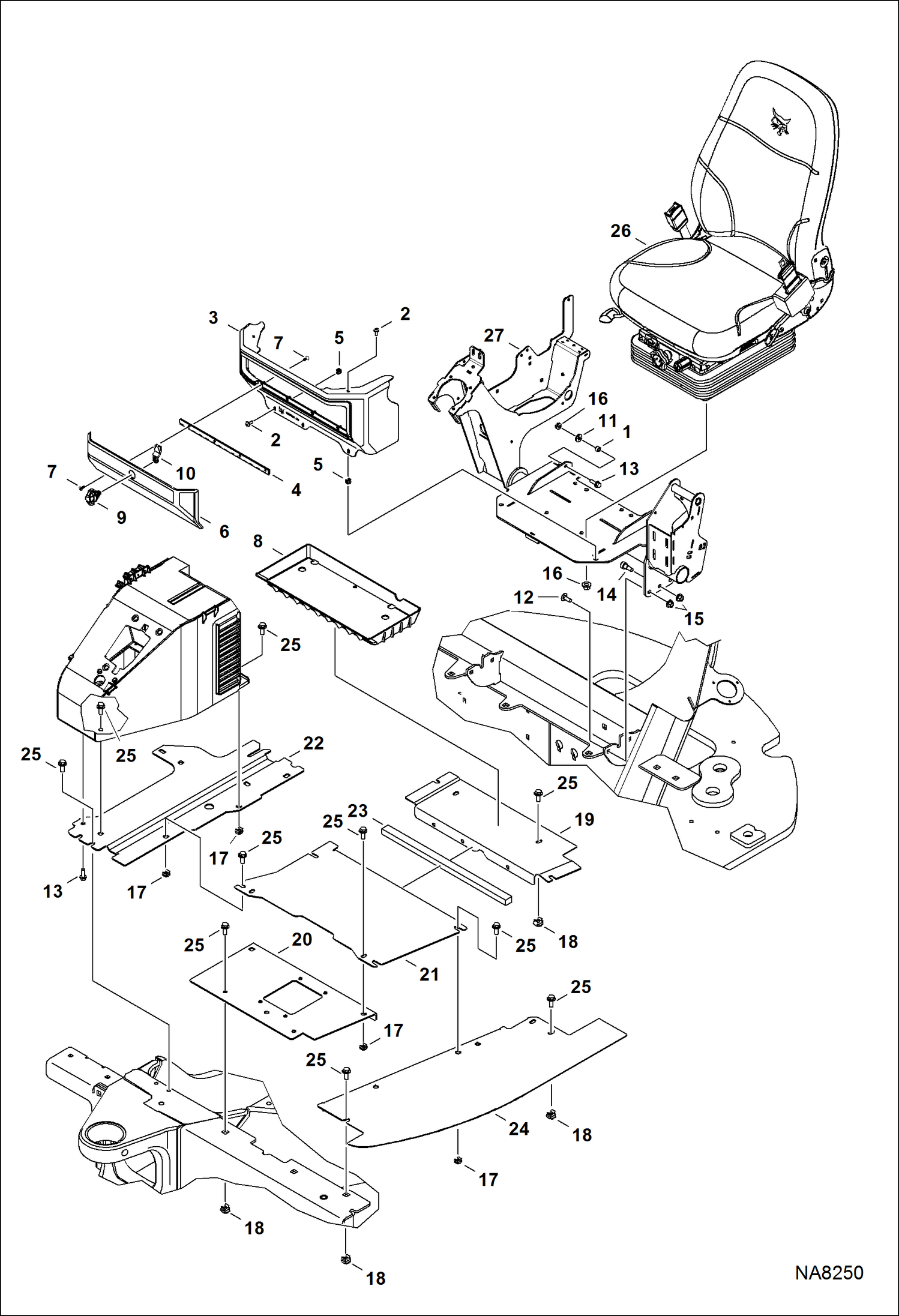

Схема запчастей Bobcat E42 - OPERATOR AREA & SEAT (Floor) (S/N AG3414001 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6802539

SPACER

2

6803202

SCREW

3

7170706

CONTAINER, STORAGE

4

7170709

HINGE, COVER

5

7170765

NUT

6

7188090

DOOR, STORAGE

7

7208340

SCREW

8

7236279

MAT, FLOOR

9

7239170

LATCH, HANDLE

10

7239274

CAM, LEVER

11

25E16

WSHR

12

28CM1025

BOLT

13

29CM825

BOLT

14

38CM1212

BOLT, SHOULDER

15

43DM10

NUT

16

51DM8

NUT

17

7155411

NUT

18

7155413

NUT

19

7226510

PLATE, FLOOR

20

7226511

PLATE, FLOOR

21

7226512

PLATE, FLOOR

22

7226513

PLATE, FLOOR

23

7226515

SEAL, FOAM

24

7226514

PLATE, FLOOR

25

29CM1025

BOLT

26

SEAT, OPERATOR SUSPENSION CLOTH See Illustration SEAT/ NA2287

27

CONTROLLER, JOYSTICK ASSY See Illustration CONTROL CONSOLE/ NA8248

Выбрано товаров: 27
