Запчасти Bobcat E42 X-CHANGE (Hydraulic) (Link, Swivel, X-Change) ACCESSORIES & OPTIONS

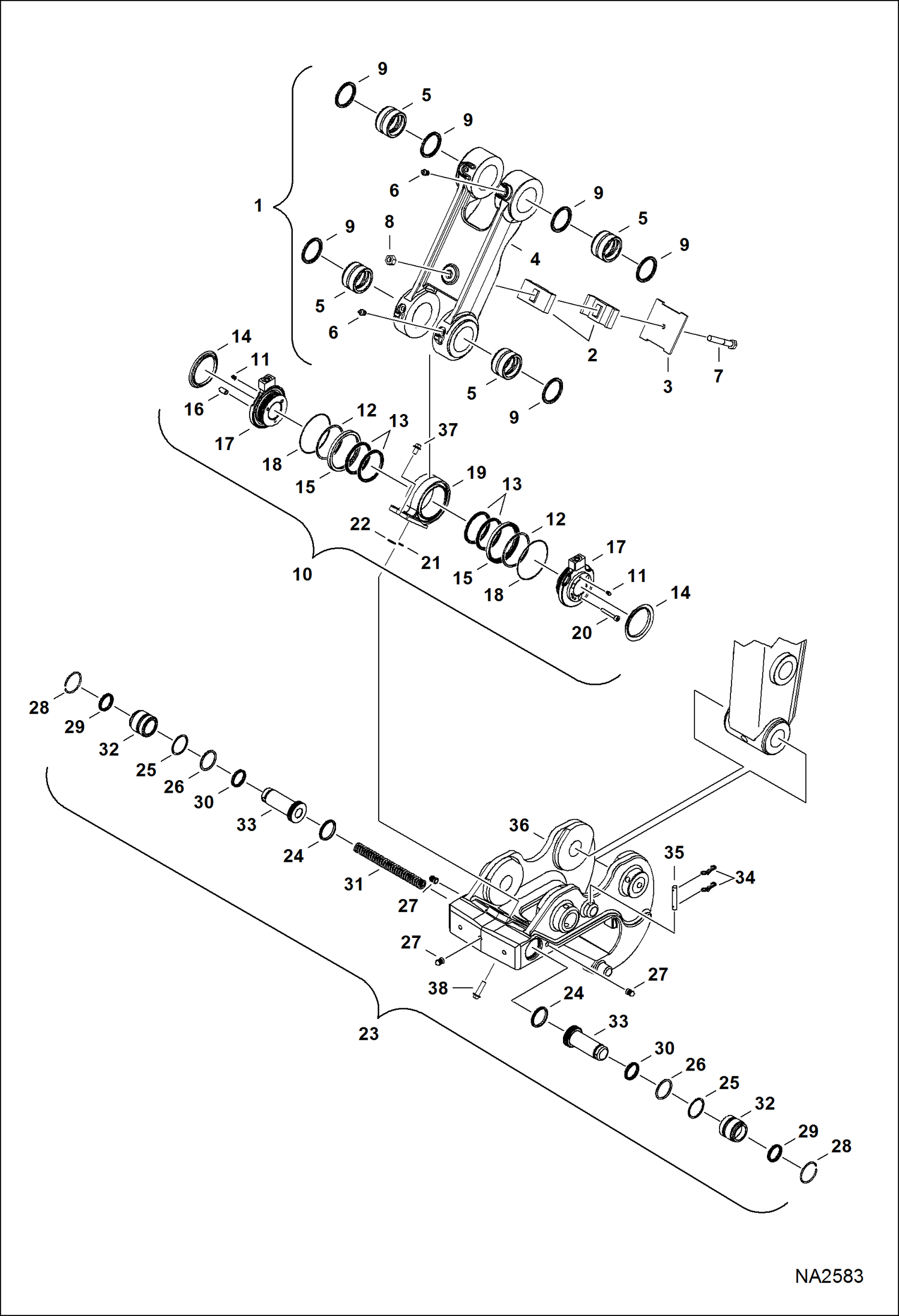

Схема запчастей Bobcat E42 - X-CHANGE (Hydraulic) (Link, Swivel, X-Change) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7165793

LINK, ASSY Ref. 2-9

2

7115813

BLOCK RUBBER

3

COVER, HOSE NLA - as shown W/tabbed corners - Order (1) each of 7226712 hose cover and Ref. 7 (59CM1060 screw) - Was 7115814 - A

3

7226712

COVER, HOSE not shown - W/notched corners

4

LINK, HYD X-CHANGE NSS - Order Ref. 1

5

7173292

BUSHING, WEAR

6

10H25

FITTING, GREASE 5

7

59CM1060

SCREW Was 1CM1055 - B

8

4DM10

NUT

9

6669287

SEAL

10

7172955

SWIVEL, HYD ASSY Ref. 11-22

11

6686678

PLUG

12

6686681

RING

13

6688745

SEAL

14

6688850

SEAL

15

6689565

SEAL

16

6816599

NUT

17

7120821

SWIVEL

18

7121281

O-RING

19

SWIVEL NLA - Order Ref. 10 - Was 7172954 - A

20

3GM645

SCREW

21

58K10

O RING 10

22

58K015

O-RING 10

23

7205987

X-CHANGE, HYD Ref, 10, 24-33, & 36-38 - Was 7165796 - C

24

6680402

SEAL

25

6680998

RING

26

6683233

O-RING

27

6686679

PLUG

28

6686682

RING

29

6688634

SEAL PIN

30

6690161

SEAL PIN

31

6815592

SPRING

32

7114212

HEAD

33

7126140

PISTON, PIN W/retainer pin hole

33

7221582

PISTON, PIN W/O retainer pin hole

34

7130431

CLIP if equipped

35

7132119

PIN if equipped

36

X-CHANGE, HYD NSS - Order Ref. 23

37

29CM1020

BOLT

38

29CM1030

BOLT

39

7236786

LINK, ASSY

40

7233262

LINK, BUCKET MACHINED

41

6669287

SEAL

Выбрано товаров: 43
