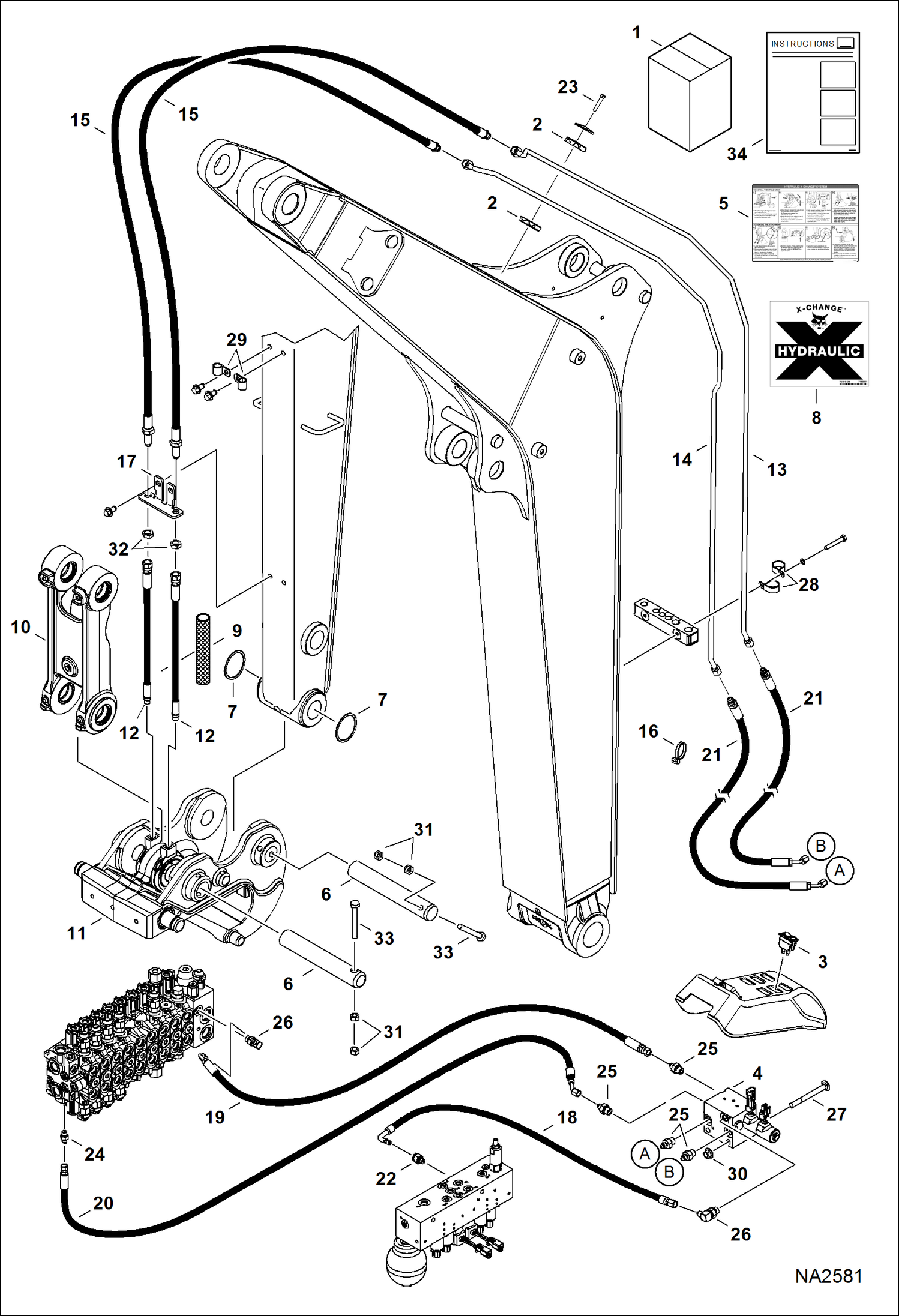

Запчасти Bobcat E42 X-CHANGE (Hydraulic) (Kit) ACCESSORIES & OPTIONS

1

7185283

KIT, X-CHANGE HYD Ref. 2-34

2

6664381

CLAMP

3

6688667

SWITCH

4

7008786

MANIFOLD, HYD ASSY See Illustration X-CHANGE/ NA2303

5

7134587

DECAL, X-CHANGE using hydraulic X-Change W/retainer pin - text - not in kit

5

7220131

DECAL, X-CHANGE using hydraulic X-Change W/O retainer pin - text

5

7220130

DECAL, X-CHANGE using hydraulic X-Change W/O retainer pin - No-text

6

7143036

PIN, PIVOT

7

7143561

O-RING

8

7160881

DECAL, X-CHANGE

9

7161761

GUARD, FABRIC

10

7165793

LINK, ASSY See Illustration X-CHANGE/ NA2583

11

7205987

X-CHANGE, HYD See Illustration X-CHANGE/ NA2583 - Was 7165796 - C

12

7165958

HOSE, HYD ASSY

13

7167211

TUBELINE, HYD

14

7167212

TUBELINE, HYD

15

7167230

HOSE, HYD ASSY for standard arm

15

7167231

HOSE, HYD ASSY for long arm

16

6624289

STRAP, TIE

17

7167535

BRACKET

18

7177114

HOSE, HYD

19

7177166

HOSE, HYD

20

7199544

HOSE, HYD Was 7177168 - A

21

7177732

HOSE, HYD

22

10L0604

FITTING, HYD CONNECTOR

22

78K6

O'RING

22

7011053

CLIP

23

59CM870

BOLT, FLANGE

24

15KB0404

FTG HYD S Connector

24

79K4

O RING 10

25

15KB0406

FTG HYD S CONNECTOR

25

79K6

O RING 10

26

17KB0406

FITTING, HYD ELBOW

26

79K6

O RING 10

27

28CM10100

BOLT

28

30H22

CLIP

29

30H35

CLAMP 10

30

43DM10

NUT

31

4DM12

NUT HEX

32

86F5

NUT

33

7CM12100

BOLT

34

6989502

INSTRUCTIONS
