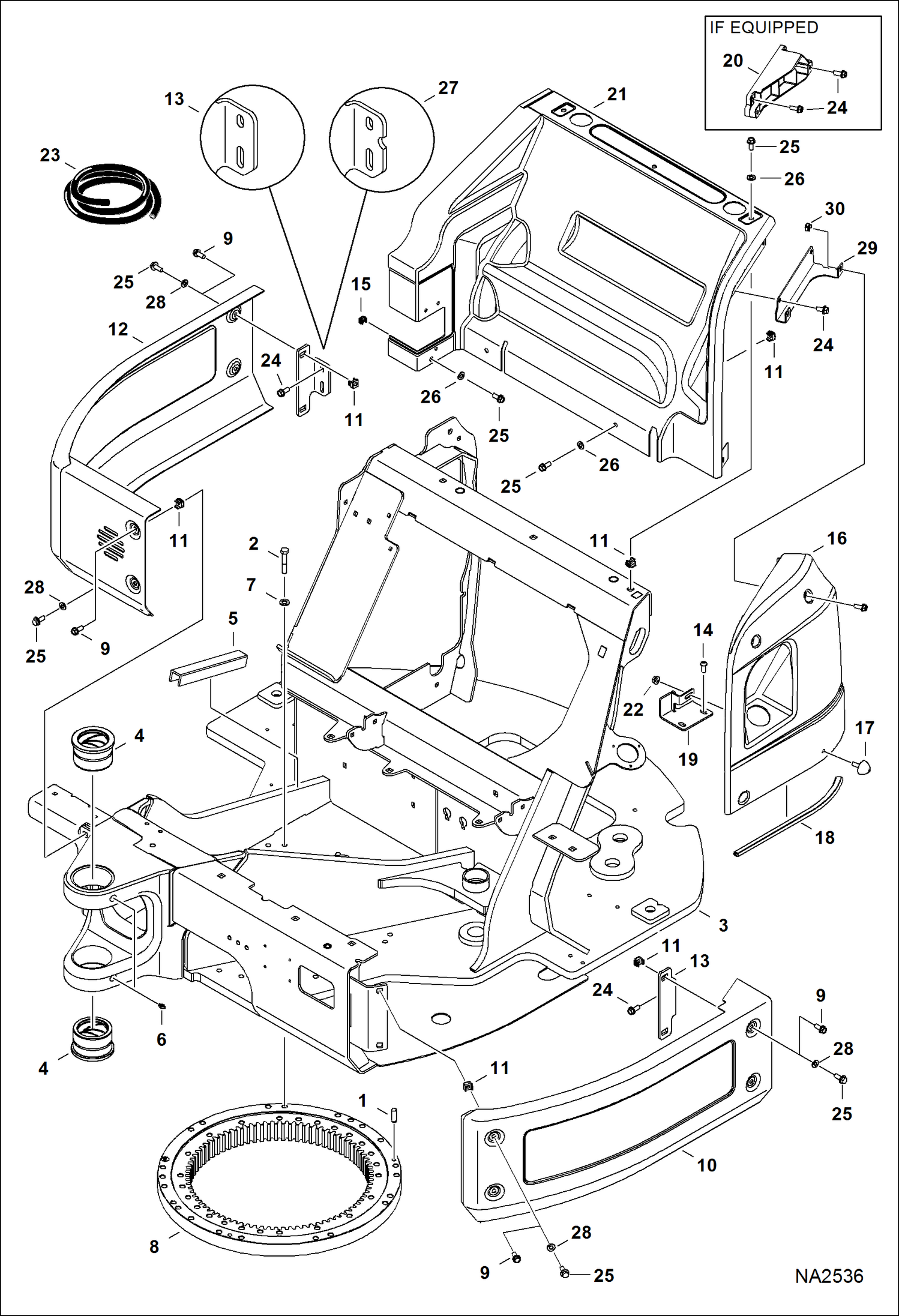

Запчасти Bobcat E42 UPPERSTRUCTURE MAIN FRAME

1

7171260

PIN, PARALLEL

2

7171918

SCREW

3

7231073

UPPERSTRUCTURE Was 7175146 - A

4

BUSHING, PIVOT See Illustration BOOM SWING FRAME/ NA2558 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of 7198542 pin, 7198707 bushing, & 7196719 bushing - Was

4

7198707

BUSHING, PIVOT

5

7185431

GROMMET

6

10H25

FITTING, GREASE 5

7

18EM1224

WASHER

8

6692961

RING, SLEW See Illustration UNDERCARRIAGE/ NA2537

9

7009798

SCREW

10

7148372

CHANNEL, LH

11

7155413

NUT

12

7168598

COVER, RH

13

7177373

BRACKET, COVER SIDE

14

6817769

BOLT

15

7155411

NUT

16

7175138

COVER, LH

17

7178703

BUMPER, RUBBER

18

SEAL, BULB NLA - 18'' (457 mm) long - Order Ref. 23

19

7220347

COVER, LH Was 7182491 - A

20

7183989

BRACKET

21

7187133

PANEL, ENGINE

22

43DM10

NUT

23

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

24

29CM1025

BOLT Was 7009798 - B

25

29CM1025

BOLT Was 1CM1025 - B

26

15EM100

WASHER Used W/bolt W/O flange - Was 1EM100

27

7205949

BRACKET, COVER SIDE W/identifier notch and unique slot location - replaces bracket W/notch for proper alignment of RH cover with some counterweights
