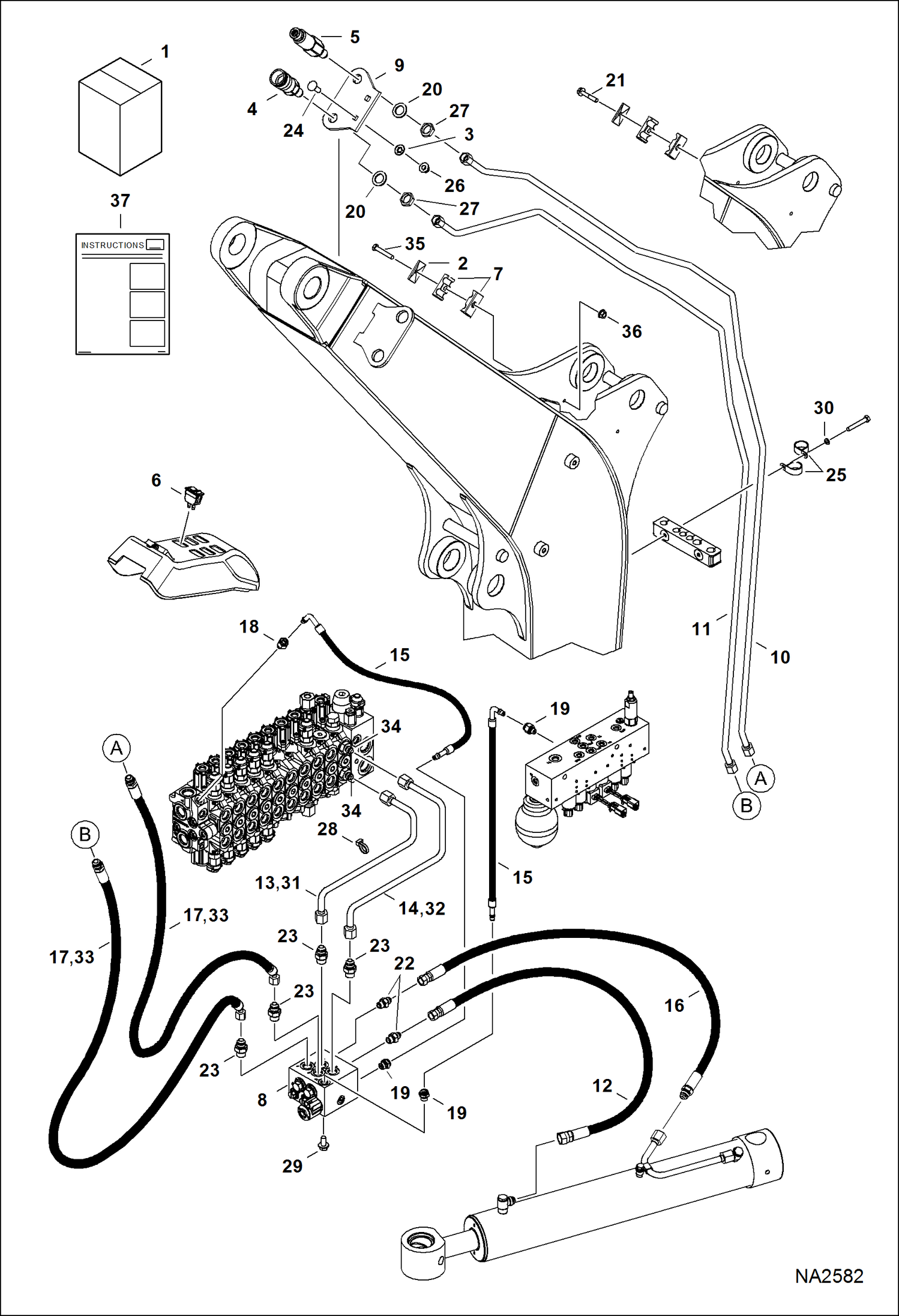

Запчасти Bobcat E42 SECONDARY AUXILIARY KIT ACCESSORIES & OPTIONS

1

7185285

KIT, AUX SECONDARY Ref. 2-29

2

6652521

PLATE

3

6674264

RETAINER NUT

4

6676559

COUPLER, FF FEMALE 1/2''

5

6676560

COUPLER, FF MALE 1/2''

6

6679906

SWITCH

7

6701892

CLAMP

8

7010128

VALVE, AUX SECONDARY See Illustration SECONDARY AUXILARY VALVE/ NA2279

9

7198272

PLATE, MOUNT COUPLER bolt-on - Was 7153112 - A

10

7167213

TUBELINE, HYD

11

7167214

TUBELINE, HYD

12

7176115

HOSE, HYD

13

7176762

TUBELINE, HYD

13

7201857

TUBELINE, HYD

14

7176763

TUBELINE, HYD

14

7201856

TUBELINE, HYD

15

7176993

HOSE, HYD

16

7177142

HOSE, HYD

17

7177148

HOSE, HYD

18

10L0604

FITTING, HYD CONNECTOR

18

78K4

O'RING

18

7011053

CLIP

19

10L0606

FITTING, HYD CONNECTOR

19

78K6

O'RING

19

7011053

CLIP

20

15EM200

WASHERS

21

59CM845

BOLT, FLANGE

22

15KB0606

FITTING, HYD CONNECTOR

22

79K6

O RING 10

23

28CM1030

BOLT

24

30H30

CLAMP

25

51DM10

NUT

26

86F6

NUT

27

6624289

STRAP, TIE

28

29CM1020

BOLT

29

6989503

INSTRUCTIONS
