Запчасти Bobcat E42 PIN GRABBER QUICK COUPLER (Coupler and Link) ACCESSORIES & OPTIONS

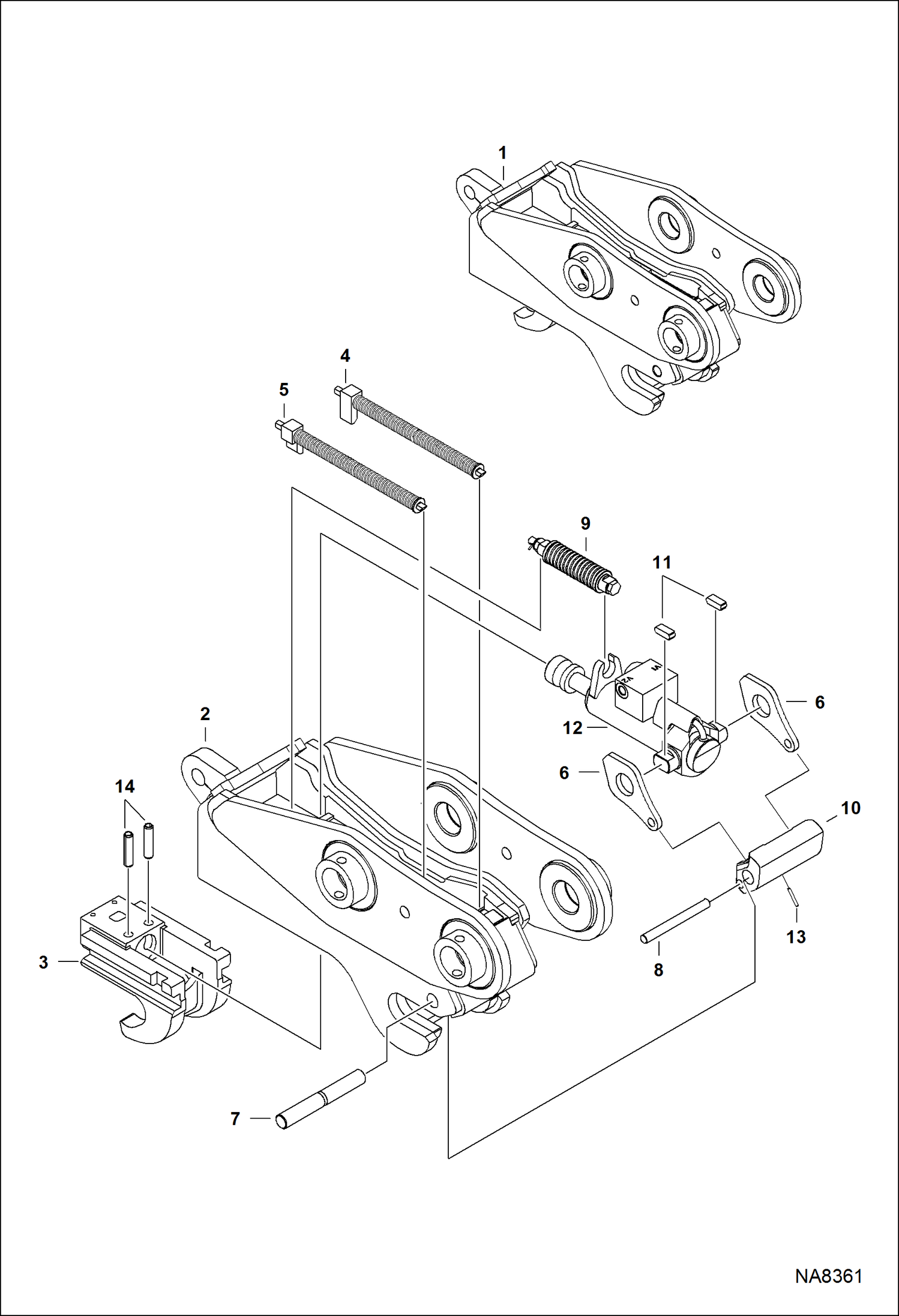

Схема запчастей Bobcat E42 - PIN GRABBER QUICK COUPLER (Coupler and Link) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7219626

COUPLER, PIN GRABBER Ref. 2-13

2

7244324

FRAME

3

7031500

WEDGE

4

7031501

SPRING GUIDE ASSY

5

7031502

SPRING GUIDE ASSY

6

7031503

LINK

7

7031504

PIN, LOCK

8

7031505

PIN, LOCK

9

7031506

SPRING, DETENT

10

7031507

LOCK

11

7031508

STOP

12

7031509

CYLINDER, HYD CLAMP

13

7031510

PIN, ROLL

14

7031511

PIN, ROLL

Выбрано товаров: 14
