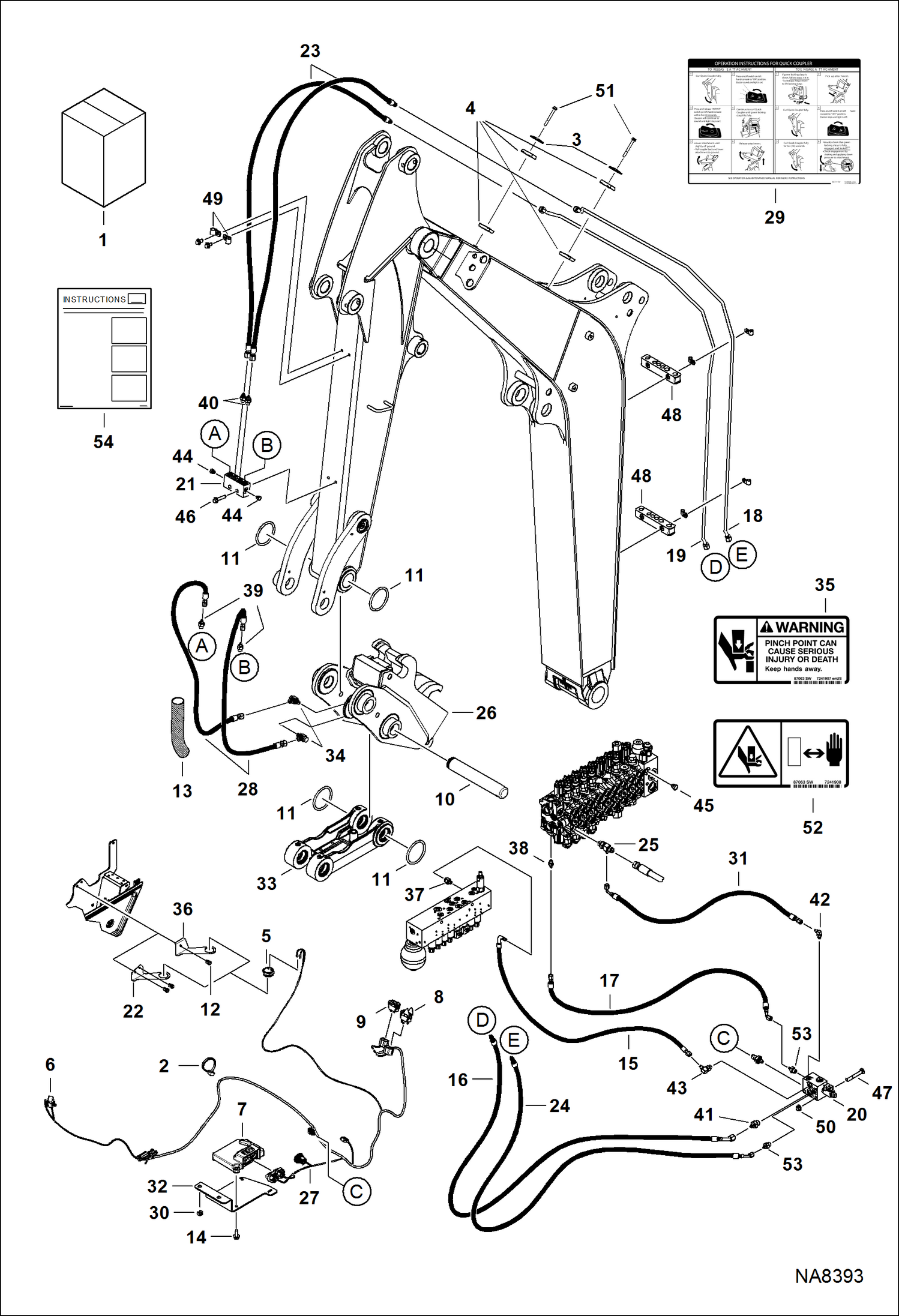

Запчасти Bobcat E42 PIN GRABBER QUICK COUPLER (Kit) ACCESSORIES & OPTIONS

1

7242632

KIT, PIN GRABBER QUICK COUPLER Ref. 2-53

2

6624289

STRAP, TIE

3

6652521

PLATE

4

6664381

CLAMP

5

6675705

ALARM

6

7025582

SENSOR, PRESS OIL HYD

7

7028231

CONTROLLER, ACD

8

7028233

SWITCH, ROCKER

9

7028234

SWITCH, MOMENTARY

10

7143036

PIN, PIVOT

11

7143561

O-RING

12

7160383

RIVET, BIRD CAGE

13

7161761

GUARD, FABRIC

14

7168429

BOLT, CONTROLLER

15

7177114

HOSE, HYD

16

7177732

HOSE, HYD

17

7199544

HOSE, HYD

18

7167211

TUBELINE, HYD

19

7167212

TUBELINE, HYD

20

7214139

MANIFOLD, HYD ASSY See Illustration PIN GRABBER QUICK COUPLER/ NA8346

21

7215834

MANIFOLD, COUPLER

22

7216237

BRACKET

23

7218669

HOSE, HYD short arm

23

7218670

HOSE, HYD long arm

24

7219313

HOSE, HYD

25

7219417

TEE

25

79K8

O RING 10

26

7219626

COUPLER, PIN GRABBER See Illustration PIN GRABBER QUICK COUPLER/ NA8361

27

7219627

HARNESS, COUPLER

28

7220005

HOSE, HYD

29

7220038

DECAL, INSTRUCTIONS

30

7220040

NUT, RETAINING

31

7220657

HOSE, HYD

32

7223074

BRACKET, CONTROLLER

33

7236787

LINK, ASSY See Illustration BUCKET LINK/ NA8362

34

7240898

FITTING, BANJO

35

7241907

DECAL, WARNING

36

7242731

BRACKET

37

10L0604

FITTING, HYD CONNECTOR

37

78K4

O'RING

38

15KB0404

FTG HYD S Connector

38

79K4

O RING 10

39

15KB0406

FTG HYD S CONNECTOR

39

79K6

O RING 10

40

15KB0606

FITTING, HYD CONNECTOR

40

79K6

O RING 10

41

15KB0608

FITTING, HYD CONNECTOR

41

79K8

O RING 10

42

17KB0404

FTG HYD ELBOW 90

42

79K4

O RING 10

43

17KB0406

FITTING, HYD ELBOW

43

79K6

O RING 10

44

24K3

PLUG

44

79K4

O RING 10

45

24K5

PLUG

45

79K6

O RING 10

46

26GM10050

BOLT, FLANGE

47

28CM1080

BOLT

48

30H22

CLIP

49

30H35

CLAMP 10

50

43DM10

NUT

51

59CM870

BOLT, FLANGE

52

7241908

DECAL, WARNING

53

6990989

INSTRUCTION INSTALL
